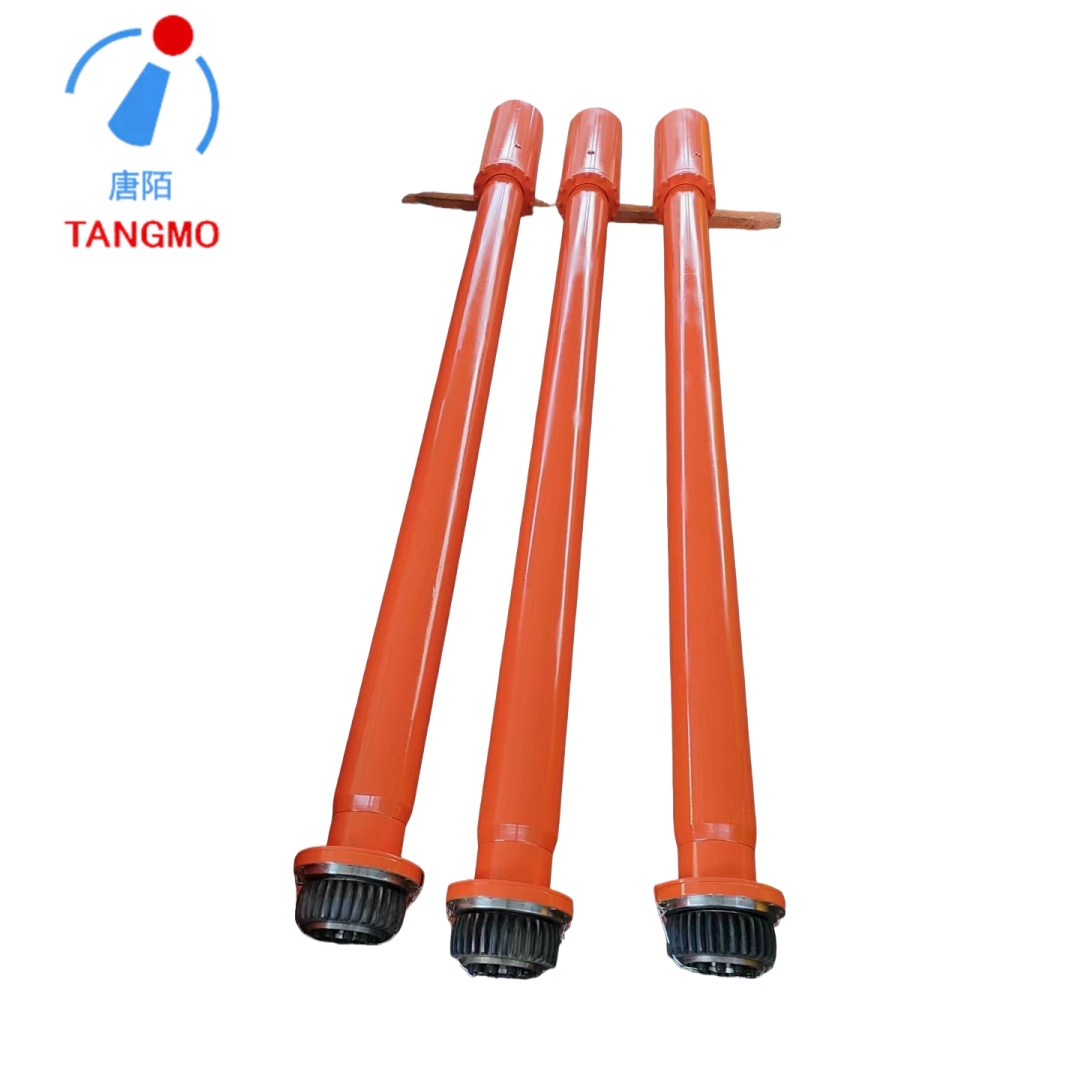

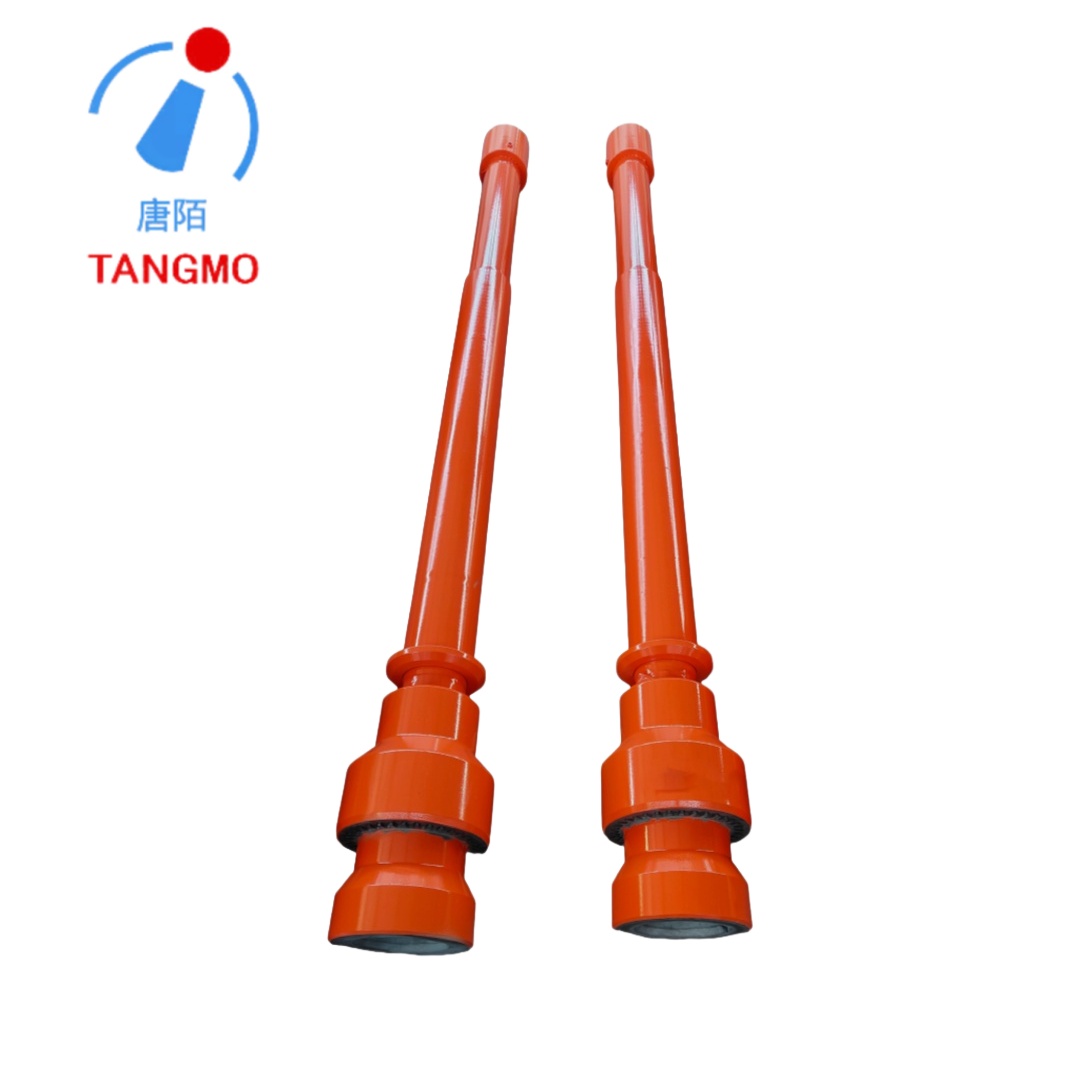

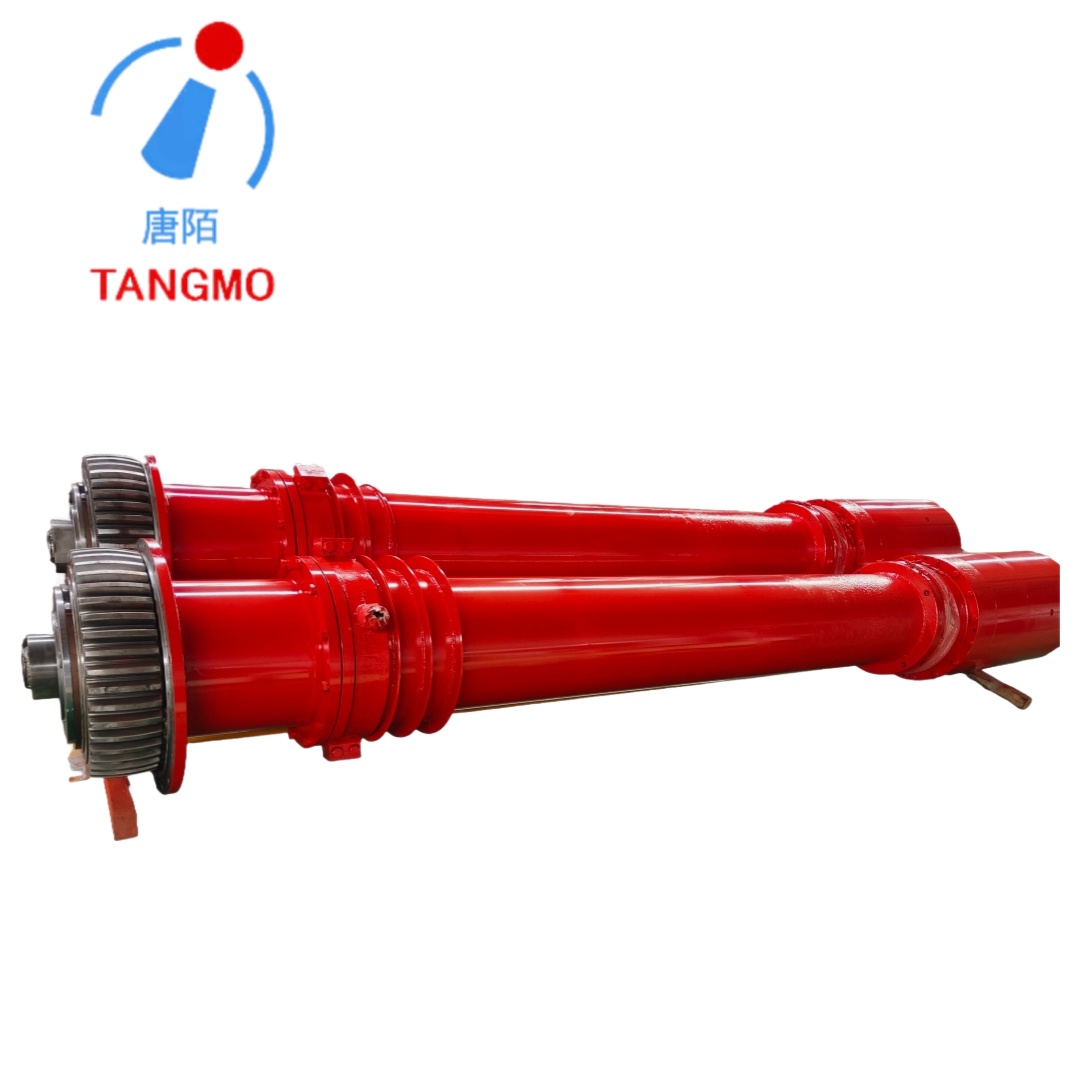

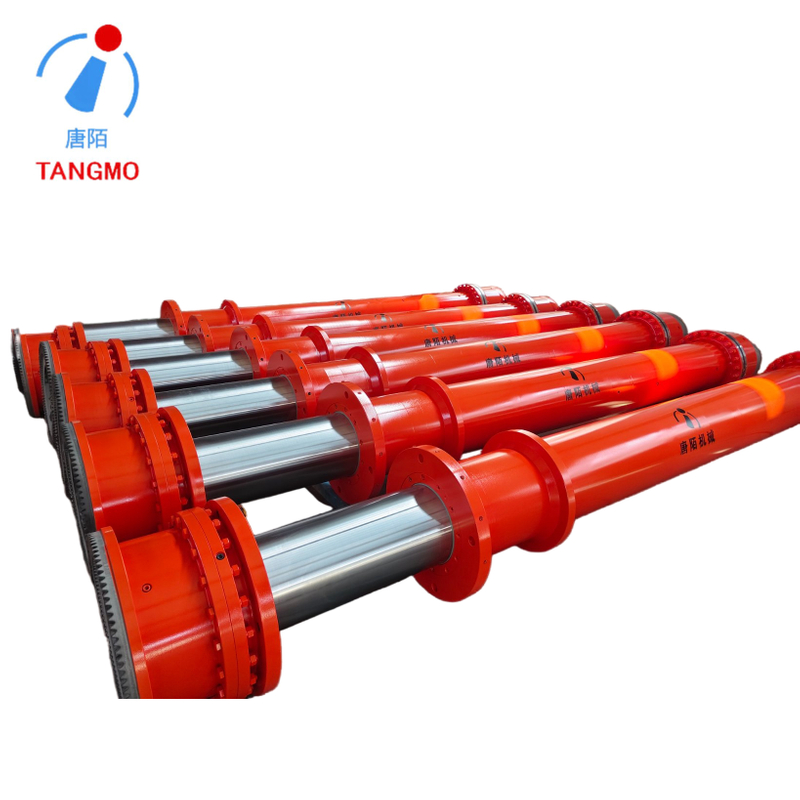

Gear Spindle

loading

Gear Spindle Gear Spindle
Gear Spindle Gear Spindle
Gear Spindle Gear Spindle
Gear Spindle Gear Spindle

Gear Spindle

Availability:
Quantity:
  • Tangmo

Product Description

1. Overview

A gear spindle (also known as a gear-type universal connecting shaft or mill spindle) is a heavy-duty, high-torque transmission component designed for applications with large center distances, significant angular misalignment, and extreme shock loads. Unlike standard gear couplings, a gear spindle incorporates an intermediate hollow or solid shaft between two gear coupling halves, allowing greater shaft separation while maintaining torsional rigidity.

Gear spindles are the industry standard for rolling mill main drive lines, connecting the gearbox output shaft to the work roll neck. They are also used in large presses, calenders, and heavy-duty test benches.

2. Working Principle

The gear spindle transmits torque through two sets of crowned gear teeth (one at each end). Each end consists of:

  • External gear hub – mounted on the driving or driven machine shaft

  • Internal gear sleeve – connected to the intermediate spindle tube

The barrel-shaped (crowned) tooth profile allows angular misalignment (typically ±1° to ±3° per end) without edge contact. The intermediate shaft transmits torque over distance and may incorporate a splined section for axial compensation (thermal expansion or roll gap adjustment).

3. Key Components (Mechanical Breakdown)

ComponentFunctionMaterial (Typical)
Spindle tube (hollow)Transmits torque over long span; hollow design reduces inertiaSeamless forged alloy steel (34CrNiMo6, 42CrMo4)
External gear hubs (ends)Connect to drive/roll necksThrough-hardened or case-carburized alloy steel
Internal gear sleevesMesh with hubs; allow angular movementForged steel with induction-hardened internal teeth
Tooth profileCrowned involute (30–35° pressure angle for higher torque)Case-hardened HRC 58–62, case depth 1.2–2.0 mm
Lubrication systemContinuous oil circulation or grease packingCentralized grease channels; optional oil-feed grooves
Sealing systemMulti-lip seals + labyrinth ringsFKM or HNBR with steel reinforcement
Flange connectionSleeve-to-spindle attachment (bolted or welded)High-strength bolts (grade 12.9) with locking plates

4. Unique Design Features (Rolling Mill Spindles)

FeatureDescriptionBenefit
Hollow spindle constructionBore diameter up to 60% of ODReduces mass moment of inertia by 40–50%; improves acceleration/deceleration
Anti-friction bearing supportNeedle or spherical roller bearings inside sleevesMaintains gear alignment under heavy radial loads
Double-crown tooth profileAxial and profile crowningDistributes contact stress evenly; accommodates angular misalignment up to ±3°
Self-aligning end capsFloating cap designPrevents over-constraint when roll necks deflect under load
Wear indicatorsMarkings on teeth or sleevesAllows visual inspection without disassembly
Balance weightsRemovable weights on sleeve ODEnables dynamic balancing after repair (ISO G2.5–G6.3)

5. Technical Specifications (Typical Range for Rolling Mills)

ParameterValue Range
Torque capacity (nominal)50 kN·m – 4,000 kN·m (higher for plate mills)
Spindle length (center-to-center)500 mm – 8,000 mm
Spindle tube OD100 mm – 1,200 mm
Angular misalignment (per end)±1° to ±3° (dynamic)
Axial movement capacity±5 mm to ±40 mm (via spline or sleeve float)
Operating speed50 – 500 RPM (heavy rolling); up to 1500 RPM (small spindles)
Tooth module (metric)6 – 30 mm
Number of teeth30 – 80 (higher tooth count = smoother engagement)

6. Lubrication Systems

TypeMethodApplication
Grease-lubricated (packed)Lithium-complex EP grease NLGI #2; relubrication every 2–4 weeksLow-speed roughing mills (20–80 RPM)
Manual oil injectionOil pumped into sleeve via nipples; excess drains outIntermittent operation; smaller spindles
Circulating oil systemContinuous oil flow (2–10 L/min) through hollow spindle and sleevesHigh-speed finishing mills (200–500 RPM); provides cooling
Oil-air mistFine oil droplets in compressed airUltra-high speed (up to 1500 RPM); minimal heat generation

7. Failure Modes & Preventive Measures

Failure ModeRoot CausePrevention
Tooth spallingFatigue from repeated contact stressEnsure case depth ≥ 1.5× tooth module; maintain oil cleanliness (ISO 15/13)
Tooth breakageShock load exceeding design torque (e.g., cobble in mill)Use torque limiter or shear pin; service factor ≥ 2.5
Spline/seal wearInadequate lubrication or contaminationInstall purge seals; increase relubrication frequency in water-intensive environments (e.g., hot strip mills)
Spindle tube crackingFatigue from reversing torsional loads (e.g., reversing rougher)Ultrasonic inspection every 12 months; fillet radius optimization
Bolt looseningVibration and reversing torqueUse hydraulic tensioning; Loctite® or locking plates

8. Typical Applications

  • Hot rolling mills – Roughing stands (high shock loads), finishing stands (high speed), downcoilers

  • Cold rolling mills – Tandem mills, temper mills, reversing cold mills

  • Continuous casters – Withdrawal and straightening units (high-angle spindles: up to ±5°)

  • Heavy plate mills – Extremely high torque (up to 8,000 kN·m) with large-diameter spindles (1,200 mm)

  • Non-ferrous rolling – Aluminum and copper mills (corrosion-resistant coatings required)

  • Metal forming presses – Large eccentric presses and shears

9. Selection & Ordering Specifications

When specifying a gear spindle, engineers must provide:

Required ParameterExample
Torque (normal / peak)500 kN·m / 1,250 kN·m
Speed range0–300 RPM (reversing every 2 seconds)
Center distance (L)3,500 mm ±10 mm
Angular misalignment (static + dynamic)±1.5° per end
Axial movement (thermal + roll gap)±25 mm
Shaft connectionsTapered roll neck (1:10 taper) with hydraulic clamping; gearbox output – keyed or splined
EnvironmentHot (800°C radiant heat), water spray, scale ingress
Lubrication preferenceCirculating oil with external cooling

10. Maintenance Best Practices (Steel Mill Environment)

  • Daily inspection: Check for seal leakage, unusual noise (tooth impact), bolt tightness (visual witness marks)

  • Weekly relubrication (grease type): Pump fresh grease until old grease exits seals (purge 50–100 g per point)

  • Quarterly: Measure backlash (tooth clearance) at multiple angular positions; trend analysis

  • Annual overhaul:

    • Magnetic particle inspection (MPI) of hub teeth and spindle tube ends

    • Replace all seals (preventive – seals harden from heat)

    • Dynamic balancing after reassembly (G2.5 at max operating speed)

    • Ultrasonic thickness measurement of spindle tube (wear/corrosion)

  • Every 5 years or 50,000 hours: Replace gear hubs (tooth wear exceeds 10–15% of original thickness per AGMA 912)
