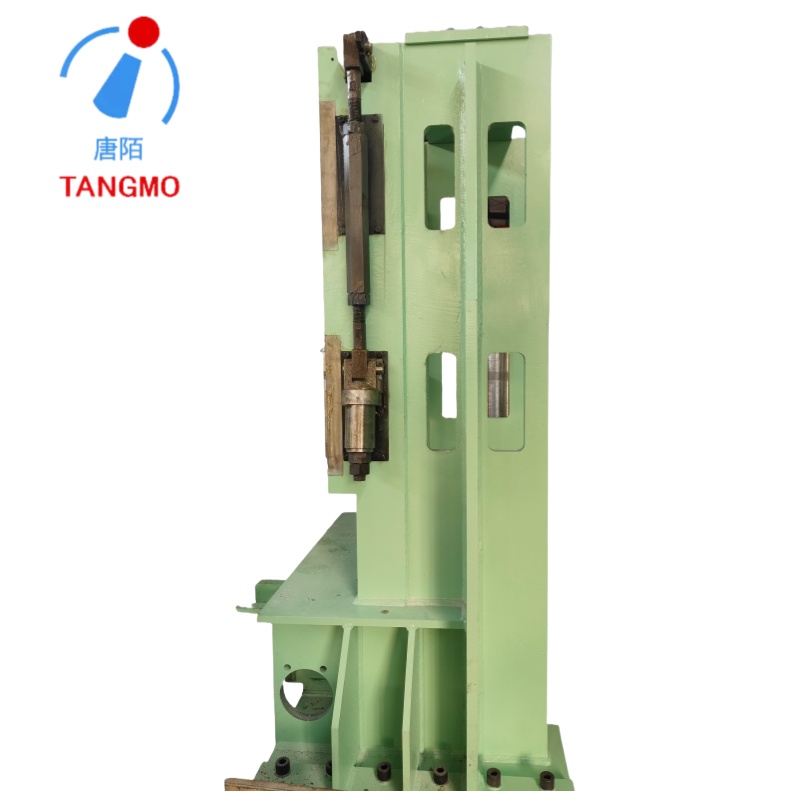

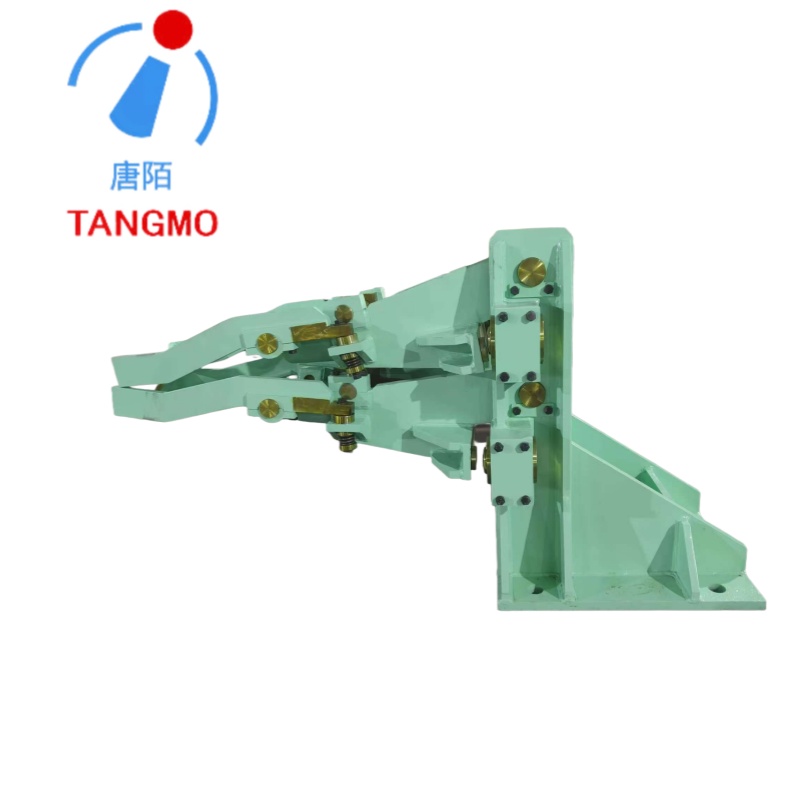

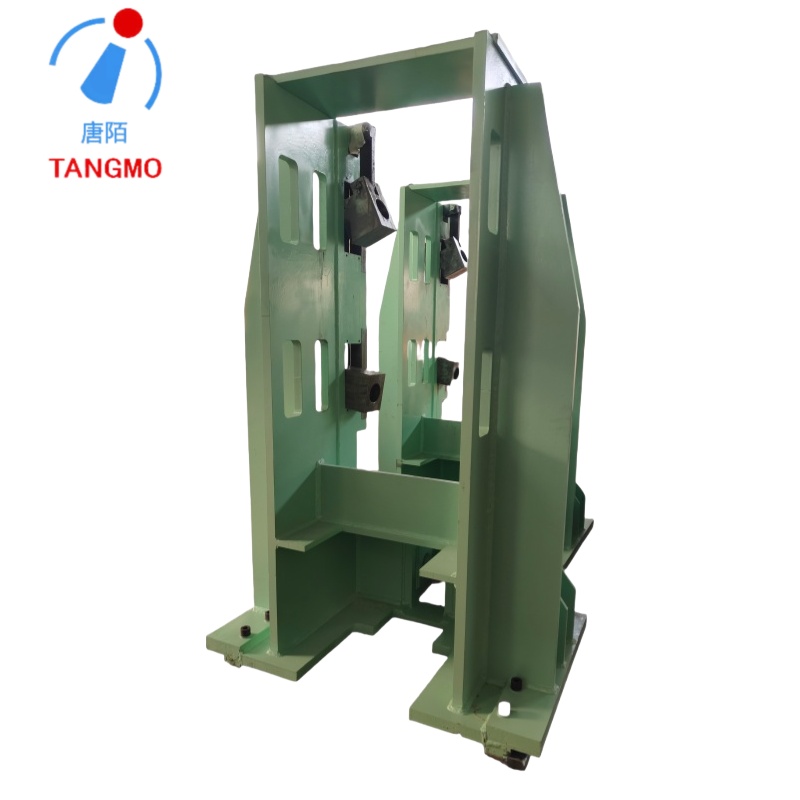

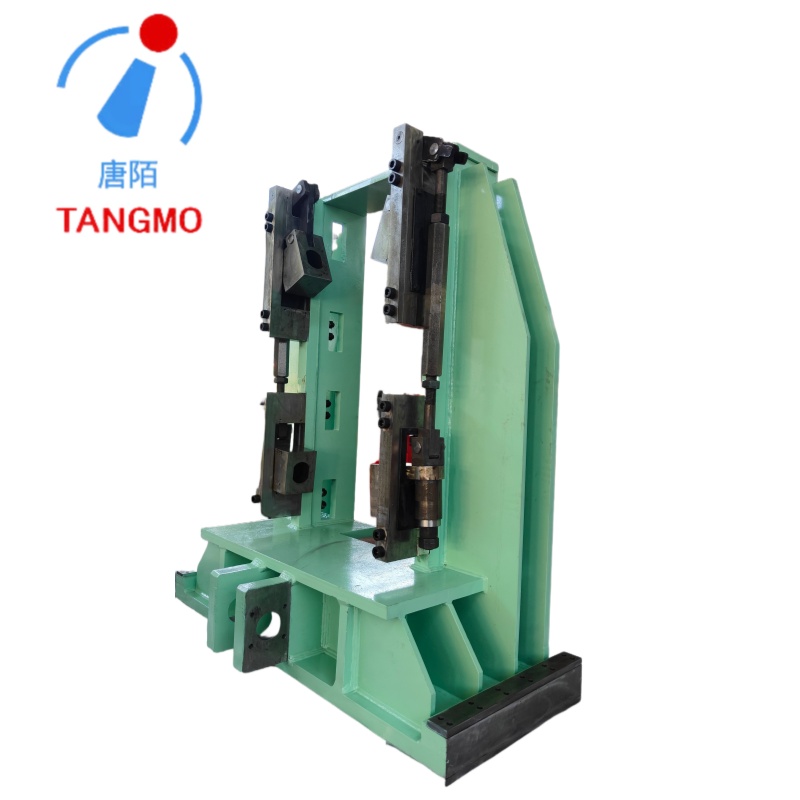

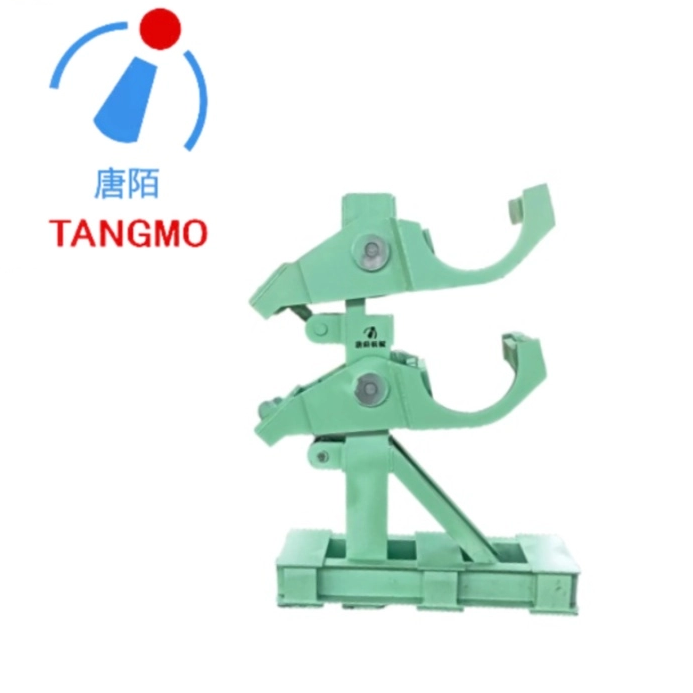

A balancing device (also known as a counterbalance mechanism, equilibrator, or weight compensator) is a mechanical, hydraulic, pneumatic, or electromechanical system designed to offset the gravitational force or inertial forces of a moving mass. By applying an opposing force that varies with position (or remains constant), balancing devices reduce the net torque or force required from a prime mover (motor, cylinder, or actuator), thereby improving energy efficiency, positioning accuracy, and component life.
Balancing devices are essential in applications where heavy masses must be moved vertically, pivoted, or rotated against gravity: rolling mill roll gap adjustment, press slides, industrial robots, machine tool counterweights, elevators, cranes, hatch covers, and articulated booms.
A balancing device stores potential energy during downward or lowering motion and releases it during upward or lifting motion. The net effect is to cancel or reduce the gravitational torque/force at the driving actuator.
| Principle | Mechanism | Force Characteristic |
|---|---|---|
| Gravity counterweight | A dead weight connected via cables/pulleys opposite to the moving mass | Constant force (independent of position) |
| Spring mechanism | Extension or compression springs (steel or gas springs) | Force proportional to displacement (linear or progressive) |
| Pneumatic cylinder | Compressed air acting on a piston area | Near-constant force (with pressure regulation) |
| Hydraulic cylinder | Oil pressure acting on piston (with accumulator) | Constant force (adjustable via pressure) |
| Torsion bar / leaf spring | Twisted bar or bent plate storing rotational energy | Torque proportional to angular displacement |
General equation (linear motion):
F_balance = m × g × k
Where:
F_balance = balancing force (N)
m = mass to be balanced (kg)
g = gravitational acceleration (9.81 m/s²)
k = balance ratio (0 = no balance; 1 = 100% balance)
For rotary motion (torque balance):
T_balance = m × g × L × cos(θ) × k
Where L = distance from pivot to center of mass, θ = angle from horizontal.
The simplest and most reliable method. A dead weight is attached via cables, chains, or linkages to move opposite the primary mass.
| Feature | Description |
|---|---|
| Balance ratio | Up to 100% (perfect balance theoretically possible) |
| Force characteristic | Constant (independent of position) |
| Advantages | No external energy; failsafe; low maintenance |
| Disadvantages | Adds inertia; requires space; increases total moving mass |
| Applications | Elevators, cranes, vertical lifts, machine tool counterweights |
Example: Elevator counterweight (typically balances 40–50% of car + rated load).
Uses extension springs, compression springs, or constant-force spring motors to offset gravity.
| Sub-type | Description | Force Profile |
|---|---|---|
| Linear spring | Hooke's law: F = k × x | Linearly increasing with stroke |
| Zero-length spring | Preloaded to zero force at zero displacement | Linear but offset |
| Constant-force spring | Pre-stressed flat spring coiled on drum | Near-constant force |
| Gas spring | Nitrogen gas compressed in cylinder | Progressive (near-constant over working stroke) |
| Parameter | Coil Spring | Constant-Force Spring | Gas Spring |
|---|---|---|---|
| Force range | 10 – 50,000 N | 5 – 5,000 N | 50 – 50,000 N |
| Stroke | 10 – 1,000 mm | 100 – 5,000 mm | 20 – 1,000 mm |
| Force constancy | Poor (linear rise) | Excellent (±5–10%) | Good (±10–15%) |
| Temperature sensitivity | Low | Low | Medium (gas pressure varies) |
| Maintenance | None | None | Seal replacement every 2–5 years |
| Cost | Low | Medium | Medium |
Applications: Overhead tool balancers (assembly lines), hatch covers, machine guards, articulated booms.
Uses compressed air acting on a cylinder piston. Often combined with a reservoir or pressure regulator to maintain constant force regardless of piston position.
| Feature | Description |
|---|---|
| Balance ratio | Adjustable 0–100% via pressure regulator |
| Force characteristic | Near-constant (if cylinder area constant and pressure regulated) |
| Advantages | Adjustable on-the-fly; smooth; no added inertia |
| Disadvantages | Requires compressed air supply; leakage possible |
| Applications | Industrial robots (e.g., robot arm counterbalance), machine tool Z-axes, press slides |
Typical configuration:
Piston rod attached to moving mass
Cylinder barrel fixed to frame
Regulated air pressure supplies cylinder cap side
Optional accumulator to maintain pressure during fast moves
Similar to pneumatic but uses oil (incompressible) with an accumulator (nitrogen bladder or piston type). Provides very high forces in compact envelopes.
| Feature | Description |
|---|---|
| Force range | 10 kN – 2,000+ kN |
| Balance ratio | Adjustable (0–100%) |
| Advantages | High force density; stiff (incompressible); can integrate damping |
| Disadvantages | Requires hydraulic power unit; leakage risk; more complex |
| Applications | Rolling mill roll balancing (work rolls, backup rolls), heavy press counterbalance, large excavator booms |
Hydraulic roll balancing (rolling mills):
Hydraulic cylinders push up against roll chocks
Balances weight of rolls + bearings + chocks
Allows rapid roll change and gap adjustment
Used for rotating masses (e.g., vehicle suspension, hatch covers, industrial robot joints).
| Feature | Description |
|---|---|
| Principle | Torque = k_torsion × θ (angular displacement) |
| Force characteristic | Linearly increasing with rotation angle |
| Advantages | Compact; no external energy |
| Disadvantages | Limited angular range (typically ±30–90°) |
| Applications | Vehicle suspensions (stabilizer bars), robot joints, lid counterbalance |
| Balance Ratio | Motor Torque Reduction | Energy Savings (Vertical Moves) |
|---|---|---|
| 0% (unbalanced) | Baseline (100%) | 0% |
| 50% | 50% reduction | ~40–50% |
| 80% | 80% reduction | ~70–75% |
| 100% (perfect) | Theoretical zero (friction only) | ~90–95% (friction losses remain) |
Note: In regenerative drive systems, unbalanced loads can recover energy during lowering, but balancing reduces peak power demand.
Reduces steady-state error in servo systems (lower required holding torque)
Minimizes backlash effects (gears operate under consistent load direction)
Enables higher acceleration/deceleration rates (actuator not fighting gravity)
| Component | Benefit from Balancing |
|---|---|
| Motor / actuator | Reduced continuous torque → lower temperature → longer insulation life |
| Gears / ballscrews | Lower mean load → reduced wear and pitting |
| Brakes | Lower holding torque required → reduced lining wear |
| Bearings | Balanced forces → lower contact stresses |
Mechanical counterweight: Naturally fail-safe (gravity always acts downward)
Spring balancer: Spring breakage may cause sudden drop → requires safety cable or catch device
Hydraulic/pneumatic: Requires check valves or pressure-holding valves to prevent drift if pressure lost
| Parameter | Gravity Counterweight | Spring Balancer | Gas Spring | Pneumatic | Hydraulic |
|---|---|---|---|---|---|
| Force capacity | 100 kg – 50+ tons | 1 – 5,000 kg equivalent | 5 – 5,000 kg eq. | 10 – 10,000 kg eq. | 1 – 200+ tons eq. |
| Stroke / travel | Unlimited (cable length) | 0.1 – 5 m | 0.05 – 1 m | 0.1 – 3 m | 0.1 – 2 m |
| Force constancy | Perfect (constant) | Poor–Good | Good | Good | Excellent |
| Adjustable online? | No (add/remove weights) | No (change spring) | No (change gas pressure) | Yes (regulator) | Yes (pressure control) |
| External energy | None | None | None | Compressed air | Hydraulic power |
| Response time | Instant | Instant | Instant | <0.1 sec | <0.05 sec |
| Maintenance | Low (cables, sheaves) | None (spring) | Seal replacement | Filter/regulator service | Filter, seal, oil changes |
| Relative cost | $$ (structure) | $–$$ | $$ | $$–$$$ | $$$–$$$$ |
| Feature | Description |
|---|---|
| Purpose | Counteract weight of work rolls and backup rolls; maintain contact between rolls |
| Configuration | Hydraulic cylinders mounted in roll chocks or housing posts |
| Balance force | Typically 110–120% of roll weight (ensures positive contact) |
| Control | Proportional pressure valve; follows roll position during gap adjustment |
| Safety | Check valves + mechanical stops to prevent roll drop if hydraulic failure |
| Type | Typical Application | Balance Method |
|---|---|---|
| Small robots (<50 kg payload) | Assembly, pick-and-place | Pneumatic cylinder (arm internal) |
| Medium robots (50–200 kg) | Welding, material handling | Gas spring + linkage |
| Large robots (200–1,000+ kg) | Automotive, foundry | Hydraulic counterbalance or counterweight |
| Collaborative robots (cobots) | Light assembly | Constant-force spring (low inertia) |
| Requirement | Typical Solution |
|---|---|
| High precision (µm-level) | Hydraulic counterbalance + ballscrew (reduces screw load) |
| High speed (fast traverse) | Pneumatic counterbalance (low inertia) |
| Heavy spindle (10+ tons) | Gravity counterweight + guided mass |
| Parameter | Typical Value |
|---|---|
| Tool weight range | 0.5 – 100 kg |
| Balance type | Constant-force spring or coil spring |
| Cable travel | 1.0 – 3.0 m |
| Safety feature | Secondary safety cable; overload protection |
| Feature | Ratcheting lock to hold tool at any height |
When specifying a balancing device, determine:
| Criterion | Key Questions |
|---|---|
| Mass to balance | Static weight (kg) + any dynamic forces? |
| Motion type | Linear vertical, pivoting (rotary), or combination? |
| Stroke / travel range | Minimum to maximum position (mm or degrees) |
| Force constancy required | Constant force (counterweight) or variable (spring)? |
| Adjustability needed | Does balance force need to change during operation? |
| Available utilities | Compressed air, hydraulic power, or none? |
| Space constraints | Can counterweight move opposite? Or need compact cylinder? |
| Safety requirements | Fail-safe? Locking in position? Overload protection? |
| Speed / acceleration | High speed → low inertia (pneumatic); low speed → counterweight OK |
| Environment | Clean/dry vs. dirty/hot/corrosive |
| Application | Recommended Balance Ratio | Reason |
|---|---|---|
| Elevators (traction) | 40–50% of (car + 50% rated load) | Optimizes motor sizing; prevents runaway upward |
| Cranes (hoist) | 0% (no balance) or 100% (for some jib cranes) | Usually unbalanced; jib cranes may use counterweight |
| Industrial robots | 60–80% | Reduces joint torques; maintains some gravity bias for safety |
| Machine tool Z-axis | 70–90% | Reduces ballscrew load; improves positioning |
| Rolling mill work roll | 110–120% (of roll weight) | Ensures positive contact; prevents chatter |
| Press slide (mechanical) | 100% (deadweight) or 50–70% (pneumatic) | Reduces flywheel load; improves brake life |
| Overhead tool balancer | 100% (tool feels weightless) | Operator ergonomics |
