A mechanical coupling is a device used to connect two rotating shafts (driver and driven) for the purpose of transmitting torque and rotational motion. Couplings also accommodate various types of misalignment (angular, parallel, and axial) between shafts, provide mechanical flexibility, and in some designs, offer overload protection or vibration damping.
Couplings are essential components in nearly all rotating machinery, including motors, pumps, compressors, gearboxes, turbines, generators, rolling mills, conveyors, and marine propulsion systems.
| Function | Description |
|---|---|
| Torque transmission | Transfer power from driving shaft to driven shaft without slip (except fluid couplings) |
| Misalignment accommodation | Compensate for unavoidable shaft misalignment due to manufacturing tolerances, thermal expansion, bearing wear, or foundation settlement |
| Axial movement allowance | Permit thermal growth or shaft end float |
| Vibration isolation | Reduce transmission of torsional vibrations and shock loads |
| Overload protection | Disconnect or slip under excessive torque (torque limiters, shear pin couplings) |
| Electrical isolation | Prevent current passage (in corrosive or hazardous environments) |
Couplings are broadly divided into two categories: rigid and flexible.
Used when shafts are perfectly aligned and remain so during operation. They provide no misalignment accommodation.
| Type | Description | Application |
|---|---|---|
| Sleeve (muff) coupling | Hollow cylinder with set screws or taper bushings | Low-torque, small shafts |
| Clamp (split muff) coupling | Two half-shells bolted together | Easy assembly; light/medium duty |
| Flanged coupling | Two flanges bolted face-to-face (protected or unprotected type) | Heavy-duty; marine shafts; high torque |
Accommodate misalignment while transmitting torque. Sub-classified as:

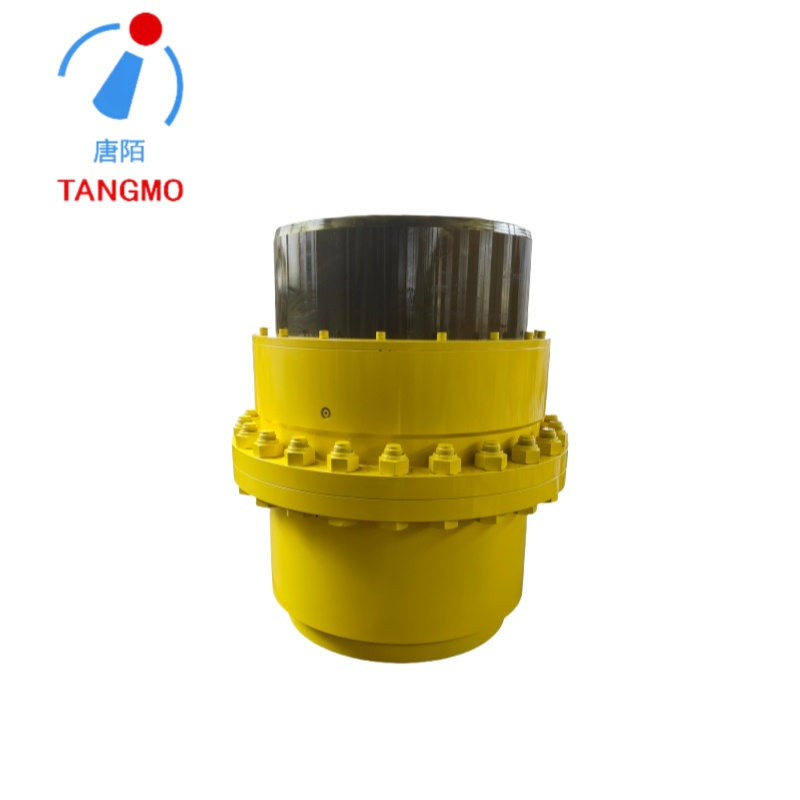

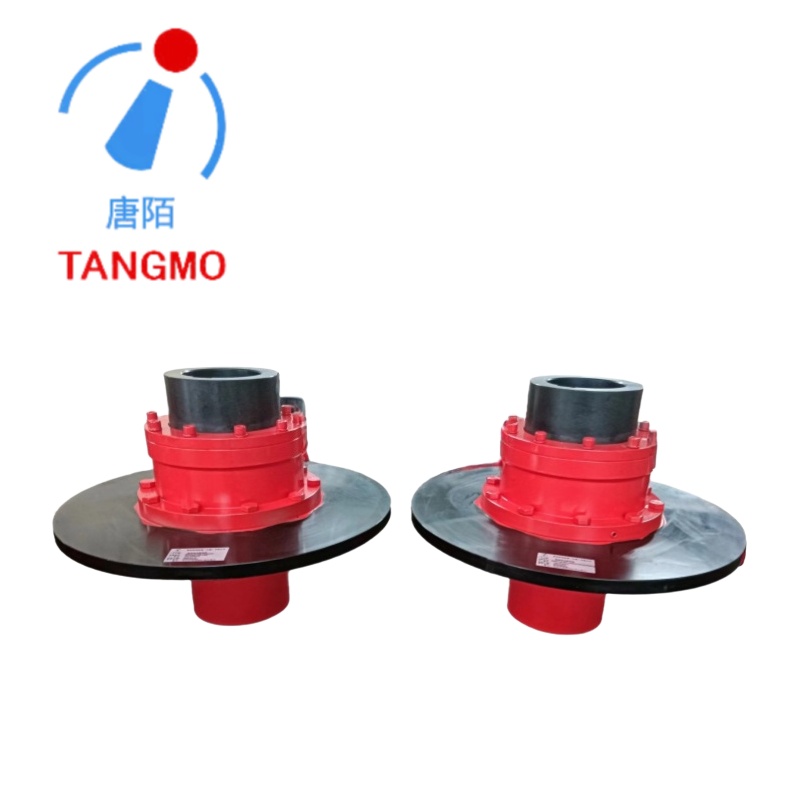

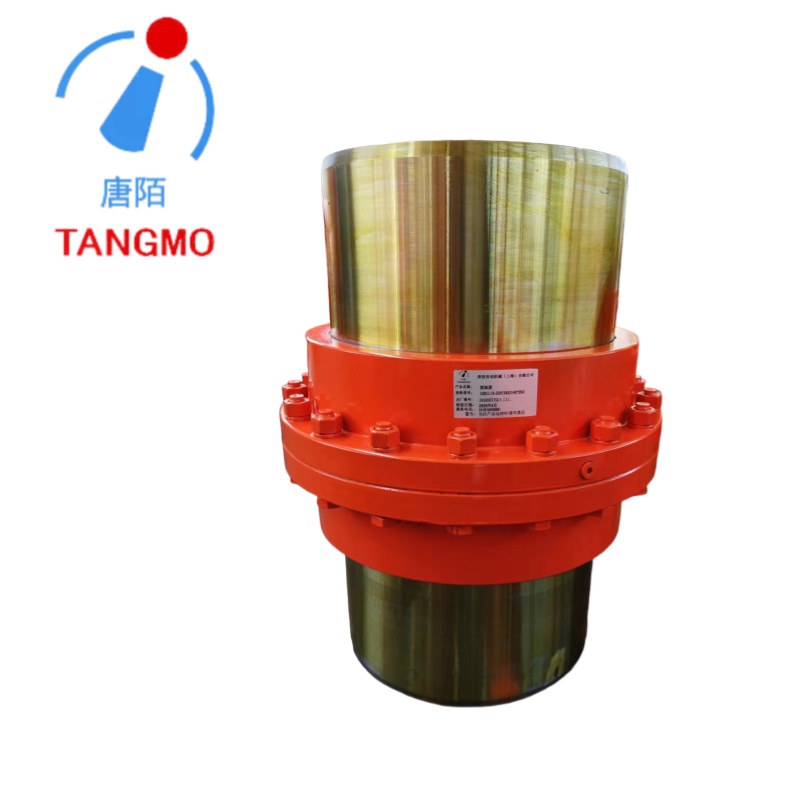

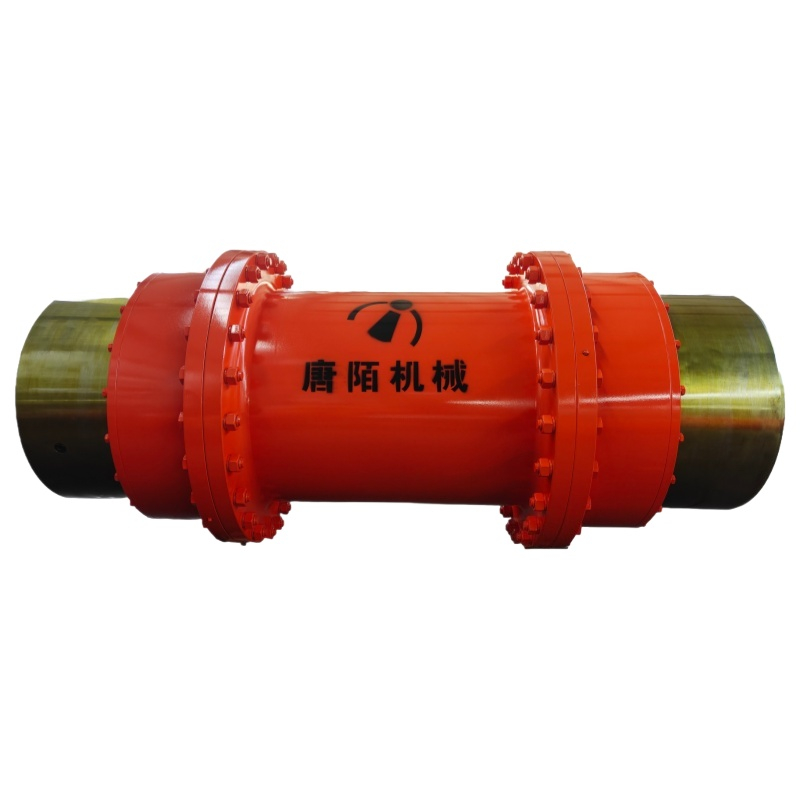

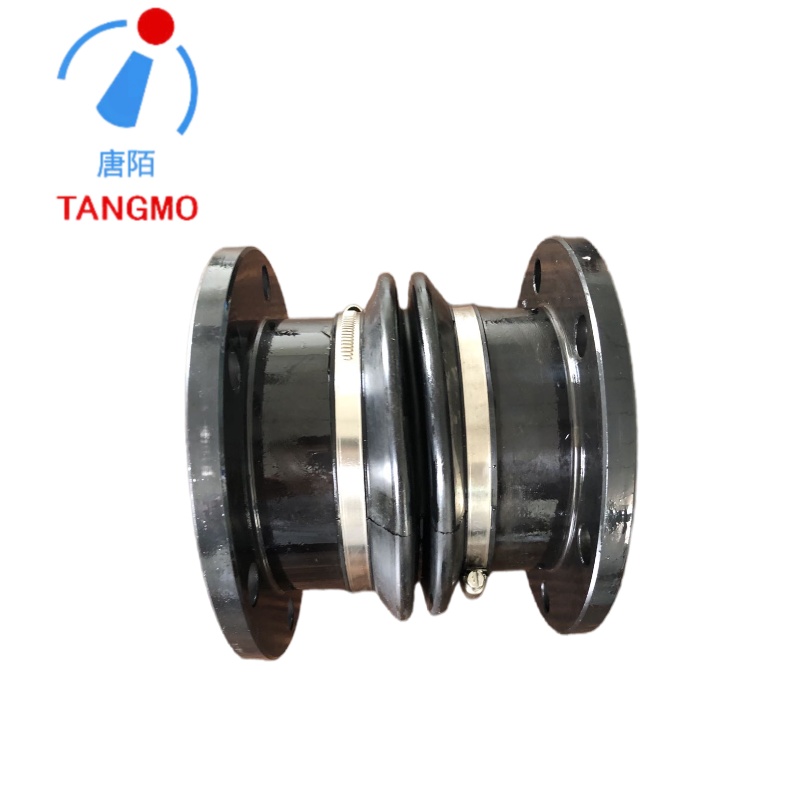

| Sub-category | Principle | Examples |
|---|---|---|
| Mechanical element | Uses rolling/sliding elements | Gear coupling, universal joint, chain coupling |
| Elastomeric element | Uses rubber or polyurethane in compression/shear | Jaw coupling (spider), tire coupling, pin-bushing coupling |
| Metallic element | Uses metal flexing without lubrication | Disc coupling, diaphragm coupling, bellows coupling |
| Fluid / magnetic | Non-contact torque transmission | Fluid coupling, eddy current coupling, magnetic coupling |
| Type | Torque Range | Angular Misalignment | Parallel Offset | Axial Movement | Backlash | Damping | Lubrication Required | Typical Speed |
|---|---|---|---|---|---|---|---|---|
| Gear coupling | Very high (MN·m) | ±0.5–1.5° | Limited | Yes (sleeve float) | Low | Low | Yes (grease/oil) | Low–Medium |
| Universal joint shaft | High | ±15–25° (per joint) | Moderate (via offset) | Requires spline | Moderate | Low | Yes (grease) | Low–Medium |
| Disc coupling | Medium–High | ±0.5° | ≤0.25 mm | ±1–2 mm | Zero | Low | No | High (up to 30,000 RPM) |
| Diaphragm coupling | Medium–High | ±0.5–1° | ≤0.5 mm | ±2–5 mm | Zero | Low | No | Very high (up to 50,000 RPM) |
| Jaw coupling (spider) | Low–Medium | ±0.5–1° | ≤0.2 mm | ±1 mm | Moderate | High (elastomer) | No | Medium |
| Pin-bushing coupling | Medium | ±0.5–1° | ≤0.3 mm | ±2–3 mm | Low | Medium | No | Low–Medium |
| Disc-pack coupling | Medium–High | ±0.5° | ≤0.3 mm | ±1–2 mm | Zero | Low | No | High |
| Chain coupling | Medium | ±1° | ≤0.5 mm | Limited | High | Low | Yes (grease) | Low |
| Bellows coupling | Low | ±1.5° | ≤0.2 mm | ±1 mm | Zero | Low | No | Very high (servo motors) |

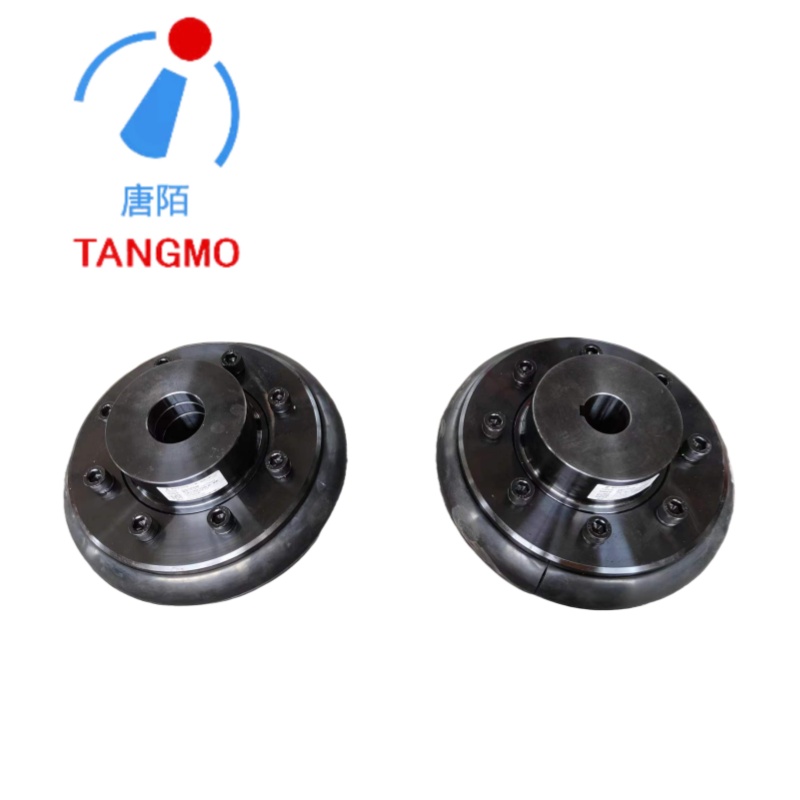

| Tire coupling | Medium | ±3–5° | ≤3 mm | ±3–5 mm | Moderate | Very high | No | Low |
| Fluid coupling | Medium–High | N/A (no rigid connection) | N/A | N/A | Slip inherent | Very high | No (uses oil as medium) | Low–Medium |
Engineers must evaluate the following parameters to select the optimal coupling:
| Criterion | Key Considerations |
|---|---|
| Torque | Rated torque (Tkn) × service factor (SF). SF = 1.0–1.5 for uniform load; 2.0–3.0 for heavy shock (crushers, mills) |
| Speed | Compare to coupling critical speed. High speed (>5000 RPM) → disc/diaphragm/bellows |
| Misalignment | Calculate total dynamic misalignment (angular + parallel + axial). High angle → universal joint or tire coupling |
| Shaft separation | Large center distance (>1 m) → gear spindle or universal joint shaft; short span → disc or jaw coupling |
| Backlash requirement | Precision reversing drives (CNC, servos) → zero-backlash (disc, diaphragm, bellows) |
| Environmental conditions | High temp (>120°C) → all-metal (disc/diaphragm) not elastomer; corrosive → stainless steel or coated |
| Maintenance access | Limited space → no-lube types (disc, diaphragm, jaw); accessible → gear coupling (requires relubrication) |
| Electrical isolation | Hazardous areas (mining, chemical) → non-conductive elastomer couplings or magnetic couplings |
| Cost constraint | Low cost → jaw coupling (spider) or pin-bushing; high-end → diaphragm or gear coupling |
| Driven Machine Type | SF (uniform load) | SF (moderate shock) | SF (heavy shock) |
|---|---|---|---|
| Fans, blowers (light) | 1.0–1.2 | – | – |
| Centrifugal pumps, compressors | 1.2–1.5 | – | – |
| Conveyors (uniform load) | 1.3–1.6 | 1.8–2.2 | – |
| Mixers, agitators | 1.5–1.8 | 1.8–2.2 | – |
| Crushers, hammer mills | – | – | 2.5–3.0 |
| Rolling mills (reversing) | – | – | 2.5–3.5 |
| Reciprocating pumps/compressors | – | 2.0–2.5 | – |
| Observed Symptom | Possible Cause | Corrective Action |
|---|---|---|
| Excessive vibration | Unbalance, misalignment, worn element | Dynamic balance check; realign shafts; replace elastomer/teeth |
| Premature wear (teeth/elastomer) | Misalignment > coupling rating, insufficient lubrication | Realign within spec; improve lubrication (gear couplings) |
| Overheating (elastomer) | Excessive misalignment or torque | Reduce misalignment; upsize coupling or switch to all-metal |
| Bolt loosening / fracture | Reversing torque, insufficient preload | Use locking hardware (Loctite, lock wire); hydraulic tensioning |
| Lubricant leakage | Seal failure (gear couplings) | Replace seals; consider maintenance-free coupling type |
| Tooth breakage (gear coupling) | Shock load exceeding design | Add torque limiter; increase service factor |
