An In-depth Explanation of SWC Closed Bearing Eye Type Cardan Shaft for Steel Making Bar and Wire Rod Roughing Mills

1. Introduction: The Foundation of Long Product Rolling

In the steel bar and wire rod rolling process, the roughing mill (also known as a breakdown mill) performs the critical initial reduction of a cast billet into an intermediate section suitable for subsequent rolling passes. This equipment operates at the extreme limits of mechanical engineering—handling billets at temperatures exceeding 1100°C, with correspondingly enormous rolling forces and torque demands. The roughing mill must withstand severe impact loads during billet entry, accommodate significant structural deflections, and maintain reliable operation under continuous thermal and mechanical stress. At the core of this primary drive system lies the SWC-type Universal Drive Shaft, a robust cross-shaft universal coupling engineered specifically for the unique combination of extreme torque, heavy impact loading, and reliable performance required in modern bar and wire rod roughing mill applications .

SWC-type universal shafts are widely recognized in the metallurgical industry for applications including rolling mill main drives and auxiliary transmission systems . Their proven reliability in demanding environments makes them an indispensable component for ensuring the smooth flow of material through the long products rolling process.

2. The Roughing Mill Process and Its Drive System Requirements

2.1 Overview of Roughing Mill Operations

The bar and wire rod roughing mill transforms cast billets (typically 120mm to 200mm square) into smaller, elongated sections through multiple passes. Key characteristics of the roughing process include:

• High Temperature Rolling: Billets are rolled at temperatures between 1000°C and 1150°C

• Multiple Passes: The billet passes through several stands (typically 4-6) in sequence

• High Reduction: Significant cross-sectional area reduction in each pass

• Severe Impact Loads: Peak loads during initial billet bite into the rolls

2.2 Drive System Requirements

The roughing mill drive system must satisfy several critical requirements:

• High Torque Transmission: Sufficient torque for plastic deformation of steel at elevated temperatures

• Impact Resistance: Ability to withstand shock loads during billet entry

• Angular Misalignment Compensation: Accommodation of roll adjustments and structural deflection

• Axial Compensation: Thermal expansion of rolls and shafts during continuous operation

• Environmental Durability: Resistance to high radiant heat, cooling water, scale, and dust

• Reliability: Continuous operation capability with minimal downtime

3. Mechanical Design and Construction for Roughing Mill Applications

3.1 Fundamental Structure and Key Components

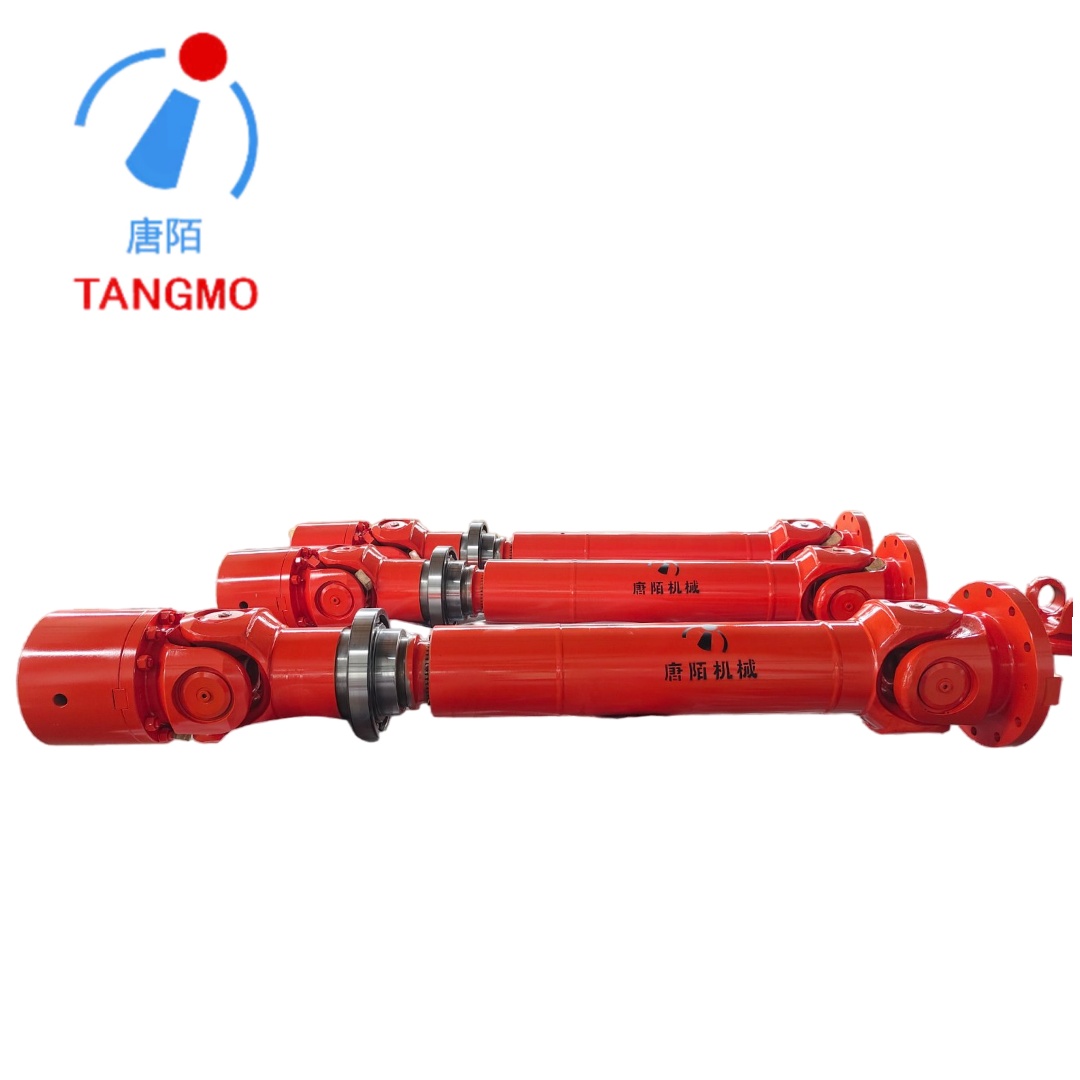

The SWC-type universal drive shaft for roughing mill applications consists of several precision-engineered components working in concert to transmit power reliably under demanding conditions:

• Integral Fork Heads: The main structural elements that connect to the drive motor and the roll stand. A defining feature of the SWC series is its integral fork head (bolt-free) design . Unlike older designs that rely on bolted connections, the SWC fork head is forged as a single piece from high-strength alloy steel such as 35CrMo or 42CrMo. This completely eliminates the risk of bolt loosening or fatigue fracture—a critical safety consideration in high-torque, continuous operation applications. This bolt-free structure increases service life by an estimated 30-50% compared to traditional couplings .

• Cross Bearing Assembly (Cross Shaft): The core articulation point featuring a cruciform journal (cross) supported by high-precision bearings. This assembly enables angular transmission while carrying the complex combination of radial and axial loads generated during operation. For roughing mill applications, where extreme impact loads and continuous operation demand exceptional bearing life, quality and lubrication are paramount .

• Telescopic Spline Assembly: For roughing mill configurations requiring axial compensation, a precision-matched spline pair enables smooth axial movement. This feature accommodates thermal expansion of the rolls and shafts, stand adjustments for different billet sizes, and any misalignments between the drive motor and the roll stand during operation .

• Flange Connections: High-strength flanges with precision-machined mounting faces provide the interface to the motor shaft and the mill stand. Power is transmitted through a combination of end-face keys and friction between mating surfaces, secured by high-grade bolts meeting Class 10.9 or higher specifications .

• Welded Shaft Construction: The SWC series utilizes welded construction between the shaft tube and fork heads, creating a robust, monolithic structure that enhances rigidity and simplifies assembly .

• Advanced Sealing Systems: Multiple sealing protection effectively prevents external pollutants from entering and internal lubricant leakage, making SWC shafts particularly suitable for the harsh environment of steel roughing mills .

3.2 SWC Series Configurations for Roughing Mill Applications

The SWC family encompasses multiple design variants to accommodate different roughing mill installation requirements. The most relevant configurations for roughing mill drives include :

3.3 Material Specifications and Heat Treatment

The demanding roughing mill environment requires exceptional material properties to ensure long service life under continuous operation:

3.4 Dimensional and Performance Range

SWC-type universal shafts are available in a comprehensive range of sizes to suit various roughing mill power requirements. The standard series covers rotational diameters from 58mm to 620mm, with corresponding performance capabilities :

• Rotational Diameter (D): 58 mm to 620 mm

• Nominal Torque (Tn): 0.15 kN·m to 1000 kN·m (the torque at 50% of yield strength)

• Fatigue Torque (Tf): 0.075 kN·m to 500 kN·m (permissible torque under cyclic loads)

• Maximum Deflection Angle (β): 15° to 25° depending on model and size

• Transmission Efficiency: 98% to 99.8%

• Noise Level: Low noise operation due to precision bearing system

For typical bar and wire rod roughing mill applications, larger models in the SWC250 to SWC440 range are commonly specified, with nominal torques from 63 kN·m to 355 kN·m .

4. Why SWC Shafts Are Essential for Bar and Wire Rod Roughing Mills

4.1 Extreme Torque Capacity for Primary Reduction

The roughing mill represents the highest torque application in the entire bar and wire rod production process, requiring enormous power to plastically deform steel billets at elevated temperatures. SWC shafts offer greater torque capacity than other coupling types with the same rotational diameter . This characteristic is particularly advantageous for roughing mill applications where:

• The drive must handle extreme rolling forces for primary billet reduction

• Torque requirements peak during initial bite of the billet

• Space constraints around the roughing mill stand limit available envelope for drive components

• The drive system must withstand continuous operation under maximum load

4.2 Angular Misalignment Compensation

Bar and wire rod roughing mills experience significant misalignment conditions due to multiple closely spaced stands, thermal expansion of rolls and shafts, and structural deflection under load. SWC shafts are engineered to accommodate angular misalignment up to 15-25° , allowing for smooth power transmission even as stands are repositioned for different billet sizes and as components undergo thermal expansion during continuous operation .

This angular compensation capability is particularly important in roughing mills where:

• Billets of varying sizes must be accommodated

• Components undergo thermal expansion during prolonged campaigns

• The mill housing deflects under the extreme forces of primary reduction

4.3 Exceptional Impact Resistance for Primary Rolling

The roughing mill experiences the most severe impact loads in the entire rolling process, particularly when the billet first enters the roll bite. According to the JB/T5513-91 standard classification system, the roughing mill application falls into the most demanding load categories :

The integral fork head construction of the SWC shaft provides a robust, bolt-free structure that can withstand these impacts without failure .

4.4 High Transmission Efficiency and Energy Savings

In energy-intensive roughing mill operations, where main drive motors may consume several megawatts of power, transmission efficiency directly impacts operating costs. SWC universal shafts achieve transmission efficiencies of 98% to 99.8% , significantly reducing power losses compared to older coupling technologies . For large roughing mill drives operating continuously, this efficiency translates into:

• Reduced electrical consumption by an estimated 5-15%

• Lower heat generation within the drive system

• Improved overall mill energy efficiency

• More consistent power delivery to the mill stand

4.5 Axial Compensation for Thermal Expansion

The roughing process generates enormous heat, causing significant thermal expansion of the rolls and shafts. The telescopic spline assembly in SWC-BH and SWC-CH types provides the necessary axial compensation, or "length compensation," to accommodate this movement without inducing damaging thrust loads into bearings or gearboxes . Standard stretch lengths (Ls) range from 140mm to 400mm depending on the model.

4.6 Smooth Operation and Product Quality

Drive system vibrations in roughing mills can affect billet geometry and subsequent product quality. SWC shafts are designed for smooth operation with minimal noise generation . The precision-engineered components provide:

• Reduced torsional vibrations that could otherwise cause dimensional variations

• Stable power transmission even under extreme load variations during billet entry and exit

• Improved billet surface quality through consistent torque application

• Enhanced dimensional accuracy by minimizing speed variations during roughing passes

4.7 Environmental Durability

The bar and wire rod roughing mill environment presents the most challenging conditions in the long products industry:

• Radiant heat from the hot billet (temperatures up to 1100-1200°C)

• Massive volumes of cooling water for roll cooling

• Airborne scale and dust from the rolling process

• Heavy impact loads and continuous vibration

SWC shafts are engineered to withstand these conditions through advanced sealing systems that effectively prevent external pollutants from entering and internal lubricant leakage . The multiple sealing protection design is particularly valuable in the abrasive, wet environment of roughing mills.

4.8 Reliability and Service Life

The combination of robust design, quality materials, and proper maintenance results in exceptional service life. With appropriate care, SWC shafts can provide years of reliable operation in roughing mill service. Key factors contributing to longevity include :

• Integral fork head design: Eliminates bolt loosening or fatigue fracture risks

• Long service life: SWC couplings offer 30-50% longer service life compared to other coupling types

• Wear resistance: High-quality alloy steel forging and special heat treatment provide extremely high torsional strength

• Proper lubrication: Regular lubrication at recommended intervals maximizes bearing service life

5. Technical Specifications and Selection Criteria for Roughing Mill Applications

5.1 Key Selection Parameters

Engineers selecting an SWC shaft for bar and wire rod roughing mill applications must consider :

1. Nominal Torque (Tn): The maximum continuous torque the shaft must transmit during rolling, accounting for the highest torque demand during billet entry and steady-state rolling

2. Fatigue Torque (Tf): The permissible torque under cyclic loads, critical for continuous operation

3. Maximum Deflection Angle (β): The expected angular misalignment under full load conditions (15-25° for SWC type)

4. Length Compensation (Lv): Required axial travel for thermal expansion and stand positioning

5. Rotational Diameter (D): Space constraints within the roughing mill drive envelope

6. Operating Speed: Maximum rotational speed considering dynamic balance requirements

7. Service Factor (K): Application-specific factor accounting for load severity (2-3 for roughing mills, 3-5 for reversing roughing mills)

8. Synthetic Angle: When the coupling operates with deflection angles in both horizontal and vertical planes simultaneously, the combined axis deflection angle must be calculated

5.2 Selection Methodology According to JB/T5513-91

According to the JB/T5513-91 standard, SWC universal shafts should be selected based on :

• Load characteristics

• Calculated torque

• Bearing life

• Operating speed

The calculated torque is determined by:

Tc = T × K

Where:

• Tc = Calculation torque

• T = Theoretical torque based on drive power

• K = Service factor (2-3 for roughing mills; 3-5 for reversing roughing mills)

For specific applications, only torsional strength or bearing life may need to be verified based on equipment requirements .

6. Installation and Maintenance Considerations for Roughing Mill Applications

6.1 Installation Requirements

Proper installation is critical for achieving design life and reliable operation in roughing mill service :

• Clean all mounting faces thoroughly before assembly

• Check keyway and mating surface compatibility

• Verify initial alignment within manufacturer-specified tolerances

• Use only high-strength fasteners meeting Class 10.9 or higher specifications

• Follow specified bolt tightening sequences and torque values

• After installation, operate for one shift and re-torque all fasteners; repeat several shifts until no loosening occurs

6.2 Lubrication Strategy

Lubrication is the single most important maintenance factor for SWC shaft longevity, particularly in roughing mill applications where extreme loads and environmental contamination pose severe challenges :

• Lubricant Type: 2# industrial lithium-based grease or 2# molybdenum disulfide calcium-based grease

• Application Frequency:

  • Normal continuous operation: Every 500 operating hours

  • Intermittent operation: Every 2 months

  • High-temperature conditions: Weekly

• Procedure: Remove oil hole screw from bearing end face; inject with high-pressure grease gun until fresh grease exits the bearing seals

• Spline Lubrication: Ensure adequate lubrication of telescopic spline sections to prevent fretting wear (every 6 months recommended)

• Seal Inspection: Regularly check seal integrity; replace damaged or aged seals immediately

6.3 Regular Inspection and Condition Monitoring

Periodic inspection helps detect early signs of wear or damage before catastrophic failure occurs :

• Visual Inspection: Check seals for damage or leakage; inspect for any signs of distress, rust, or mechanical damage

• Vibration Monitoring: Observe for abnormal radial runout or vibration during operation, which may indicate misalignment or bearing wear

• Temperature Monitoring: Monitor bearing housing temperatures for signs of lubrication failure or incipient bearing damage

• Bolt Tightness: Verify that all flange bolts remain properly torqued

6.4 Extended Service Life Practices

• Cross Shaft Rotation: During maintenance every 3 months, rotate the cross shaft 180° to distribute wear evenly across bearing surfaces, extending service life

• Seal Replacement: Replace seals showing signs of aging, hardening, or damage promptly

• Avoid Overload: Prevent prolonged operation under overload conditions that could accelerate fatigue

• Maintenance Records: Maintain detailed records of lubrication, inspections, and component replacements to optimize maintenance intervals

6.5 Safety Considerations

• Install appropriate safety guards in all areas where rotating shafts could pose personnel risks

• Follow proper lockout/tagout procedures during maintenance

• Use appropriate lifting equipment for heavy shaft assemblies

• Never operate with known defects or beyond recommended wear limits

7. Applications in Bar and Wire Rod Roughing Mills

7.1 Main Drive Configurations

In bar and wire rod roughing mills, SWC shafts are primarily used in the following drive configurations:

• Motor-to-Gearbox Connection: Connecting the main drive motor to the reduction gearbox, accommodating any misalignment between these components

• Gearbox-to-Roll Stand Connection: Transmitting power from the gearbox output to the roughing mill stand, where most dynamic misalignment occurs

• Continuous Roughing Mill Drives: Power transmission for multi-stand roughing trains

• Reversing Roughing Mill Drives: Power transmission for mills operating in reversing mode with frequent direction changes

7.2 Roughing Mill Types and SWC Applications

SWC shafts find application across the full spectrum of bar and wire rod roughing equipment:

• Horizontal Roughing Stands: Traditional configuration for billet breakdown

• Continuous Roughing Trains: Multiple stands in sequence for progressive reduction

• Reversing Roughing Mills: Single-stand configurations for smaller operations

7.3 Integration with Mill Control Systems

Modern roughing mills employ sophisticated control systems that rely on precise torque transmission. SWC shafts contribute to control system effectiveness through:

• Minimal torsional windup for rapid response to control commands during billet entry

• Consistent torque transmission characteristics throughout the operating range

• Freedom from backlash that could cause control instability

• Ability to maintain synchronization in multi-stand roughing configurations

8. Comparison with Other Coupling Types for Roughing Mills

For roughing mill applications where angular misalignment, extreme torque capacity, and impact resistance are paramount, the SWC series offers distinct advantages over alternative coupling types.

9. Future Developments

The evolution of SWC shaft technology continues with several emerging trends relevant to bar and wire rod roughing mill applications:

• Higher Torque Density: Advanced materials and optimized geometries increasing torque capacity within the same envelope

• Improved Sealing Technology: Enhanced multiple sealing designs for longer life in contaminated mill environments

• Condition Monitoring Integration: Provision for online monitoring of vibration, temperature, and lubrication condition

• Extended Service Intervals: Development of lubrication systems and materials that extend maintenance intervals

• Advanced Bearing Designs: Continued refinement of cross bearing technology for enhanced durability

10. Conclusion

The SWC-type universal drive shaft represents the optimal engineering solution for the demanding requirements of bar and wire rod roughing mills. Its unique combination of integral fork head construction for reliability, extreme torque capacity for primary billet reduction, angular flexibility for accommodating complex mill geometries (up to 15-25°), and environmental ruggedness for surviving the hostile roughing mill environment ensures reliable power transmission in one of the most challenging applications in the entire long products industry .

The defining features of the SWC series—integral fork heads eliminating bolt failure risks, high transmission efficiency (98-99.8%) for energy savings, comprehensive misalignment compensation, and advanced sealing technology for harsh environments—make it an indispensable component for roughing mill drives .

According to the JB/T5513-91 standard, reversing roughing mills and heavy roughing applications are specifically classified under "Extra Heavy Impact Load" with recommended service factors of 3-5 , confirming the extremely demanding nature of this equipment and the need for robust power transmission components .

SWC-type universal shafts are widely recognized in the industry for applications including rolling mill main drives and auxiliary transmission systems . Their proven reliability in metallurgical applications, combined with their ability to perform under continuous operation, high temperatures, and severe impact loading conditions, makes them not merely components, but critical enablers of roughing mill productivity and product quality.

By understanding the mechanical principles, proper selection criteria based on application requirements (including the appropriate service factor for specific equipment types), and rigorous maintenance requirements including proper lubrication and periodic cross shaft rotation, mill operators can maximize equipment longevity, minimize costly unplanned downtime, and achieve the reliable, high-quality production essential for modern bar and wire rod manufacturing .
