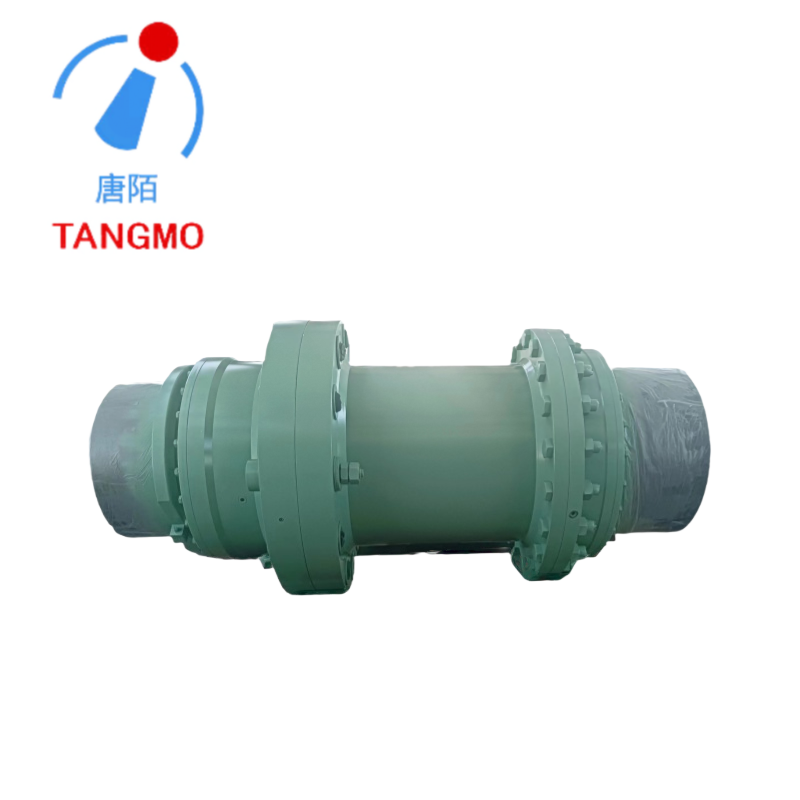

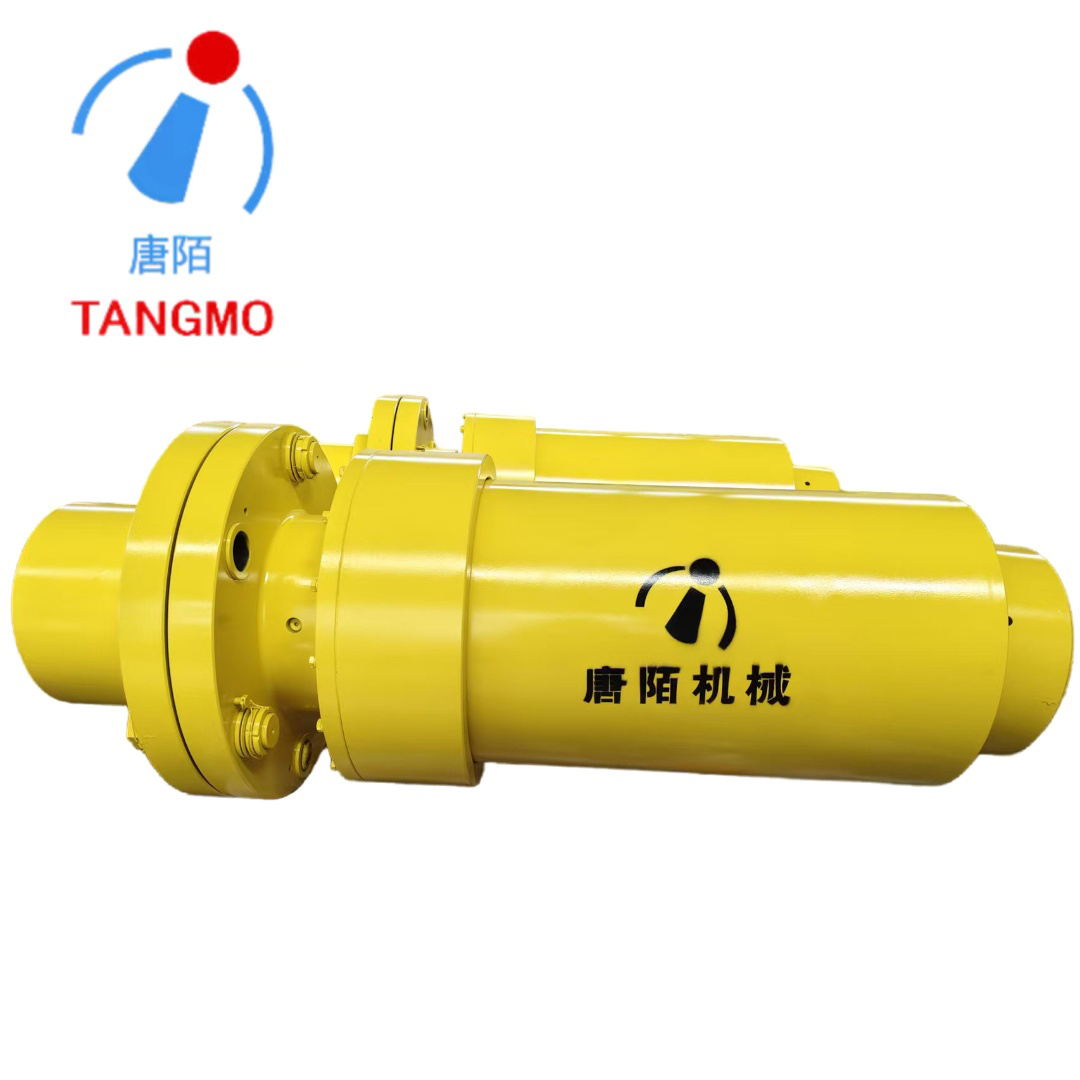

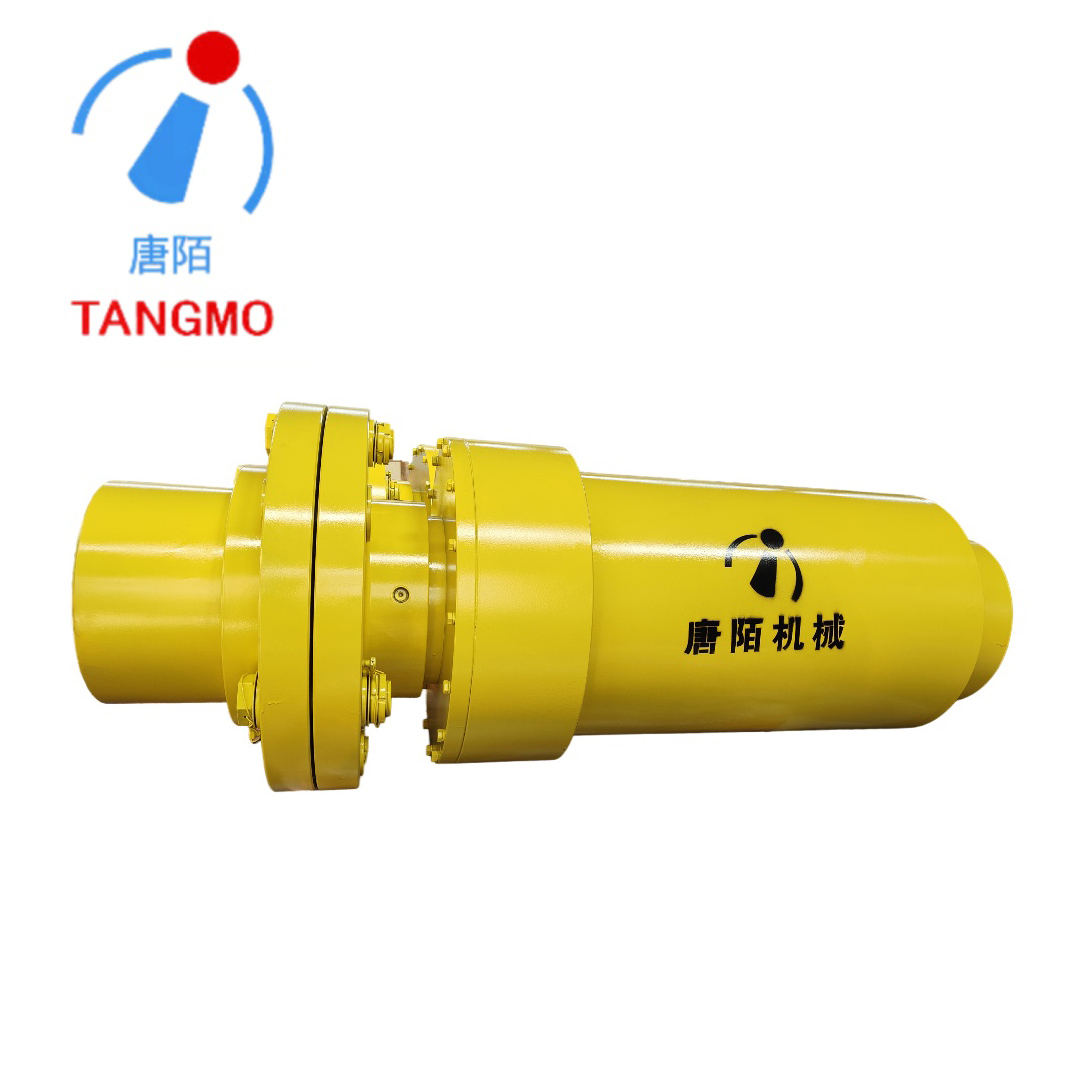

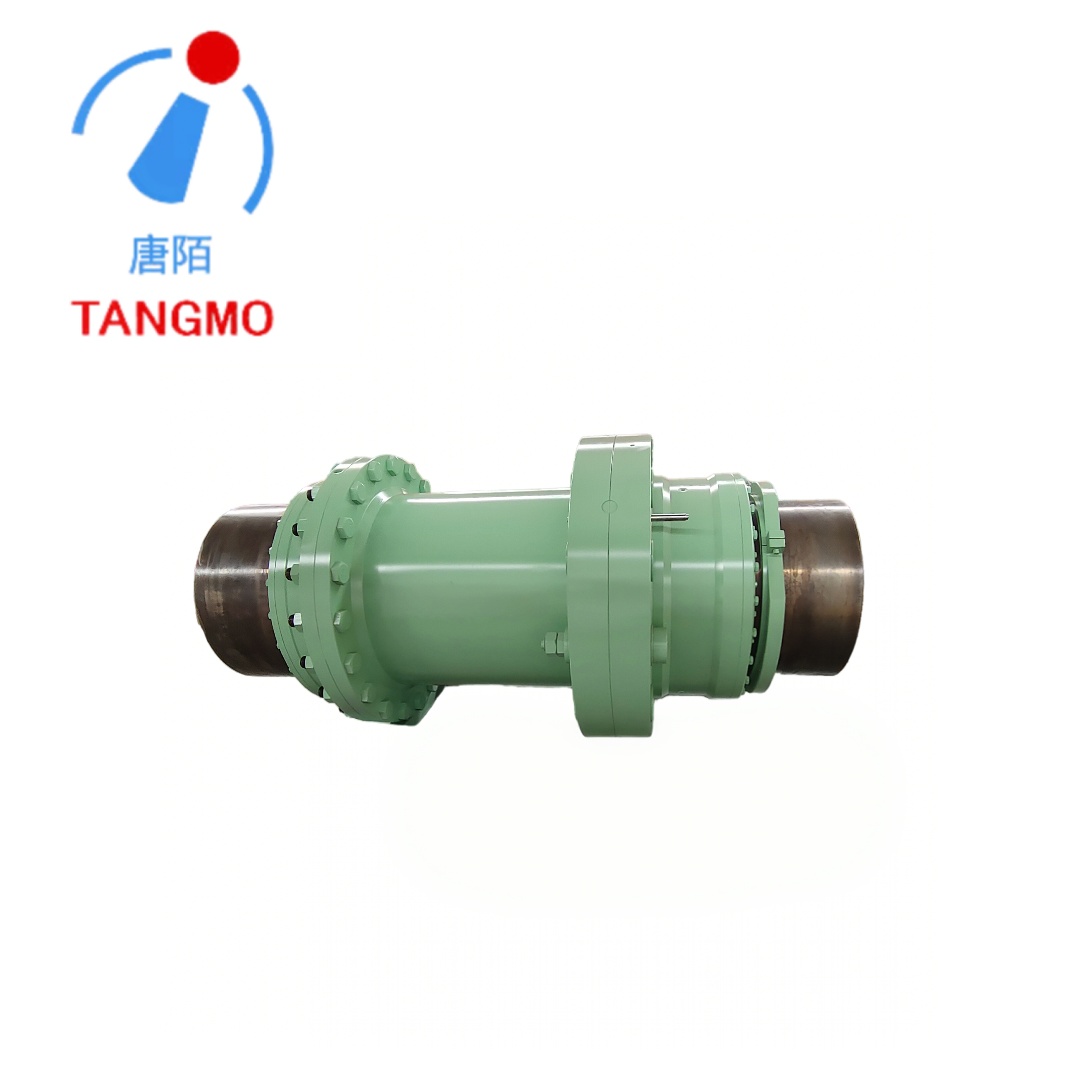

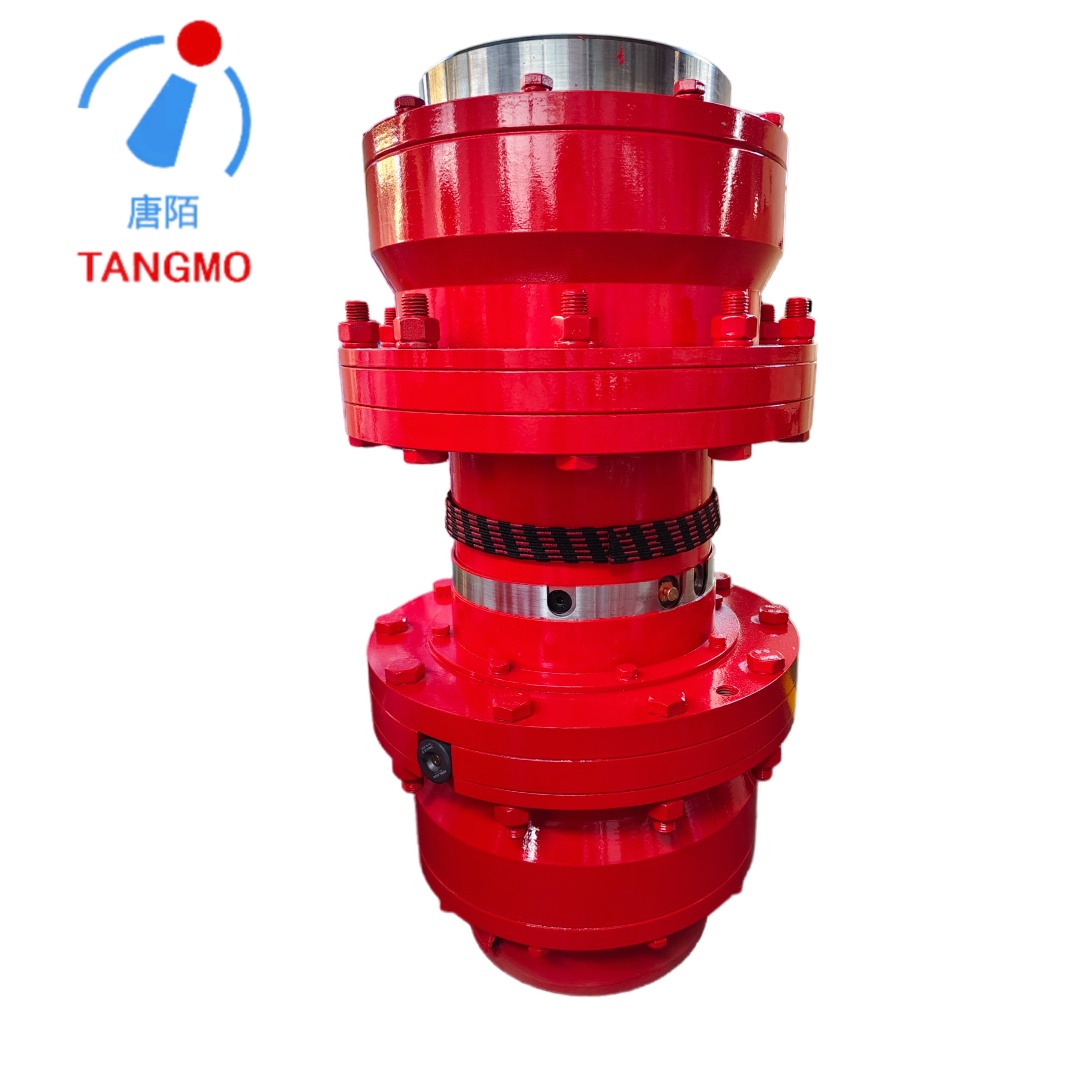

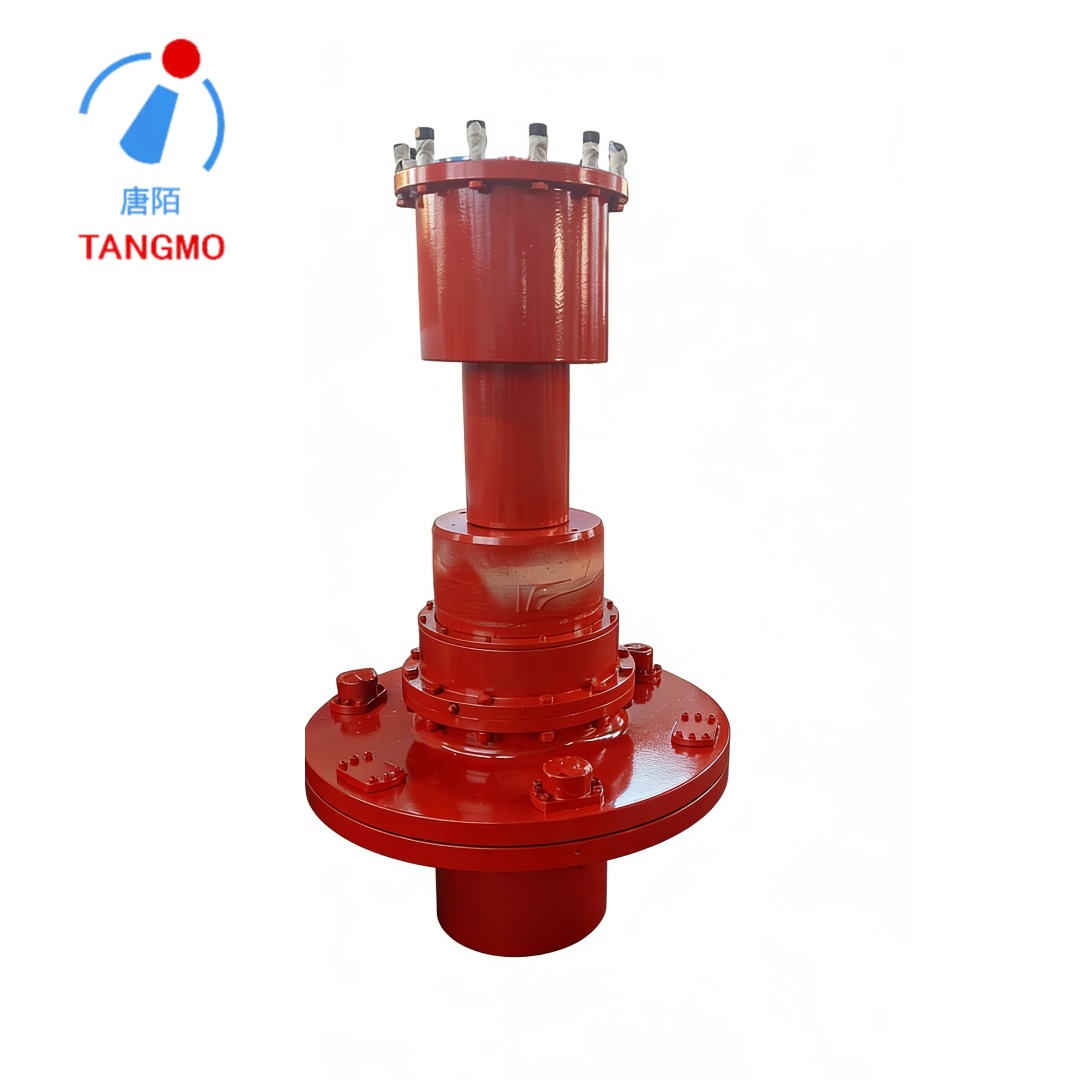

A safety coupling (also known as a torque limiting coupling, overload coupling, or shear pin coupling) is a mechanical protection device that transmits torque under normal operating conditions but disengages or slips when the torque exceeds a preset threshold. This instantaneous response protects downstream equipment (gearboxes, motors, driven machinery) from damage caused by jams, shock loads, or mechanical overloads.
Unlike standard couplings, safety couplings are sacrificial or resettable devices designed to be the weakest link in the drivetrain—failing intentionally and predictably to prevent costly damage to more expensive components.
Safety couplings operate on one of three fundamental principles:
| Principle | Mechanism | Reset Type |
|---|---|---|
| Shear pin / shear element | A precisely machined pin or bushing fractures at preset torque | Manual replacement required |
| Friction clutch | Spring-loaded friction plates slip when torque exceeds clamping force | Automatic (resets when torque drops) |
| Ball detent / spring-loaded pawl | Balls or pawls disengage from detent recesses under axial or radial force | Automatic (re-engages after rotation) |
General sequence:
Normal operation: Coupling transmits full torque with zero slip
Overload event: Torque exceeds preset limit
Activation: Coupling disengages (shear, slip, or ratchet)
Protection: Driving source (motor) continues running; driven machine stops or rotates freely
Reset: Manual (replace pin) or automatic (re-engage after torque reduction)
The simplest and most cost-effective design. One or more hardened steel pins pass through aligned hubs. Under overload, the pins shear cleanly.
| Feature | Description |
|---|---|
| Torque range | 10 N·m – 50,000+ N·m |
| Reset | Manual (replace pins) |
| Accuracy | ±10–15% of set torque (varies with pin material/heat treat) |
| Advantage | Low cost; simple; no wear under normal operation |
| Disadvantage | Requires pin stock inventory; downtime for replacement |
Spring-loaded balls engage in matching detent recesses. Overload forces the balls axially out of their seats, allowing relative rotation.
| Feature | Description |
|---|---|
| Torque range | 5 N·m – 10,000 N·m |
| Reset | Automatic (re-engages after <360° rotation) |
| Accuracy | ±5–10% of set torque |
| Advantage | No parts to replace; immediate reset |
| Disadvantage | Wear over many cycles; not suitable for reversing drives (hunting) |
Spring-loaded friction discs transmit torque via clamping force. Overload causes continuous slip until torque drops below the set point.
| Feature | Description |
|---|---|
| Torque range | 50 N·m – 500,000+ N·m |
| Reset | Automatic (slip stops when torque reduces) |
| Accuracy | ±15–25% (affected by temperature, wear, lubrication) |
| Advantage | Handles sustained overloads; adjustable torque |
| Disadvantage | Generates heat during slip; friction surfaces wear |
Non-contact torque transmission via magnetic fields. Overload causes magnetic slip without mechanical wear.
| Feature | Description |
|---|---|
| Torque range | 0.1–500 N·m |
| Reset | Automatic (smooth slip) |
| Accuracy | ±3–5% |
| Advantage | No contact wear; smooth overload behavior; cleanroom compatible |
| Disadvantage | Limited torque capacity; higher cost |
| Parameter | Shear Pin | Ball Detent | Friction | Magnetic |
|---|---|---|---|---|
| Torque capacity (max) | 50,000 N·m | 10,000 N·m | 500,000 N·m | 500 N·m |
| Speed limit | 5,000 RPM | 10,000 RPM | 20,000 RPM | 15,000 RPM |
| Torque accuracy | ±10–15% | ±5–10% | ±15–25% | ±3–5% |
| Overload response time | <1 ms | <2 ms | <5 ms | <1 ms |
| Resettable | No (replace pin) | Yes (auto) | Yes (auto) | Yes (auto) |
| Backlash | Low (pin fit) | Low (detent) | Zero (preload) | Zero |
| Maintenance | Replace pins | Clean; replace springs | Replace friction discs | None |
| Cost (relative) | Low | Medium | Medium–High | High |
Shear pins: Torque determined by pin diameter, material (hardened tool steel), and number of pins
Ball detent: Adjustable spring preload (threaded collar or belleville washers)
Friction: Adjustable clamping nut with locknut or hydraulic pressure
Factory calibration traceable to torque standards
| Indication Type | Method |
|---|---|
| Mechanical | Proximity switch detects axial displacement (ball detent) or relative rotation |
| Electrical | Limit switch or inductive sensor triggered upon disengagement |
| Visual | Colored indicator ring or flag visible through inspection window |
| Remote | PLC input from sensor; machine stops or alarms |
Re-engagement occurs automatically when overload is cleared
Ball detent: Balls snap back into detents after <360° relative rotation
Friction: Slip stops; normal torque transmission resumes
No manual intervention required (unlike shear pin)
After shear pin failure: Driven shaft completely decouples (no torque transmission)
Ball detent: Torque drops to near zero during disengagement
Friction: Continuous slip at set torque (generates heat)
Designed to protect: Gears, bearings, rolls, screw conveyors, elevators, mixers
| Failure Mode | Root Cause | Preventive Measure |
|---|---|---|
| Premature pin shear | Torque setting too low; fatigue from cycling | Set at 1.5–2× normal operating torque; use rated pins only |
| Pin does not shear (overload) | Pin too large; wrong material | Calculate precisely; test with torque wrench |
| Ball detent wear (reduced torque) | Repeated overload events; poor lubrication | Use hardened balls/seats; set torque higher; lubricate per OEM |
| Friction disc glazing | Excessive heat during prolonged slip | Use larger coupling; add temperature sensor; limit slip duration |
| False triggering (vibration) | Shock loads near set point | Increase set torque by 20%; use damping element |
| Failure to re-engage | Debris in detent; broken springs | Clean regularly; replace springs every 5,000 hours |
| Industry | Application | Recommended Type |
|---|---|---|
| Material handling | Screw conveyors, bucket elevators (jams) | Shear pin (low cost) |
| Mining & aggregate | Crushers, vibrating feeders | Ball detent (reversible) |
| Steel & rolling mills | Run-out tables, coilers (high shock) | Friction (heavy-duty) |
| Packaging | Bottle fillers, labelers (fragile loads) | Magnetic (smooth slip) |
| Machine tools | Drawbar mechanisms, index tables | Ball detent (compact) |
| Wind turbines | Pitch drives, yaw drives | Friction (adjustable) |
| Marine | Deck machinery, winches | Shear pin (corrosion-resistant) |
| Automated lines | Pick-and-place robots (collision protection) | Magnetic or ball detent |
When specifying a safety coupling, determine:
| Criterion | Key Questions |
|---|---|
| Normal operating torque (T_n) | Steady-state torque at driven shaft (N·m or lb·in) |
| Set torque (T_set) | Typically 1.5–2.0 × T_n for smooth loads; 2.5–3.5 × T_n for shock loads |
| Peak transient torque | Motor starting torque, reversing impacts, stall torque |
| Speed (RPM) | Affects centrifugal forces (ball detent) and heat dissipation (friction) |
| Inertia ratio | Driven inertia / motor inertia (affects overshoot during overload) |
| Reset requirement | Manual (shear pin) vs. automatic (ball detent/friction) |
| Environment | Temperature, dust, moisture, washdown, explosive atmosphere |
| Shaft mounting | Bore size, keyway, taper lock, spline, shrink disc |
| Indication needed | Remote sensor (PLC), local visual, or none |
