1. Introduction: The Cornerstone of Heavy Section Rolling

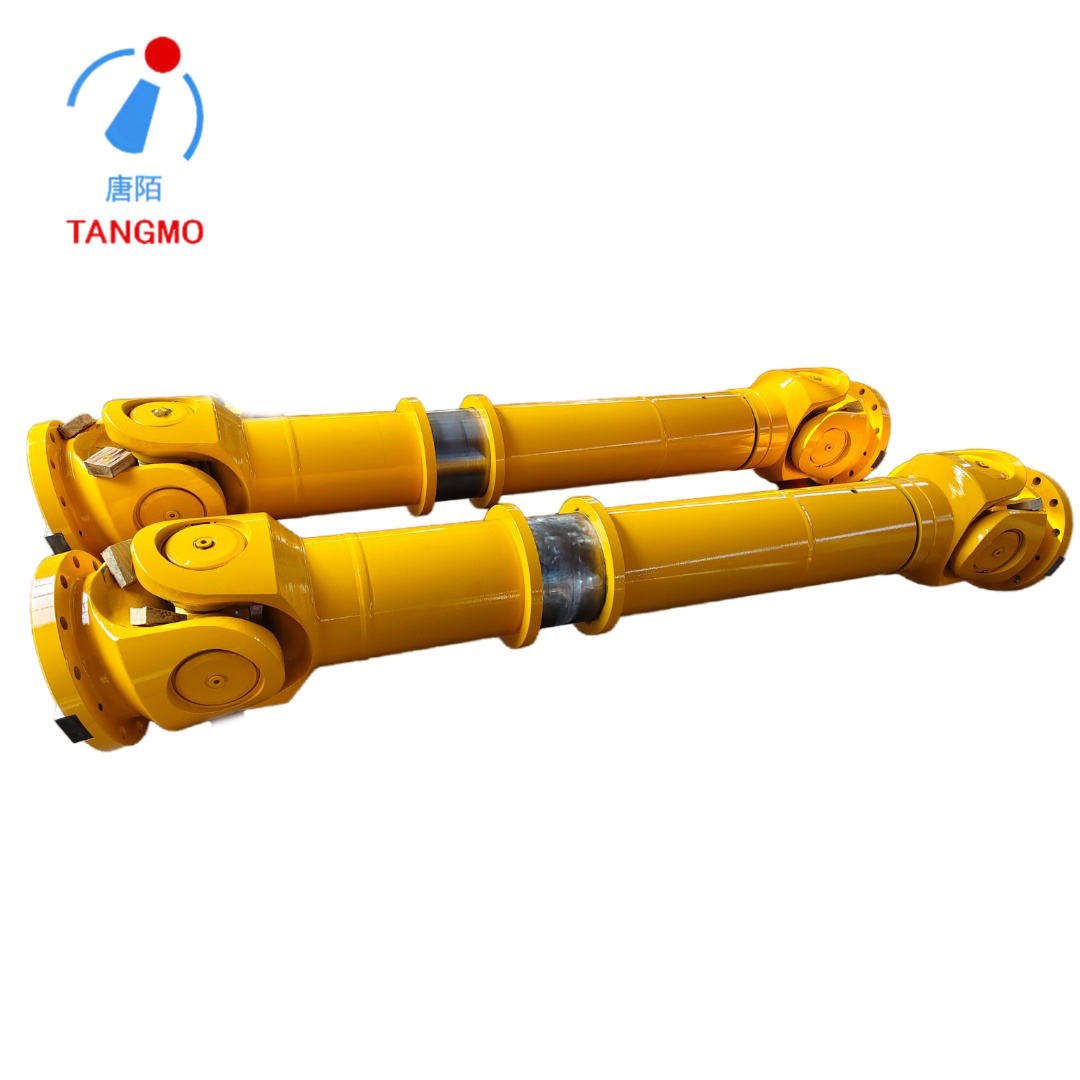

In the structural steel manufacturing process, the Breakdown (BD) mill is a critical, high-powered rolling stand used primarily as the first stage in the production of large sections such as beams, heavy channels, and rails. As a reversing mill, it processes large cross-section ingots or blooms, reducing them through multiple passes to create an intermediate shape for subsequent finishing stands. This operation is characterized by extreme torque demands, severe shock loads during bite-in, and high rolling forces at elevated temperatures. The drive system must be exceptionally robust to withstand these punishing cycles. At the heart of this system lies the SWC-Type Universal Drive Shaft, a heavy-duty cross-shaft coupling specifically designed for the rigorous demands of a Breakdown Mill.
2. Mechanical Design and Construction
The SWC series is defined by its "big bell" or integral fork head design. Unlike older couplings that rely on bolted connections, the SWC employs a monolithic fork structure, forged from high-strength alloy steel. This eliminates the risk of bolt loosening or fatigue fracture, which is critical in high-vibration environments.
2.1 Core Components
Integral Fork Heads: Forged from alloy steel (e.g., 35CrMo/42CrMo), this monolithic structure offers superior structural integrity and eliminates the risk of bolt loosening or fatigue fracture, which is a common failure mode in reversing mill applications.
Cross Bearing Assembly: The core articulation point consists of a cruciform journal supported by heavy-duty bearings. These bearings are surface-carburized and quenched to achieve a high surface hardness (HRC 58-62) while maintaining a tough, shock-resistant core.
Telescopic Spline Assembly: To accommodate thermal expansion of the rolls and deflection of the mill housing, the BD mill shaft incorporates a precision-matched spline pair. This allows for axial displacement while maintaining continuous torque transmission.
Flange Connections: High-strength flanges secure the shaft to the gearbox and the mill rolls, transmitting power via friction and high-grade bolts.
2.2 Material Specifications and Heat Treatment
The extreme loads require precise material engineering:
Fork Head: 42CrMo or similar alloy steel, quenched and tempered (HRC 28-32) for high tensile strength and fatigue resistance.
Cross Journal: 20CrMnTi or 35CrMo, carburized and quenched (Surface HRC 58-62) for wear resistance, with a tough core to absorb impacts.
Fasteners: High-strength bolts (Class 10.9 or higher) are used to secure the flanges under high preload.
3. Why SWC Shafts Are Essential for BD Mills
3.1 Extreme Angular and Axial Misalignment Compensation
The BD mill housing deflects significantly under high rolling loads, and the rolls expand considerably due to heat. SWC shafts accommodate angular misalignments of up to 15° to 25° . The telescopic spline provides the necessary axial "length compensation" to handle thermal expansion without transmitting damaging thrust loads to the gearbox bearings.
3.2 High Torque Density and Shock Load Resistance
BD mills require massive torque to break down large ingots. SWC shafts offer higher torque capacity than other coupling types with the same rotational diameter. According to the JB/T5513-91 standard, reversing roughing mills fall under the "Extra Heavy Impact Load" classification, requiring a service factor (K) of 3 to 5 to ensure adequate bearing life and shaft strength.
3.3 High Transmission Efficiency and Durability
The rolling bearing design provides high transmission efficiency (98%-99.8%), significantly reducing power loss. Furthermore, the elimination of bolted connections via the integral fork head design extends the service life by an estimated 30% to 50% compared to traditional bolted couplings.
4. Installation and Maintenance Considerations
4.1 Lubrication Strategy
Proper lubrication is critical in the high-heat, high-contaminant environment of a BD mill. It is recommended to use 2# Industrial Lithium Grease or 2# Molybdenum Disulfide Calcium Grease. Lubrication intervals should be frequent: in high-temperature conditions, weekly greasing is advised.
4.2 Regular Inspection and Service Life Practices
To maximize the service life of the coupling in a BD mill:
Cross Shaft Rotation: During major maintenance, rotate the cross shaft 180° to distribute wear evenly across the bearing surfaces, effectively doubling the life of the cross assembly.
Seal Integrity: Regularly inspect seals for heat damage or hardening to prevent lubricant loss and scale ingress.
5. Conclusion
The SWC-Type universal drive shaft is the optimal engineering solution for the harsh, high-torque requirements of a Breakdown (BD) Mill. Its integral fork head design provides the structural integrity required to survive extreme impact loads, while its high angular and axial compensation capabilities accommodate the dynamic misalignment of heavy reversing passes. By utilizing high-strength alloy steels and precision heat treatment, the SWC shaft ensures the durability and reliability necessary for the demanding primary breakdown stage of structural steel production.
