An In-depth Explanation of Gear Spindles for Steel Making Bar and Wire Rod Roughing Mills

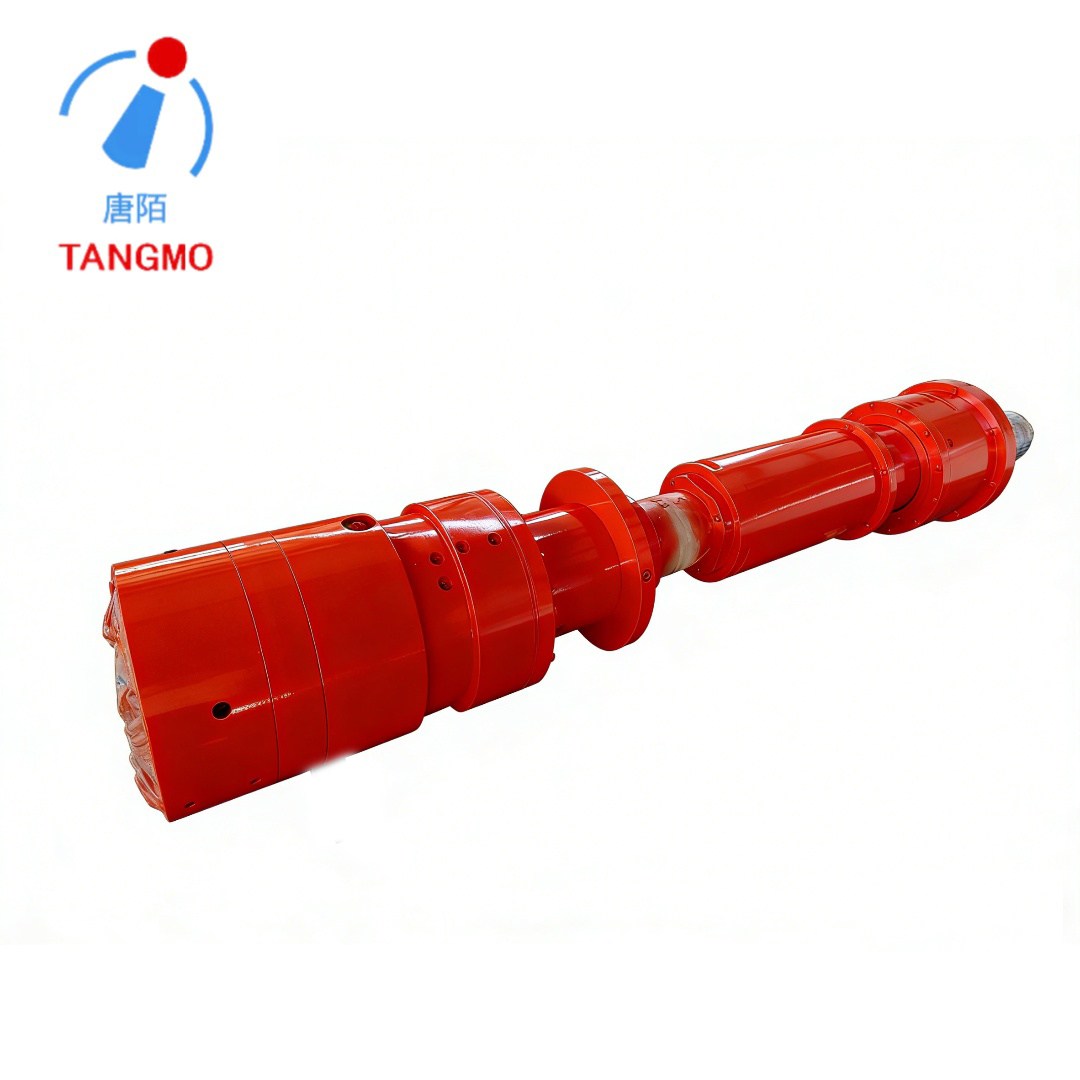

1. Introduction: The High-Torque Power Transmission Solution for Primary Rolling

In the steel bar and wire rod rolling process, the roughing mill (also known as a breakdown mill) performs the critical initial reduction of a cast billet into an intermediate section suitable for subsequent rolling passes. This equipment operates at the extreme limits of mechanical engineering—handling billets at temperatures exceeding 1100°C, with correspondingly enormous rolling forces and torque demands. The roughing mill must withstand severe impact loads during billet entry, accommodate significant structural deflections, and maintain reliable operation under continuous thermal and mechanical stress. At the core of this primary drive system lies the gear spindle—a specialized coupling assembly engineered specifically for the unique combination of high torque, precision alignment, and reliable performance required in modern bar and wire rod roughing mill applications .

Unlike universal joint shafts which rely on cross bearings, gear spindles (also known as curved tooth gear couplings or drum gear couplings) utilize precision-machined gear teeth to transmit torque while accommodating misalignment through the unique geometry of curved tooth profiles. This design philosophy makes them particularly well-suited for the high-torque, high-speed environment of bar and wire rod roughing operations .

2. The Roughing Mill Process and Its Drive System Requirements

2.1 Overview of Roughing Mill Operations

The bar and wire rod roughing mill transforms cast billets (typically 120mm to 200mm square) into smaller, elongated sections through multiple passes. Key characteristics of the roughing process include:

• High Temperature Rolling: Billets are rolled at temperatures between 1000°C and 1150°C

• Multiple Passes: The billet passes through several stands (typically 6 stands for roughing) in sequence

• High Reduction: Significant cross-sectional area reduction in each pass

• Severe Impact Loads: Peak loads during initial billet bite into the rolls

2.2 Drive System Requirements

The roughing mill drive system must satisfy several critical requirements:

• High Torque Transmission: Sufficient torque for plastic deformation of steel at elevated temperatures

• Impact Resistance: Ability to withstand shock loads during billet entry

• Precision Alignment: Accurate torque transmission for consistent product quality

• Axial Compensation: Thermal expansion of rolls and shafts during continuous operation

• Environmental Durability: Resistance to high radiant heat, cooling water, scale, and dust

• Reliability: Continuous operation capability with minimal downtime

3. Mechanical Design and Construction for Roughing Mill Applications

3.1 Fundamental Structure and Key Components

The gear spindle for bar and wire rod roughing mill applications consists of several precision-engineered components working in concert to transmit power reliably under demanding conditions:

• External Gear Hub (Inner Race): The half-coupling mounted on the drive shaft (gearbox output or roll shaft) featuring externally cut teeth with a distinctive fully-crowned profile. The teeth are precision-ground to a spherical surface centered on the gear axis, creating the characteristic curved shape that enables angular misalignment compensation while maintaining full load-carrying capacity .

• Internal Gear Sleeve (Outer Race): The mating component with internally cut gear teeth that mesh with the external gear hub. The sleeve encloses the gear meshing area and contains the lubrication system. For heavy-duty roughing mill applications, this housing is typically fabricated from high-strength alloy steel with appropriate heat treatment.

• Precision-Matched Spline Assembly: For roughing mill configurations requiring axial compensation, a precision-matched spline pair enables smooth axial movement. This feature accommodates thermal expansion of the rolls and shafts, stand adjustments for different billet sizes, and any misalignments between the drive motor and the roll stand during operation .

• Flange Connections: High-strength flanges with precision-machined mounting faces provide the interface to the gearbox and the roll stand. Power is transmitted through a combination of end-face keys and friction between mating surfaces, secured by high-grade bolts.

• Advanced Sealing Systems: Multi-barrier sealing arrangements protect the internal gear teeth from the hostile environment of the roughing mill, including cooling water, scale, and airborne particulates. Effective sealing is essential for maintaining lubricant retention and preventing contaminant ingress.

3.2 The Fully-Crowned Tooth Geometry

The defining characteristic of the gear spindle is the fully-crowned tooth profile—a sophisticated engineering solution to the challenge of angular misalignment under high torque . Unlike straight teeth that would experience edge loading when misaligned, the fully-crowned profile provides several critical advantages:

• Spherical Tooth Surface: The teeth are ground to a spherical radius centered on the gear axis, allowing the hub to pivot relative to the outer sleeve while maintaining progressive contact across the tooth flank .

• Optimized Contact Pattern: When the spindle operates at an angle—typically up to ±1.5° for roughing mill applications —the spherical tooth surface maintains contact in the central portion of the tooth, avoiding edge loading that would lead to premature failure.

• Stress Distribution: The crowned geometry distributes contact stresses uniformly across the tooth surface, significantly reducing stress concentration at tooth edges and extending fatigue life.

• Reduced Vibration: The optimized tooth geometry results in reduced system vibration, smoother roll operation, and lower shock loads, contributing to improved product quality.

3.3 Comparison: Curved Tooth vs. Alternative Designs

For roughing mill applications, the selection between gear spindles and universal joint shafts depends on specific operating requirements :

For roughing mill applications where angular misalignment is controlled (typically within ±1.5°), gear spindles offer the optimal combination of torque density, smooth operation, and reliability. Their superior vibration characteristics make them particularly suitable for high-speed roughing operations .

3.4 Material Specifications and Heat Treatment

The demanding roughing mill environment requires exceptional material properties to ensure long service life under continuous operation:

The gear teeth may undergo additional surface hardening treatments to achieve optimal wear resistance and fatigue strength, with surface hardness typically exceeding HRC 55-60 for the gear tooth flanks.

3.5 Dimensional and Performance Range

Gear spindles for bar and wire rod roughing mill applications are available in a range of sizes to suit various power requirements. Typical specifications include :

• Rotational Diameter: 200 mm to 760 mm

• Nominal Torque Range: 31.5 kN·m to 1600 kN·m

• Maximum Working Angle: ±1.5°

• Operating Temperature Range: -20°C to +80°C

• Installation Orientation: Horizontal or vertical

• Maintenance Interval: 360 hours

For specific roughing mill applications such as the GSL-Z475 series, specialized designs are available with rotational diameters up to 475mm for the roll side and 480mm for the gearbox side .

4. Why Gear Spindles Are Essential for Bar and Wire Rod Roughing Mills

4.1 Precision Angular Misalignment Compensation

Bar and wire rod roughing mills experience significant misalignment conditions due to multiple closely spaced stands, thermal expansion of rolls and shafts, and structural deflection under load. Gear spindles are engineered to accommodate angular misalignment up to ±1.5° , allowing for smooth power transmission even as components undergo thermal expansion during continuous operation.

This angular compensation capability is particularly important in roughing mills where:

• Billets of varying sizes must be accommodated

• Components undergo thermal expansion during prolonged campaigns

• The mill housing deflects under the extreme forces of primary reduction

4.2 High Torque Capacity in a Compact Envelope

The roughing mill represents the highest torque application in the entire bar and wire rod production process, requiring enormous power to plastically deform steel billets at elevated temperatures. Gear spindles offer exceptional torque density, with capacity up to 1600 kN·m depending on size and heat treatment . This characteristic is particularly advantageous for roughing mill applications where:

• The drive must handle extreme rolling forces for primary billet reduction

• Space constraints around the roughing mill stand limit available envelope for drive components

• The drive system must withstand continuous operation under maximum load

• Multiple stands require synchronized power transmission

4.3 Smooth Operation and Vibration Control

Drive system vibrations in roughing mills can affect billet geometry and subsequent product quality. Gear spindles are designed for smooth operation with minimal vibration generation . The precision-engineered components provide:

• Reduced torsional vibrations that could otherwise cause dimensional variations

• Stable power transmission even under extreme load variations during billet entry and exit

• Improved billet surface quality through consistent torque application

• Enhanced dimensional accuracy by minimizing speed variations during roughing passes

As noted in industry analysis, while universal joint shafts have higher angular capacity, gear spindles are preferred for applications where smooth operation and minimal vibration are critical .

4.4 Precision-Matched Spline for Smooth Axial Movement

The telescopic spline assembly in gear spindles features precision-matched spline pairs that ensure smooth axial movement . This design provides:

• Smoother Sliding: Reduced friction and wear during axial compensation

• Gear Pair Tooth Tip Positioning: Stable operation through precise tooth engagement

• Reduced Backlash: Minimized rotational play for accurate torque transmission

4.5 High Transmission Efficiency

In energy-intensive roughing mill operations, where main drive motors may consume several megawatts of power, transmission efficiency directly impacts operating costs. Gear spindles provide high transmission efficiency through their positive-locking, all-metallic construction, minimizing power losses compared to alternative coupling technologies.

4.6 Environmental Durability

The bar and wire rod roughing mill environment presents the most challenging conditions in the long products industry:

• Radiant heat from the hot billet (temperatures up to 1100-1200°C)

• Massive volumes of cooling water for roll cooling

• Airborne scale and dust from the rolling process

• High impact loads and continuous vibration

Gear spindles are engineered to withstand these conditions through advanced sealing systems that effectively prevent external pollutants from entering and internal lubricant leakage.

4.7 Reliability and Service Life

The combination of robust design, quality materials, and proper maintenance results in exceptional service life. With appropriate care, gear spindles can provide years of reliable operation in roughing mill service. Key factors contributing to longevity include:

• Proper Lubrication: Regular lubrication at recommended intervals (typically every 360 operating hours)

• Seal Integrity: Regular inspection and timely replacement of worn seals

• Fatigue Resistance: High-strength materials and stress-optimized geometry

5. Installation and Maintenance Considerations for Roughing Mill Applications

5.1 Installation Requirements

Proper installation is critical for achieving design life and reliable operation in roughing mill service:

• Ensure compatibility with shaft diameters and connection types

• Clean all mounting faces thoroughly before assembly

• Verify initial alignment within manufacturer-specified tolerances

• Use only high-strength fasteners meeting appropriate specifications

• Follow specified bolt tightening sequences and torque values

• Verify proper lubrication before initial operation

For roughing mills with alternating horizontal and vertical stand configurations, specialized installation considerations apply for vertical stand applications .

5.2 Lubrication Strategy

Lubrication is the single most important maintenance factor for gear spindle longevity, particularly in roughing mill applications where continuous operation and environmental contamination pose challenges :

• Lubricant Type: High-quality extreme-pressure (EP) grease suitable for high-temperature, high-load applications

• Application Frequency: Regular intervals based on operating hours (typically every 360 operating hours)

• Procedure: Apply through grease fittings until fresh lubricant exits the bearing seals, ensuring complete replenishment and contaminant purging

• Spline Lubrication: Ensure adequate lubrication of spline sections to prevent fretting wear

• Seal Inspection: Regularly check seal integrity; replace damaged or aged seals immediately

5.3 Regular Inspection and Condition Monitoring

Periodic inspection helps detect early signs of wear or damage before catastrophic failure occurs:

• Visual Inspection: Check seals for damage or leakage; inspect for any signs of distress, rust, or mechanical damage

• Vibration Monitoring: Observe for abnormal vibration during operation, which may indicate gear tooth wear or misalignment

• Temperature Monitoring: Monitor housing temperatures for signs of lubrication failure or incipient damage

• Backlash Measurement: Monitor changes in gear mesh backlash, which may indicate tooth wear

• Bolt Tightness: Verify that all flange bolts remain properly torqued

5.4 Extended Service Life Practices

• Regular Lubrication: Adhere to recommended 360-hour maintenance intervals

• Seal Replacement: Replace seals showing signs of aging, hardening, or damage promptly

• Avoid Overload: Prevent prolonged operation under overload conditions that could accelerate fatigue

• Maintenance Records: Maintain detailed records of lubrication, inspections, and component replacements to optimize maintenance intervals

5.5 Safety Considerations

• Install appropriate safety guards in all areas where rotating shafts could pose personnel risks

• Follow proper lockout/tagout procedures during maintenance

• Use appropriate lifting equipment for heavy shaft assemblies

• Never operate with known defects or beyond recommended wear limits

6. Applications in Bar and Wire Rod Roughing Mills

6.1 Main Drive Configurations

In bar and wire rod roughing mills, gear spindles are primarily used in the following drive configurations:

• Motor-to-Gearbox Connection: Connecting the main drive motor to the reduction gearbox, accommodating any misalignment between these components

• Gearbox-to-Roll Stand Connection: Transmitting power from the gearbox output to the roughing mill stand

• Continuous Roughing Mill Drives: Power transmission for multi-stand roughing trains

• Horizontal and Vertical Stand Drives: In mills with alternating horizontal and vertical stand configurations, gear spindles provide reliable power transmission for both orientations

6.2 Roughing Mill Types and Gear Spindle Applications

Gear spindles find application across the full spectrum of bar and wire rod roughing equipment:

• Horizontal Roughing Stands: Traditional configuration for billet breakdown

• Continuous Roughing Trains: Multiple stands in sequence for progressive reduction (typically 6 stands for roughing)

• Short-Stress Path Rolling Mills: High-rigidity mills requiring precise torque transmission

For vertical stand applications, specialized TGZ-type telescopic curved tooth gear couplings are often used .

6.3 Dynamic Balancing Requirements

According to manufacturing standards, gear spindle assemblies must undergo dynamic balancing testing after assembly to ensure proper operation at high speeds . Precision G6.3 dynamic balance levels are typically required for high-speed bar and wire rod roughing mill applications.

7. Common Failure Modes and Prevention

Industry analysis has identified several common failure modes for roughing mill drive components :

8. Comparison with Universal Joint Shafts for Roughing Mills

For bar and wire rod roughing mill applications where smooth operation and minimal vibration are critical, gear spindles offer distinct advantages. Where significant angular misalignment is required (8-12°), universal joint shafts are typically preferred .

9. Future Developments

The evolution of gear spindle technology continues with several emerging trends relevant to bar and wire rod roughing mill applications:

• Higher Torque Density: Advanced tooth geometries and materials increasing torque capacity within the same envelope

• Improved Sealing Technology: Enhanced seal designs for longer life in contaminated mill environments

• Condition Monitoring Integration: Provision for online monitoring of vibration, temperature, and lubrication condition

• Extended Service Intervals: Development of lubrication systems and materials that extend maintenance intervals

• Modular Design: Standardized interface dimensions enabling quick replacement and reduced maintenance costs

10. Conclusion

The gear spindle (curved tooth gear coupling) represents a proven, precision-engineered solution for the demanding requirements of bar and wire rod roughing mills. Its unique combination of fully-crowned tooth geometry for optimized load distribution, exceptional torque capacity for primary billet reduction (up to 1600 kN·m), precision-matched spline for smooth axial movement, and smooth operation characteristics makes it an indispensable component for modern bar and wire rod roughing operations.

The defining features of gear spindles—fully-crowned teeth that maintain contact under misalignment up to ±1.5°, precision-matched spline pairs for smooth axial compensation, and high torque density in a compact envelope—make them the preferred choice for roughing mill drives where smooth operation and minimal vibration are critical.

According to industry practice, gear spindles are widely used in bar and wire rod rolling mills, with torque ranges from 31.5 kN·m to 1600 kN·m and rotational diameters from 200 mm to 760 mm . Their application in roughing mills is specifically noted across multiple manufacturer sources and industry publications, confirming their critical importance in long products production.

By understanding the mechanical principles, proper selection criteria based on application requirements, and rigorous maintenance requirements including regular lubrication at 360-hour intervals, mill operators can maximize equipment longevity, minimize costly unplanned downtime, and achieve the consistent billet quality essential for modern bar and wire rod production. The gear spindle's proven reliability in metallurgical applications, combined with its ability to perform under continuous operation and controlled misalignment conditions, makes it not merely a component, but a critical enabler of roughing mill productivity and product quality.
