An In-depth Explanation of SWC Closed Bearing Eye Type Cardan Shafts for Steel Hot Strip Roughing Mills

1. Introduction: The Cornerstone of Primary Hot Rolling

In the steel industry, the hot strip roughing mill represents the pinnacle of mechanical power transmission demands. This equipment is responsible for transforming massive, heavy slabs (often weighing over 30 tons) into an intermediate transfer bar suitable for finishing rolling. Operating at temperatures exceeding 1100°C, the roughing mill requires enormous torque to plastically deform the steel, while withstanding severe impact loads during slab entry, accommodating significant structural deflections, and maintaining reliable operation under continuous thermal and mechanical stress .

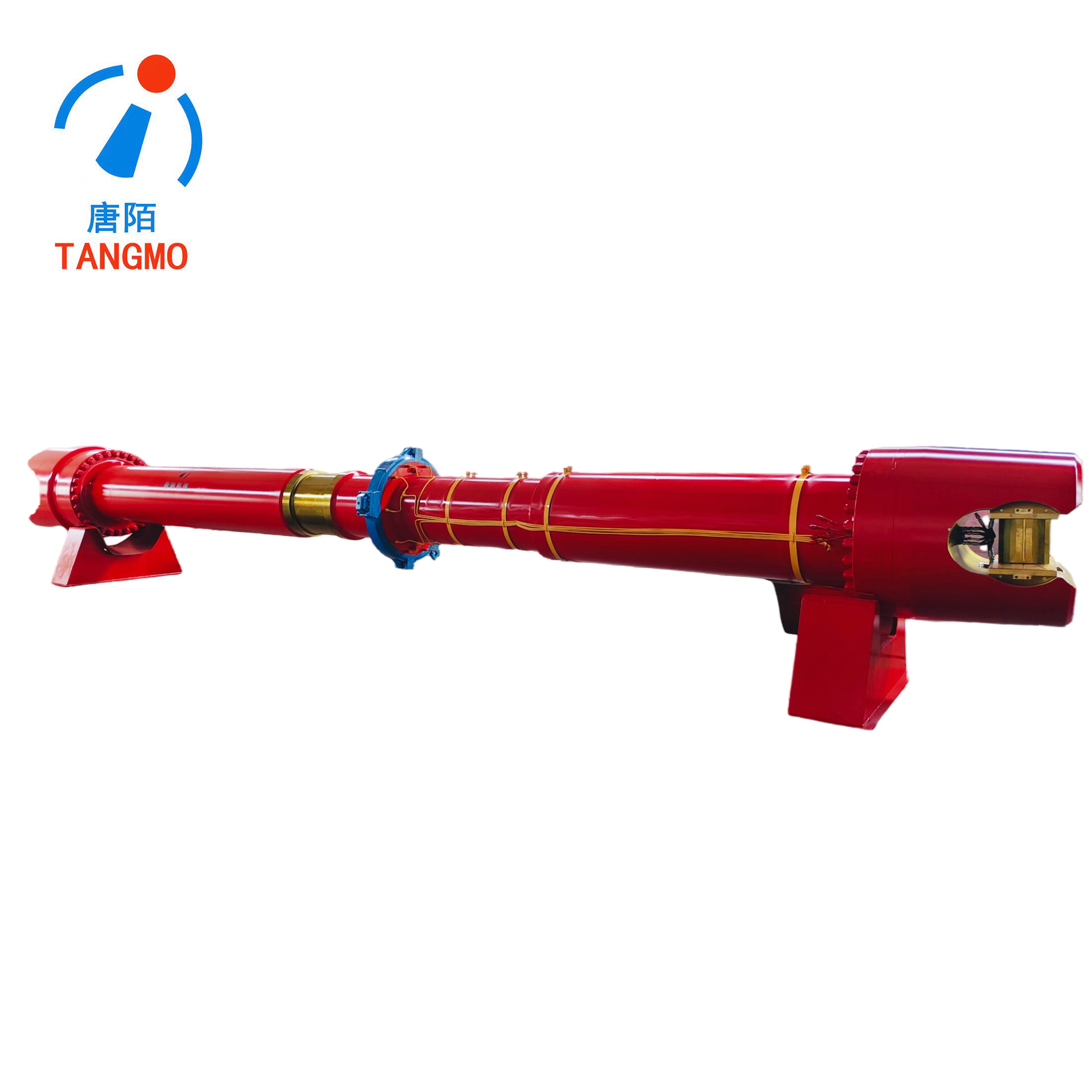

At the core of this primary drive system lies the SWC-Type Universal Drive Shaft, a robust cross-shaft universal coupling specifically engineered for the unique combination of extreme torque, heavy impact loading, and reliable performance required in modern hot strip roughing mill applications . The SWC series is recognized in the industry for its application in rolling mill main drives, offering high torque capacity and exceptional reliability even under the most demanding conditions .

2. Mechanical Design and Construction for Roughing Mill Applications

2.1 Fundamental Structure and Key Components

The SWC-type universal drive shaft for roughing mill applications consists of several precision-engineered components working in concert to transmit power reliably under extreme conditions :

• Integral Fork Head: This is the defining feature of the SWC series . Unlike traditional designs that use bolted bearing caps, the SWC fork head is forged as a single, monolithic piece from high-strength alloy steel (such as 35CrMo or 42CrMo) . This "no-bolt" structure completely eliminates the risk of bolt loosening or fatigue fracture, which is a critical safety and reliability feature in high-torque, high-vibration roughing mill environments .

• Cross Bearing Assembly: The core articulation point features a cruciform journal supported by needle or cylindrical roller bearings. The cross shaft is typically manufactured from surface-carburized alloy steel (e.g., 20CrMnTi), achieving a high surface hardness (HRC 58-62) while maintaining a tough, shock-resistant core . The bearings are sealed to retain lubricant and exclude contaminants.

• Telescopic Spline Assembly (伸缩花键副): For roughing mill configurations requiring axial compensation, a precision-matched spline pair (shaft and sleeve) enables smooth axial movement. This feature accommodates thermal expansion of the rolls and shafts, as well as any axial movement caused by rolling forces . Specialized models like the SWC-CH (long telescopic welded type) offer extended axial compensation for stands requiring substantial travel .

• Flange Connections: High-strength flanges with precision-machined mounting faces provide the interface to the gearbox and the roll stand . Power is transmitted through a combination of end-face keys and friction between the mating surfaces, secured by high-strength bolts and self-locking nuts .

2.2 SWC Series Configurations

SWC-type universal shafts are available in multiple configurations to suit different roughing mill installation requirements. According to the JB/T5513-1991 standard, the SWC series includes the following configurations :

2.3 Material Specifications and Heat Treatment

The demanding roughing mill environment requires exceptional material properties to ensure long service life under continuous operation :

The use of high-quality alloy steel forgings and specialized heat treatment processes gives SWC shafts extremely high torsional strength and wear resistance, with bearing capacity significantly higher than ordinary cardan shafts .

2.4 Dimensional and Performance Range

SWC-type universal shafts are available in a comprehensive range of sizes to suit various roughing mill power requirements. The standard series covers rotational diameters from 100mm to 620mm, with corresponding performance capabilities :

• Rotational Diameter (D): 100 mm to 620 mm

• Nominal Torque (Tn): 1.25 kN·m to 1000 kN·m (torque at 50% of yield strength)

• Fatigue Torque (Tf): 0.63 kN·m to 500 kN·m (permissible torque under reversing loads)

• Maximum Deflection Angle (β): 15° to 25° (model-dependent)

• Transmission Efficiency: 98% to 99.9%

• Noise Level: 30-40 dB(A) during normal operation

For typical hot strip roughing mill applications, larger models in the SWC285 to SWC550 range are commonly specified, with nominal torques from 90 kN·m to 710 kN·m.

3. Why SWC Shafts Are Essential for Hot Strip Roughing Mills

3.1 Extreme Angular Misalignment Compensation

Hot strip roughing mills experience significant misalignment conditions due to the massive forces involved in slab reduction. The mill housing deflects under extreme loads, rolls are adjusted for different slab thicknesses, and components undergo thermal expansion during continuous operation. SWC shafts are engineered to accommodate angular misalignment up to 15° to 25° , allowing for smooth power transmission even under these dynamic conditions .

This angular compensation capability eliminates the need for ultra-precise static alignment and reduces stress on bearings, gearboxes, and drive motors throughout the roughing mill drive train .

3.2 High Torque Density and Impact Resistance

The roughing mill represents the highest torque application in the hot strip rolling process. SWC shafts offer greater torque capacity than other coupling types with the same rotational diameter . This characteristic is particularly advantageous where space constraints limit the available envelope for drive components. The integral fork head construction provides a robust, bolt-free structure that withstands the extreme impact loads during slab entry .

3.3 High Transmission Efficiency and Energy Savings

SWC universal shafts achieve transmission efficiencies of 98.7% to 99.9% . For large roughing mill drives consuming several megawatts of power, this efficiency translates into significant energy savings, reducing electrical consumption by an estimated 5-15% compared to older coupling technologies . This efficiency also means less power is lost as heat, contributing to a more stable drive system.

3.4 Smooth Operation and Vibration Damping

Drive system vibrations in roughing mills can affect slab geometry and subsequent product quality. SWC shafts are designed for smooth operation with low noise levels (30-40 dB(A)) . The precision-engineered components provide :

• Reduced torsional vibrations that could otherwise cause dimensional variations

• Stable power transmission during slab entry and exit

• Improved slab surface quality through consistent torque application

3.5 Axial Compensation for Thermal Expansion

The roughing process generates enormous heat, causing significant thermal expansion of rolls and shafts. The telescopic spline assembly in SWC-BH and SWC-CH types provides the necessary axial compensation to accommodate this movement without transmitting damaging thrust loads into bearings or gearboxes. For long telescopic models (SWC-CH), standard stretch lengths can reach up to 500mm .

3.6 Environmental Durability

The hot strip roughing mill environment presents one of the most challenging conditions in the steel industry :

• Radiant heat from the hot slab (temperatures up to 1100-1200°C)

• Massive volumes of cooling water for roll cooling

• Airborne scale and dust from the rolling process

• Heavy impact loads and continuous vibration

SWC shafts are engineered to withstand these conditions through advanced sealing systems, corrosion protection, and high-strength materials with appropriate heat treatment .

4. Installation and Maintenance Considerations

4.1 Installation Requirements

Proper installation is critical for achieving design life and reliable operation in roughing mill service :

• Clean all mounting faces thoroughly before assembly

• Check keyway and mating surface compatibility

• Verify initial alignment within manufacturer-specified tolerances

• Use only high-strength fasteners (Class 10.9 bolts, Class 10 nuts)

• Insert bolts from the mating equipment side; tighten from the shaft flange side

• Follow specified bolt tightening sequences and torque values

• After installation, operate for one shift and re-torque all fasteners; repeat for several shifts until no loosening occurs

4.2 Lubrication Strategy

Lubrication is the single most important maintenance factor for SWC shaft longevity, particularly in roughing mill applications where extreme loads and environmental contamination pose severe challenges :

• Lubricant Type: 2# industrial lithium-based grease or 2# molybdenum disulfide calcium-based grease

• Application Frequency:

  • Normal continuous operation: Every 500 operating hours

  • Intermittent operation: Every 2 months

  • High-temperature conditions: Weekly

• Procedure: Remove oil hole screw from bearing end face; inject with high-pressure grease gun until fresh grease exits the bearing seals

• Spline Lubrication: Ensure adequate lubrication of telescopic spline sections to prevent fretting wear

• Seal Inspection: Regularly check seal integrity; replace damaged or aged seals immediately

4.3 Regular Inspection and Extended Service Life Practices

Periodic inspection helps detect early signs of wear or damage before catastrophic failure occurs :

• Visual Inspection: Check seals for damage or leakage; inspect for any signs of distress, rust, or mechanical damage

• Vibration Monitoring: Observe for abnormal radial runout or vibration during operation

• Temperature Monitoring: Monitor bearing housing temperatures for signs of lubrication failure

• Cross Shaft Rotation: During maintenance every 3 months, rotate the cross shaft 180° to distribute wear evenly across bearing surfaces, extending service life

• Seal Replacement: Replace seals showing signs of aging, hardening, or damage promptly

• Avoid Overload: Prevent prolonged operation under overload conditions that could accelerate fatigue

5. Load Classification for Roughing Mills

According to the JB/T5513-91 standard, roughing mills fall under specific load classifications that guide coupling selection. For hot strip roughing applications, the appropriate service factor (K) must be applied in torque calculations:

The required torque capacity is determined by: Tc = T × K, where Tc is the calculation torque, T is the theoretical torque based on drive power, and K is the service factor .

6. Applications in Hot Strip Roughing Mills

SWC-type universal shafts are primarily used in the following drive configurations for hot strip roughing mills :

• Motor-to-Gearbox Connection: Connecting the main drive motor to the reduction gearbox

• Gearbox-to-Roll Stand Connection: Transmitting power from the gearbox output to the roughing mill stand

• Reversing Roughing Mill Drives: Power transmission for mills operating in reversing mode

• Scale Breaker Drives: Drives for scale breaking equipment located before the roughing stands

SWC-type universal shafts are widely recognized in the industry for applications including rolling mill main drives and auxiliary transmission systems . Their proven reliability in metallurgical applications, combined with their ability to perform under continuous operation, high temperatures, and severe impact loading conditions, makes them critical enablers of roughing mill productivity.

7. Conclusion

The SWC-type universal drive shaft represents the optimal engineering solution for the demanding requirements of hot strip roughing mills. Its unique combination of integral fork head construction for reliability, extreme torque capacity for primary slab reduction, angular flexibility for accommodating misalignment (up to 15°-25°), and environmental ruggedness makes it an indispensable component for modern hot strip production .

The defining features of the SWC series—bolt-free integral fork heads eliminating failure risks, high transmission efficiency (98.7%-99.9%) for energy savings, comprehensive compensation capabilities, and lower noise levels (30-40 dB(A)) for improved working conditions—make it the preferred choice for roughing mill drives where maximum torque capacity and impact resistance are required .

By understanding the mechanical principles, proper selection criteria based on application requirements, and rigorous maintenance requirements including proper lubrication and periodic cross shaft rotation, mill operators can maximize equipment longevity, minimize costly unplanned downtime, and achieve the reliable, high-quality production essential for modern hot strip steel manufacturing .
