1. Introduction: The Precision Power Link in High-Speed Finishing
In the steel industry, the modernization of bar and wire rod finishing mills is a critical engineering challenge aimed at enhancing product quality, increasing production speed, and reducing operational downtime. This process requires upgrading the drive train to handle higher torques and speeds while maintaining precise synchronization across multiple stands.

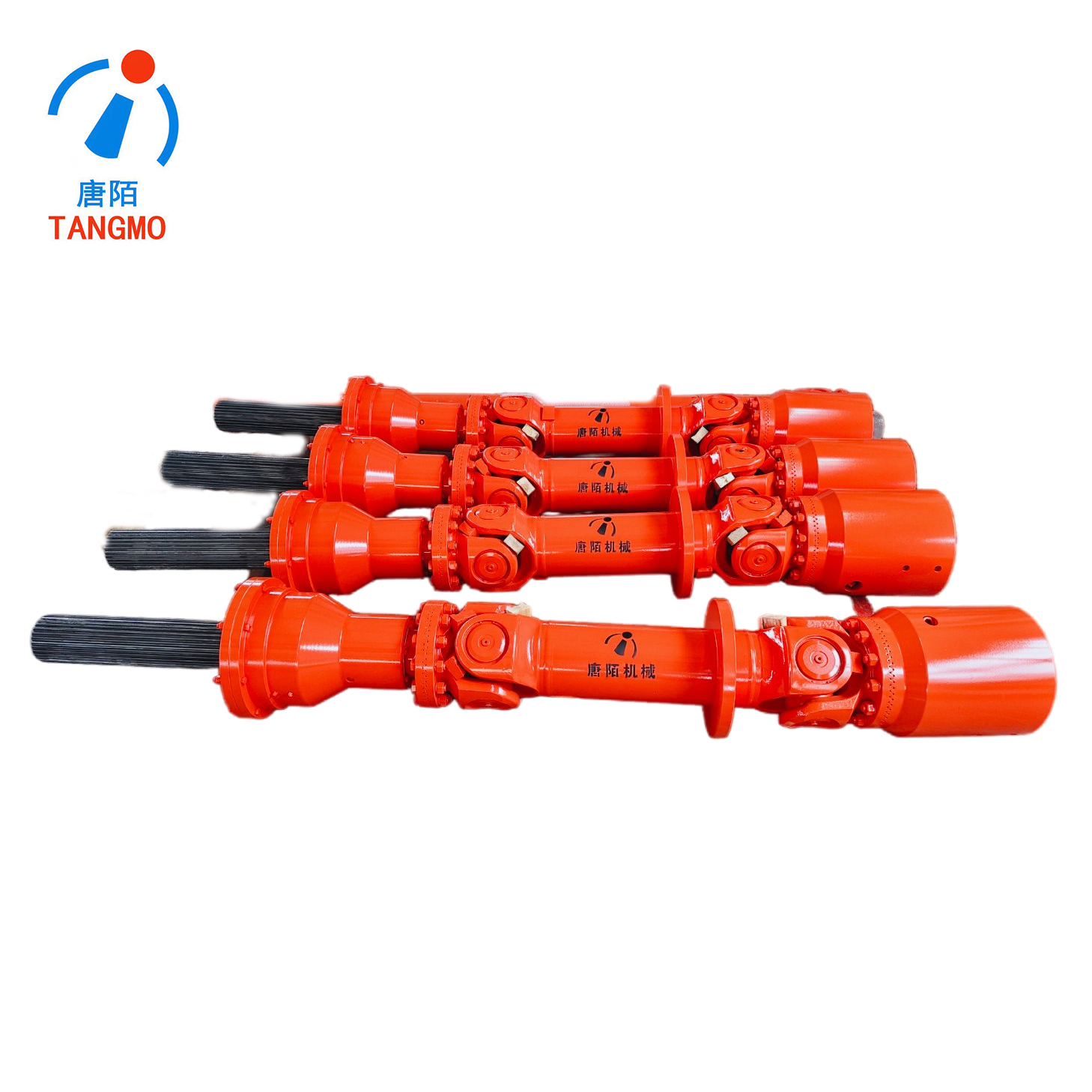

The finishing mill, as the final stage of production, transforms intermediate billets into high-quality wire rod or bar with exacting dimensional tolerances and superior surface finish. Modernized mills operate at increasingly higher speeds—often exceeding 100 m/s for wire rod—placing extreme demands on the drive system. At the heart of these high-performance drive systems lies the SWC-type Universal Drive Shaft, a robust cross-shaft universal coupling engineered specifically for the unique combination of high torque, high speed, and reliable performance required in modernized bar and wire rod finishing applications.
The SWC series represents the latest evolution in universal coupling technology, featuring an integral fork head, bolt-free design that eliminates traditional failure points and significantly enhances structural integrity . This design is particularly valuable in modernization projects where existing mill layouts impose strict space constraints and higher performance demands.
2. Mechanical Design and Construction for Modernized Finishing Mills
2.1 Fundamental Structure and Key Components
The SWC-type universal drive shaft for modernized finishing mill applications consists of several precision-engineered components:
Integral Fork Head: The defining feature of the SWC series. Unlike older designs that rely on bolted bearing caps, the SWC fork head is forged as a single, monolithic piece from high-strength alloy steel (e.g., 35CrMo or 42CrMo). This eliminates bolts entirely, removing the risk of bolt loosening or shear failure—a critical advantage for high-speed, high-vibration finishing mill environments . The integral design increases service life by an estimated 30-50% compared to traditional bolted couplings .
Cross Bearing Assembly: The core articulation point features a cruciform journal supported by high-precision bearings. The cross journal is typically manufactured from surface-carburized alloy steel (e.g., 20CrMnTi), achieving a surface hardness of HRC 58-62 while maintaining a tough, shock-resistant core .
Telescopic Spline Assembly: For finishing mill configurations requiring axial compensation, a precision-matched spline pair enables smooth axial movement. Modern SWC designs often utilize a double-layer spline structure—an outer involute spline and an inner rectangular spline—to prevent wear-related performance degradation and ensure smooth sliding under high-speed operation .
Flange or Key Connections: High-strength flanges with precision-machined mounting faces provide the interface to the gearbox and the roll stand. Power is transmitted through a combination of end-face keys and friction, secured by high-strength bolts (Class 10.9 or higher) .
2.2 Material Specifications and Heat Treatment
Component | Typical Material | Processing | Characteristics |
|---|---|---|---|
Fork Head | 35CrMo, 42CrMo Alloy Steel | Forging + Quenching & Tempering | High tensile strength, fatigue resistance |
Cross Journal | 20CrMnTi Alloy Steel | Carburizing + Quenching | Surface HRC 58-62, tough core |
Spline Shaft/Sleeve | Alloy Steel | Induction Hardening | Wear-resistant, precise fit |
Fasteners | High-strength Alloy Steel | Heat-treated | Class 10.9 or higher |
2.3 Performance Specifications for Modernized Finishing Mills
SWC-type universal shafts are available in a range of sizes suitable for bar and wire rod finishing applications, with rotational diameters from 100mm to 620mm and the following key performance characteristics :
Nominal Torque (Tn): 1.25 kN·m to 1000 kN·m (torque at 50% of yield strength)
Fatigue Torque (Tf): 0.63 kN·m to 500 kN·m (reversing load capacity)
Maximum Deflection Angle (β): 15° to 25° (model-dependent)
Transmission Efficiency: 98.7% to 99.9%
Noise Level: 30-40 dB(A) during normal operation
For typical bar and wire rod finishing applications, models in the SWC180 to SWC315 range are commonly specified, with nominal torques from 20 kN·m to 125 kN·m.
3. Why SWC Shafts Are Essential for Modernized Finishing Mills
3.1 Accommodation of High-Speed Misalignment
Finishing mills with modern high-speed configurations require precise angular compensation. SWC shafts are engineered to accommodate angular misalignment up to 15° to 25° , allowing for smooth power transmission even as stands are adjusted for different product sizes and components undergo thermal expansion .
3.2 High Torque Capacity in a Compact Envelope
For modernization projects where existing mill layouts impose space constraints, SWC shafts offer greater torque capacity than other coupling types with the same rotational diameter . This allows mills to upgrade to higher power drives without extensive foundation modifications.
3.3 High Transmission Efficiency and Energy Savings
In continuous finishing operations, energy efficiency directly impacts operating costs. SWC universal shafts achieve transmission efficiencies of 98.7% to 99.9% , reducing electrical consumption by an estimated 5-15% compared to older coupling technologies . For modern high-speed lines operating 24/7, this efficiency translates into significant annual savings.
3.4 Smooth Operation and Surface Quality
Drive system vibrations in finishing mills directly affect wire rod and bar surface quality. SWC shafts are designed for smooth operation with low noise levels (30-40 dB(A)). The precision-engineered components provide:
Reduced torsional vibrations for improved surface finish
Stable power transmission during high-speed operation
Minimal backlash for consistent product quality
3.5 Integral, Bolt-Free Design for Reliability
The elimination of bolted connections is a critical advantage for modernized finishing mills. Traditional couplings suffer from bolt loosening and fatigue failure under high vibration. The SWC integral fork head design completely removes this failure mode, providing :
No bolts to loosen or shear
Reduced maintenance requirements
Longer service life in continuous operation
3.6 Service Factor Classification for Finishing Mills
According to industry standards (JB/T5513-91), finishing mills for bar and wire rod fall under specific load classifications:
Load Classification | Application | Service Factor (K) |
|---|---|---|
Medium Impact Load | Continuous wire rod mills, small section mills | 1.3-1.8 |
Heavy Impact Load | Medium section mills | 2-3 |
The service factor is applied in torque calculations: Tc = T × K, where Tc is the calculation torque, T is the theoretical torque, and K is the service factor .
4. Modernization Considerations for Finishing Mill Drives
4.1 Key Selection Parameters for Retrofits
Engineers selecting SWC shafts for finishing mill modernization projects must consider:
Nominal Torque (Tn): Based on upgraded motor power and rolling loads
Maximum Deflection Angle (β): 15°-25° for SWC series, suitable for most finishing applications
Length Compensation (Lv): Required axial travel for thermal expansion and roll positioning
Rotational Diameter (D): Space constraints within existing mill envelope
Service Factor (K): 1.3-1.8 for continuous wire rod mills
Dynamic Balance Requirements: For high-speed finishing lines (above 1500 rpm), G6.3 or better balance grade may be required
4.2 Phasing Alignment for Multiple Stands
For multi-stand finishing trains, all universal shafts in the line must be properly phased—the fork heads must be aligned in the same orientation. The red reference marks on the shaft tubes must be aligned during installation to ensure synchronized rotation across all stands. For modernization projects, this is particularly critical when replacing only a portion of the drive train.
4.3 Installation and Phasing Procedure
Clean all flange faces thoroughly
Align the red reference marks on all shafts in the same orientation
Verify that the angle between the inner and outer yokes is 0° for each shaft
For telescopic models (SWC-BH, SWC-CH), verify that the spline shaft and sleeve marks are aligned
Tighten flange bolts using a calibrated torque wrench
After one shift of operation, re-torque all bolts; repeat for two additional shifts
5. Installation and Maintenance for Modernized Mills
5.1 Installation Requirements
Ensure compatibility with existing flange or keyway connections
Clean all mounting faces; remove any rust, paint, or debris
Verify initial alignment within manufacturer specifications
Use only Class 10.9 or higher fasteners for flange connections
Re-torque fasteners after initial operation and after subsequent shifts
5.2 Lubrication Strategy
For modern high-speed finishing applications:
Lubricant Type: High-quality lithium-based grease (2#) or molybdenum disulfide calcium-based grease (2#)
Application Frequency: Every 500 operating hours (normal), or weekly for high-temperature conditions
Procedure: Apply through grease fittings until fresh grease exits the bearing seals
Spline Lubrication: Every 6 months for telescopic models
5.3 Regular Inspection for Modernized Lines
Vibration Monitoring: Increased vibration may indicate misalignment or bearing wear
Temperature Monitoring: Sudden temperature rise indicates lubrication failure
Seal Inspection: Replace damaged seals immediately to prevent contaminant ingress
Bolt Tightness: Verify flange bolt torque during scheduled maintenance
6. Conclusion
The SWC-type universal drive shaft represents the optimal engineering solution for modernized bar and wire rod finishing mills. Its unique combination of integral fork head construction for reliability, high torque density for compact retrofits, and high transmission efficiency (98.7%-99.9%) for energy savings makes it an indispensable component for finishing mill modernization projects.
The defining features of the SWC series—bolt-free integral fork heads eliminating failure risks, 15°-25° angular compensation capability, and 30-50% longer service life than traditional couplings—provide mill operators with the reliability and performance needed for modern high-speed production.
For mills considering drive system upgrades, the SWC series offers a proven, standardized solution that can significantly reduce maintenance costs while enabling higher production speeds and improved product quality.
