An In-depth Explanation of SWC Closed Bearing Eye Type Cardan Shaft for Steel Making Cold Rolled Strip Single Stand Mill

An In-depth Explanation of SWC-Type Universal Drive Shafts for Single-Stand Cold Strip Rolling Mills

1. Introduction: The Precision Power Link in Cold Reduction

In the modern steel industry, the single-stand cold rolling mill (also known as a reversing cold mill) is a critical piece of equipment for producing high-quality, thin-gauge strip with stringent dimensional tolerances and exceptional surface finish. Unlike tandem mills, a single-stand mill achieves its total reduction through multiple reversing passes. This subjects the drive system to repeated cycles of high-torque acceleration, steady-state rolling, and deceleration, all while maintaining precise tension control between the uncoiler and reeler.

This process operates at room temperature, where the material has significantly higher yield strength than in hot rolling, demanding immense rolling forces and torque from the main drive system. The drive must accommodate roll deflection, thermal effects, and the angular and axial misalignments inherent in the system. At the heart of this critical drive train lies the SWC-Type Universal Drive Shaft.

Part of the SWC series of cross-universal couplings, the SWC shaft is engineered specifically for the demanding combination of high torque, dynamic loading, and reliable performance required in modern cold rolling applications. Its robust design and unique features make it an indispensable component for the main drive in single-stand reversing cold mills and temper mills. The SWC series is recognized in the industry for its application in rolling mill main drives, offering high torque capacity and exceptional reliability even under the most demanding conditions.

2. Mechanical Design and Construction for Cold Rolling Applications

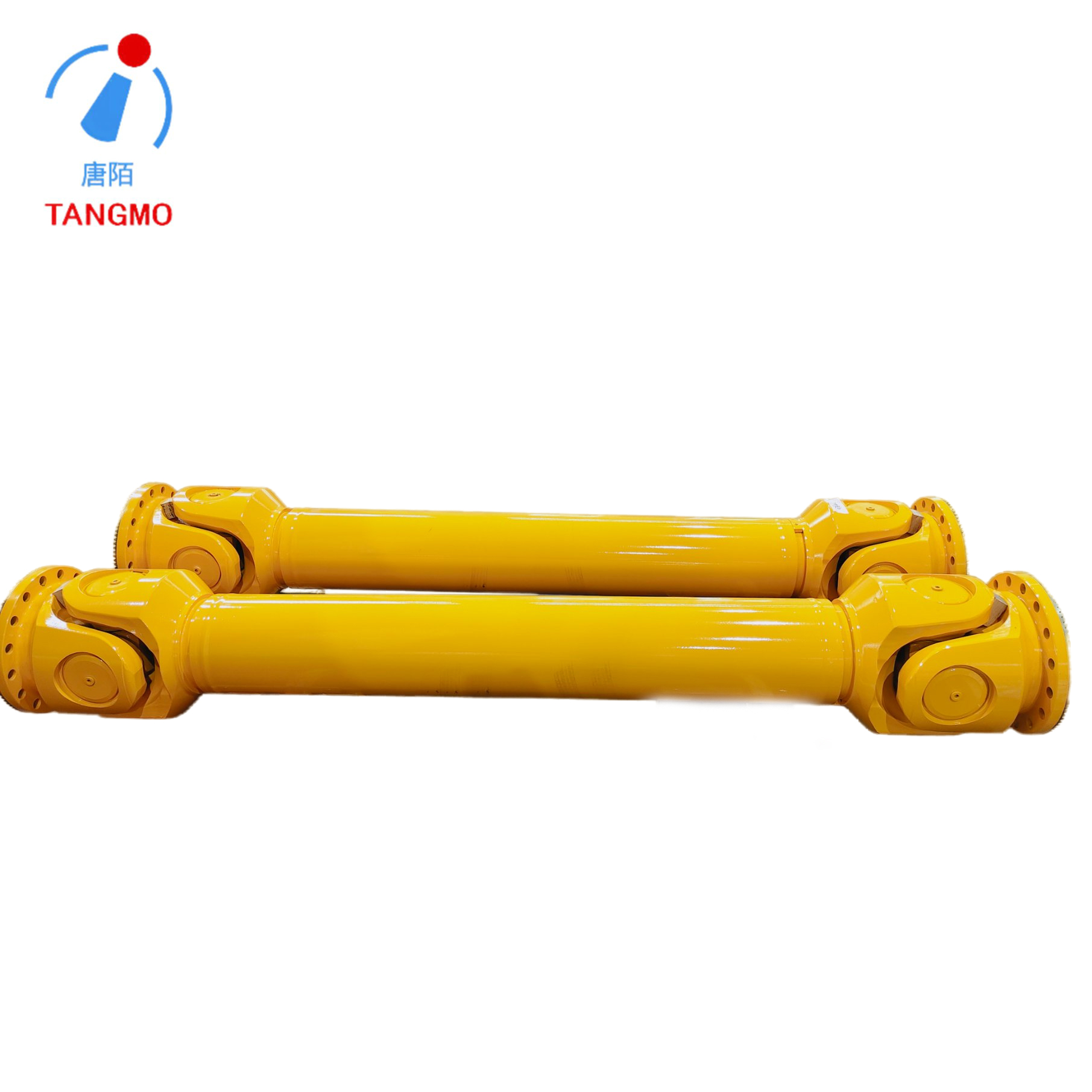

The SWC-type universal drive shaft is a precision-engineered assembly built to withstand the rigors of cold rolling service. Its design, governed by standards like JB/T5513-91, prioritizes strength, angular flexibility, and high reliability.

2.1 Fundamental Structure and Key Components

The SWC shaft comprises several key components that work in concert to transmit power reliably:

• Integral Fork Heads (整体式叉头): The main structural element, this is a defining feature of the SWC series. The fork head is a single-piece forging, eliminating the bolted connections found in older designs. This "no-bolt" structure completely removes the risk of bolt loosening or fatigue fracture, a critical safety and reliability feature in high-torque reversing applications. It significantly enhances structural integrity and increases service life by eliminating common failure points.

• Cross Bearing Assembly (十字轴承总成): This is the core articulation point, consisting of a cruciform journal (cross) supported by heavy-duty needle or cylindrical roller bearings. This assembly allows for angular transmission while withstanding the complex radial and axial loads generated during rolling.

• Telescopic Spline Assembly (伸缩花键副): For cold mill configurations requiring axial compensation, a precision-matched spline pair (comprising a splined shaft and sleeve) enables smooth axial movement. This feature is essential for accommodating thermal expansion of the rolls and shafts, as well as any minor axial shifts caused by the rolling process.

• Flange Connections: High-strength flanges with precision-machined mounting faces provide the interface to the gearbox and the work roll.

2.2 Material Specifications and Heat Treatment

The demanding cold rolling environment requires exceptional material properties to ensure long service life:

2.3 Dimensional and Performance Range

SWC-type universal shafts are available in a comprehensive range of sizes to suit various cold rolling mill power requirements. The standard series covers rotational diameters from 100mm to 620mm, with corresponding performance capabilities :

• Rotational Diameter (D): 100 mm to 620 mm

• Nominal Torque (Tn): 1.25 kN·m to 1000 kN·m (the torque at 50% of yield strength)

• Fatigue Torque (Tf): 0.63 kN·m to 500 kN·m (permissible torque under cyclic loads)

• Maximum Deflection Angle (β): ≤15° to ≤25° depending on model and size

• Transmission Efficiency: 98% to 99.9%

• Noise Level: 30-40 dB(A) during normal operation

For typical cold rolling applications, models in the SWC250 to SWC440 range are commonly specified, with nominal torques from 63 kN·m to 355 kN·m. For instance, the SWC350BH model has a nominal torque of 180 kN·m, an axis angle of 15°, and is commonly used in cold rolling mills. A standard for cold rolling mill main drive shafts specifies a torque range of 60 to 1150 kN·m and a rotational diameter of 225 to 550 mm, which aligns with the larger end of the SWC series.

3. Why SWC Shafts Are Essential for Single-Stand Cold Strip Mills

The selection of SWC universal shafts for single-stand cold rolling mills is driven by several fundamental mechanical requirements unique to the cold reduction process.

3.1 High Angular Misalignment Compensation

Single-stand cold mills experience significant misalignment due to roll deflection under high load and the need for roll gap adjustments for different strip thicknesses. SWC shafts are engineered to accommodate angular misalignment up to 15° to 25° , allowing for smooth power transmission even as these dynamic alignment changes occur. This capability eliminates the need for ultra-precise static alignment and reduces stress on the drive train components.

3.2 High Torque Density and Shock Load Resistance

Cold rolling requires substantial torque to plastically deform high-strength steel at room temperature. SWC shafts are designed for such heavy-duty, high-torque scenarios, offering greater torque capacity for a given rotational diameter than other coupling types. According to load classification standards, cold rolling mills are subject to heavy impact loads, requiring a service factor that ensures adequate bearing life and shaft strength for the demanding conditions of reversing mill operation.

3.3 High Transmission Efficiency and Energy Savings

In energy-intensive cold rolling operations, transmission efficiency is paramount. SWC shafts achieve exceptional transmission efficiencies of 98.7% to 99.9% . This high efficiency translates directly into significant energy savings, reducing electrical consumption by an estimated 5% to 15% compared to older or less efficient coupling technologies. This efficiency also means less power is lost as heat, contributing to a more stable drive system.

3.4 Integral Fork Head Design for Reliability

The bolt-free, integral fork head construction provides unmatched reliability. By eliminating the need for bolts to secure the bearing caps, it removes the most common source of failure in universal couplings. This design significantly enhances structural integrity, reduces maintenance, and extends the service life of the shaft, which is critical in high-productivity environments. This "no-bolt" structure is a key characteristic of the SWC series, providing a more robust and failure-resistant coupling.

3.5 Smooth Operation, Low Noise, and Vibration Damping

In cold rolling, drive system vibrations can directly affect strip surface quality and mill component life. SWC shafts are designed for smooth operation and low noise. Their precision manufacturing ensures tight component fits that minimize vibration, and the balanced design typically limits noise to 30-40 dB(A) . By absorbing and damping torsional vibrations generated during the reversing process, these shafts contribute to stable roll rotation, superior strip surface finish, and enhanced equipment longevity.

3.6 Axial Compensation for Thermal and Mechanical Effects

The telescopic spline design provides critical axial compliance. This serves multiple purposes:

• Thermal Expansion Compensation: The cold rolling process generates heat, causing expansion of the rolls and shafts.

• Roll Positioning: Accommodates axial movement during roll changes and adjustments.

• Deflection Compensation: Allows for minor axial shifts caused by rolling forces, preventing damage to bearings.

4. Selection and Maintenance Considerations

4.1 Selection Criteria

When selecting an SWC shaft for a single-stand cold mill, engineers must consider the following key parameters:

1. Nominal Torque (Tn): The maximum continuous torque the shaft must transmit during the most demanding pass.

2. Fatigue Torque (Tf): The permissible torque under reversing loads, critical for mills with frequent reversing cycles.

3. Maximum Deflection Angle (β): The expected angular misalignment under full load conditions.

4. Length Compensation (Lv): The required axial travel to accommodate thermal expansion and roll positioning.

5. Operating Speed: The maximum rotational speed of the mill.

6. Service Factor (K): An application-specific multiplier applied to the theoretical torque to ensure adequate bearing life and strength, accounting for shock and impact loads.

For high-reliability applications with limited maintenance access, the SWC-BH type is often recommended, while the SWC-WH or SWC-WF types can be considered for space-constrained installations where axial compensation is not required.

4.2 Installation Requirements

Proper installation is critical for optimal performance and longevity:

• All mounting faces must be thoroughly cleaned.

• Initial alignment should be verified within manufacturer-specified tolerances.

• For flange connections, high-strength bolts (e.g., Class 10.9) must be used and tightened to the specified torque using a calibrated torque wrench.

• After the first shift of operation, all fasteners must be re-torqued. This process should be repeated for several shifts until no further loosening occurs.

4.3 Lubrication Strategy

Lubrication is the single most important maintenance factor for SWC shaft longevity. For cold rolling applications, high-quality extreme-pressure (EP) grease is required. Recommended best practices include:

• Lubrication Interval: The cross bearings should be lubricated monthly. The spline section is typically lubricated quarterly.

• Procedure: Lubricant should be applied through grease fittings until fresh grease exits the bearing seals. This ensures complete replenishment and flushes out contaminants.

• Seal Integrity: Regular inspection and timely replacement of worn seals are essential to prevent lubricant loss and contamination ingress.

5. Conclusion

The SWC-type universal drive shaft is the optimal engineering solution for the demanding requirements of the single-stand cold strip mill. Its unique combination of an integral, bolt-free fork head for maximum reliability, exceptional torque density and high efficiency for cold reduction, and angular flexibility for accommodating dynamic misalignments makes it an indispensable component for modern cold rolling operations.

By providing robust power transmission, reducing vibration for improved strip quality, and minimizing maintenance needs, the SWC shaft is not merely a component but a critical enabler of cold mill productivity, reliability, and product excellence.
