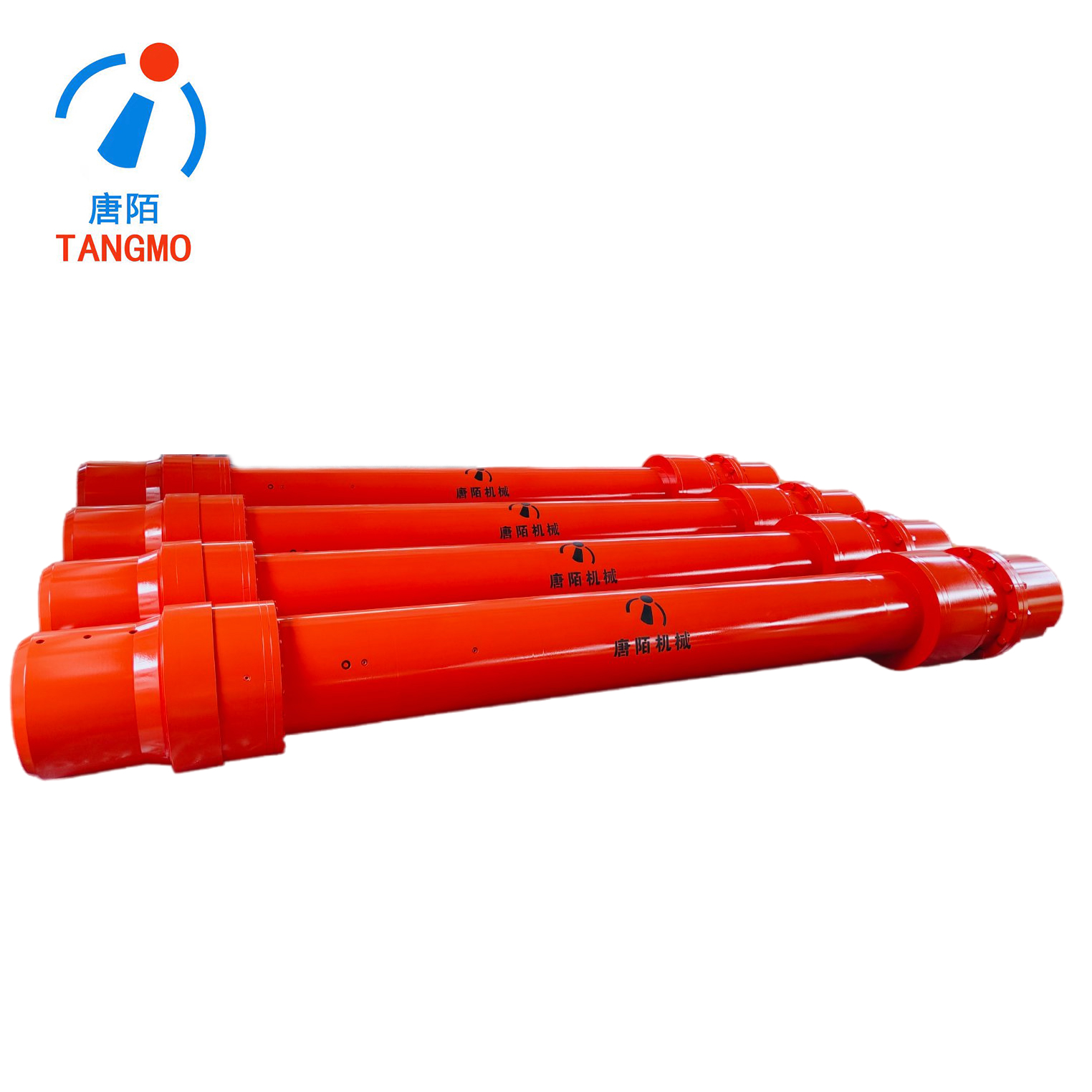

An In-depth Explanation of the TMGCT Gear Spindle for Industrial Steel Tube Rolling Mills

1. Introduction: The Specialized Power Transmission Component for Tube Rolling

In the seamless tube manufacturing process, the rolling mill (including piercing mills, mandrel mills such as MPM/PQF, and sizing/reducing mills) operates under extreme conditions characterized by high torque, heavy impact loads, high temperatures, and significant misalignment between the drive gearbox and the individual roll stands. At the heart of the main drive system for this demanding equipment lies the TMGCT gear coupling, a specialized power transmission component engineered for the unique requirements of tube rolling applications .

The TMGCT coupling is a type of curved tooth gear coupling (also known as a drum gear coupling). Unlike universal joints that rely on cross bearings, it utilizes precision-machined, crowned gear teeth to transmit torque while simultaneously accommodating the comprehensive shaft displacements (axial, radial, and angular) that are inherent in the heavy-load, high-temperature environment of a tube mill .

2. Mechanical Design and Construction for Tube Rolling Applications

The TMGCT gear coupling is a precision-engineered assembly built to withstand the rigorous demands of tube rolling service.

2.1 Fundamental Structure and Key Components

The coupling consists of two main assemblies working in concert:

• External Gear Hub: The half-coupling mounted on the drive shaft, featuring externally cut teeth with a distinctive fully-crowned (drum-shaped) profile. The teeth are precision-ground to a spherical surface centered on the gear axis, which allows the hub to pivot relative to the outer sleeve while maintaining full load-carrying capacity .

• Internal Gear Sleeve: The mating component with internally cut gear teeth that mesh with the external gear hub. The sleeve encloses the gear meshing area and contains the lubrication system. For heavy-duty rolling mill applications, this housing is typically fabricated from high-strength alloy steel.

• Flange or Key Connections: High-strength connections provide the interface to the gearbox and the roll stand. Power is transmitted through a combination of end-face keys and friction, secured by high-grade bolts.

2.2 The Fully-Crowned (Drum-Shaped) Tooth Geometry

The defining characteristic of the TMGCT coupling is its drum-shaped gear design . This is a sophisticated engineering solution to the challenge of angular misalignment under high torque. Unlike straight teeth that would experience dangerous edge loading when misaligned, the crowned profile provides critical advantages :

• Spherical Tooth Surface: The external teeth are machined into a spherical shape. When the two shafts have an angular offset, the teeth maintain line or surface contact across the flank, completely avoiding edge contact. This significantly improves the load-bearing capacity and service life.

• Optimized Contact Pattern: Under load and angular misalignment (typically up to 1.5° to 2.5°, with a maximum of 6°), the crowned geometry distributes contact stresses uniformly, eliminating the stress concentration at the tooth ends that plagues straight-tooth designs.

• Increased Torque Capacity: Based on bending strength calculations, under the same conditions, the curved tooth design can transmit 15-30% higher torque than a traditional straight-tooth gear coupling . For heavy tube rolling applications, torque transmission can reach the million Nm level .

3. Why TMGCT Gear Couplings Are Essential for Tube Rolling Mills

3.1 Comprehensive Misalignment Compensation

Tube rolling mills experience significant and complex misalignment conditions. The rolls deflect under high loads, the mill housing shifts during operation, and the entire system undergoes thermal expansion. TMGCT couplings are engineered to simultaneously compensate for :

• Angular Misalignment: Up to 1.5°-2.5° during normal operation.

• Parallel (Radial) Misalignment: Compensated through the tooth geometry as the hubs pivot.

• Axial Misalignment: Accommodated by the axial play within the gear mesh.

3.2 High Torque Density and Impact Resistance

Tube rolling mills must transmit enormous torque to plastically deform steel at high temperatures. The TMGCT coupling is designed for these heavy-load scenarios, offering compact structure with extremely high torque transmission relative to its volume . This high "torque density" is crucial for space-constrained narrow rolling mill stands. Furthermore, the all-metallic construction and optimized tooth profile provide excellent resistance to the severe impact loads experienced during the billet piercing and rolling process .

3.3 Environmental Durability

The seamless tube rolling environment is characterized by high temperatures, cooling water, scale, and airborne dust. TMGCT couplings are engineered to withstand these conditions through robust housing designs and advanced sealing systems that ensure lubricant retention and prevent contaminant ingress .

4. Applications in Steel Tube Rolling Mills

TMGCT gear couplings are particularly suitable for:

• Continuous Mandrel Mills (MPM/PQF): Connecting the main distribution gearbox to each independent roll stand, where precise torque transmission and misalignment accommodation are critical.

• Piercing Machines: Used in the main shaft drive system to handle the extreme shock loads during the piercing of solid billets.

• Sizing and Reducing Mills: Used in high-speed, high-torque output scenarios for final dimension control.

• Replacement for Universal Joints: In some large-diameter tube mill applications, TMGCT-type couplings are used to replace traditional cross universal shafts (SWC type) to improve service life .

5. Installation and Maintenance Considerations

5.1 Lubrication Strategy
Lubrication is the most critical maintenance factor for TMGCT gear coupling longevity. The high-pressure contact between teeth requires a stable oil film. It is recommended to use high-quality extreme pressure (EP) industrial gear oil or grease. Due to the high temperatures and dust in the tube rolling environment, oil seal inspection and re-greasing cycles should be performed more frequently than in standard applications .

5.2 Alignment Requirements
Although the coupling has a large compensation capacity (up to 1.5°-2.5° during operation), it is generally required that the angle between the two shafts be controlled within a smaller tolerance during static alignment to maximize bearing and tooth life.

5.3 Wear Monitoring
During routine maintenance, the tooth surface backlash must be checked. Increased backlash often indicates material fatigue or plastic deformation. The contact pattern on the tooth flanks should also be inspected to ensure the alignment is within acceptable limits.

6. Conclusion

The TMGCT gear coupling is the optimal engineering solution for the demanding power transmission requirements of industrial steel tube rolling mills. Its unique combination of a fully-crowned, drum-shaped tooth geometry for optimized load distribution, exceptional torque density for heavy reduction, and comprehensive misalignment compensation makes it an indispensable component for the main drives of piercing mills, mandrel mills (MPM/PQF), and sizing mills.

By understanding the mechanical principles of the curved tooth design, its capacity to handle 15-30% higher torque than straight-tooth alternatives, and the rigorous lubrication requirements of heavy-load applications, mill operators can maximize equipment longevity, minimize downtime, and achieve the consistent product quality essential for modern seamless tube production .
