An In-depth Explanation of the "Tiger-Mouth" Fork Head (Yoke) for Hot Strip Roughing Mills
1. Introduction: The Critical Load-Bearing Joint in Mill Drive Systems
In the demanding environment of a hot strip roughing mill, the main drive system is responsible for transmitting massive torque from the motor to the rolls. The "fork head" (commonly referred to in Chinese industry jargon as the "虎口" (hǔ kǒu) or "tiger's mouth") is a critical, highly-stressed component of the universal joint shaft (or cardan shaft) that connects the gearbox to the roll stand. It is the structural "jaw" that transmits the rotational force from the drive shaft to the roll's "扁头" (flattened end or spade end), effectively serving as the load-bearing articulation point.
2. Definition and Functional Context
The "tiger-mouth" is not a standalone part but a descriptive term for the forked end of a universal joint yoke. In the context of a hot strip roughing mill, its primary function is to house the cross shaft (for a cross-type universal joint) or the sliding blocks (for a slider-type joint), enabling the transmission of torque while accommodating the angular misalignment that occurs between the drive shaft and the work roll.
There are two primary design philosophies for this joint in heavy plate and strip mills:
Slider-Type (滑块式) "Tiger-Mouth": An older design where the fork head's transverse bore contains two crescent-shaped bronze sliders and a small square shaft. The roll's flattened end (扁头) inserts between these sliders, forming a "tiger-mouth" joint that can operate at angles up to 8-10 degrees. This design is known for high torque capacity but suffers from rapid slider wear, high maintenance, and increased impact loads due to the growing clearances.
Cross-Type (十字轴式) "Tiger-Mouth": The modern standard for high-performance mills. It uses a precision cross shaft with roller bearings inside the fork head. This "tiger-mouth" offers significantly higher efficiency (>99%), reduced vibration (approximately 1/30 of slider-type), and superior lubrication, making it the preferred choice for modern high-speed, high-torque roughing mills.
3. Mechanical Design and Engineering Significance

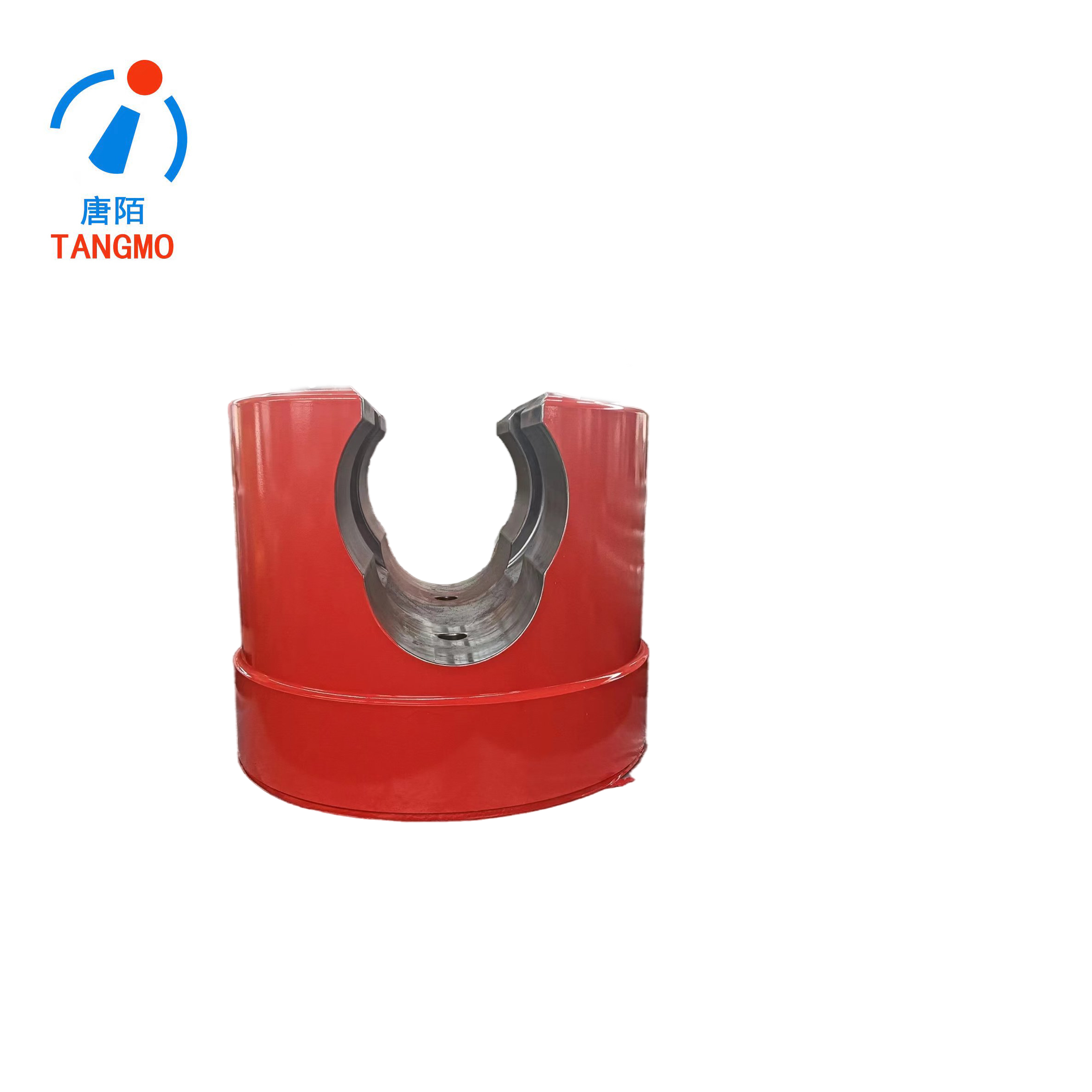

The design of the "tiger-mouth" fork head is a masterclass in managing extreme stress. The geometry of the fork head features a distinct "throat" or curved inner surface (the literal "tiger's mouth"), which is a primary area of stress concentration.
Integrated vs. Split Design: In heavy-duty applications like roughing mills, the SWC series of universal joints uses an integral, one-piece forged fork head. This "no-bolt" construction eliminates the risk of bolt loosening or fatigue fracture, which is a critical failure mode in high-vibration, high-impact environments.
Stress Management: Finite Element Analysis (FEA) consistently identifies the "tiger-mouth" root (the transition area between the fork arms and the body) and the slider mounting groove roots as the highest-stress regions in the entire coupling. To mitigate this, advanced engineering solutions incorporate stress-relief grooves at the "tiger-mouth" root. These grooves are designed to redirect stress away from the critical root area, effectively extending the fork head's fatigue life.
Material Selection: Given the extreme loads, the "tiger-mouth" fork head is forged from high-strength alloy steels. For instance, the SWC series commonly uses 42CrMo alloy steel, which after quenching and tempering achieves a hardness of HRC 28-32 for an optimal balance of strength and toughness. In extra-heavy-duty applications, materials like 25Cr2Ni4MoV are specified for their exceptional strength and impact resistance.
4. Failure Modes and Operational Significance
The "tiger-mouth" is one of the most failure-prone components in the roughing mill drive train. Its failure can lead to catastrophic and costly downtime.
Catastrophic Failure Sequence: Failure analysis of a 1780mm roughing mill revealed a typical cascading failure sequence: the roll's spade end (扁头) fractures first, followed by the fork head bore, the lower roll spade end, and finally, the "tiger-mouth" itself.
Primary Failure Causes: The two main drivers of "tiger-mouth" failure are:
Extreme Cyclic Stress: The repeated high torque and impact loads during slab biting cause fatigue cracking, typically initiating at the highly stressed root of the "tiger-mouth".
Wear and Clearance: In slider-type joints, wear of the bronze sliders increases the clearance within the "tiger-mouth." This backlash creates severe impact loads during reversing operations, which can quickly lead to deformation and fracture of the fork head.
5. Design Evolution and Future Trends
The industry is continuously evolving to improve the performance and reliability of the "tiger-mouth" fork head. Key trends include:
Replacement of Slider-Type: The clear trend is the replacement of older, high-maintenance slider-type "tiger-mouth" joints with more reliable and efficient cross-type (SWC-series) integral fork heads.
Advanced Manufacturing: The use of precision CNC machining ensures the coaxiality of the fork head bores is controlled within extremely tight tolerances (e.g., ±0.02mm) to minimize vibration and noise.
Optimized Geometry: Ongoing research uses sensitivity analysis and topology optimization to find the optimal combination of dimensional variables, specifically targeting the reduction of the "tiger-mouth" stress as the primary optimization goal.
6. Conclusion
The "tiger-mouth" fork head is far more than a simple mechanical connector; it is the critical, highly-engineered structural "jaw" that enables the transmission of thousands of kilowatts of power in a hot strip roughing mill. Its design, from the choice of high-strength forged steel to the integration of stress-relief geometries, is a direct response to the extreme forces and fatigue cycles it must endure. Understanding its function, stress points, and failure modes is essential for ensuring the reliability, efficiency, and safety of the primary drive system in modern steel production. The industry's shift towards integral, cross-type "tiger-mouth" designs underscores the ongoing commitment to improving mill uptime and reducing maintenance costs.
