An In-depth Explanation of Gear Spindles for Structural Steel Section Finishing Mills

An In-depth Explanation of Gear Spindles for Structural Steel Section Finishing Mills

1. Introduction: The Critical Power Transmission Component in Section Finishing

In the structural steel manufacturing process, the finishing mill stands represent the final and most demanding shaping stage for products such as beams, channels, angles, and rails. Unlike roughing stands that perform heavy breakdown reductions, finishing stands must deliver precise dimensional control, superior surface quality, and consistent mechanical properties while operating at higher speeds and under significant torsional loads. The drive system for these stands must transmit substantial torque while accommodating dynamic misalignments, damping vibrations, and maintaining reliable performance under continuous operation in a harsh environment characterized by high temperatures, cooling water, and scale. At the heart of this sophisticated power transmission system lies the gear spindle—a specialized curved tooth gear coupling engineered specifically for the unique challenges of modern structural steel section finishing mill applications .

Gear spindles (also known as drum gear couplings or crowned tooth gear spindles) represent a critical advancement in rolling mill drive technology. Unlike universal joint shafts that rely on cross bearings, gear spindles utilize precision-machined, crowned gear teeth to transmit torque while simultaneously accommodating angular, radial, and axial shaft displacements inherent in the heavy-load, high-temperature environment of a section finishing mill . In modern high-speed, heavy-load finishing mills, drum gear spindles are widely used as key torque transmission components in the main drive system due to their high torque capacity, excellent multi-directional displacement compensation characteristics, and high transmission efficiency .

2. Mechanical Design and Construction for Section Finishing Mill Applications

2.1 Fundamental Structure and Key Components

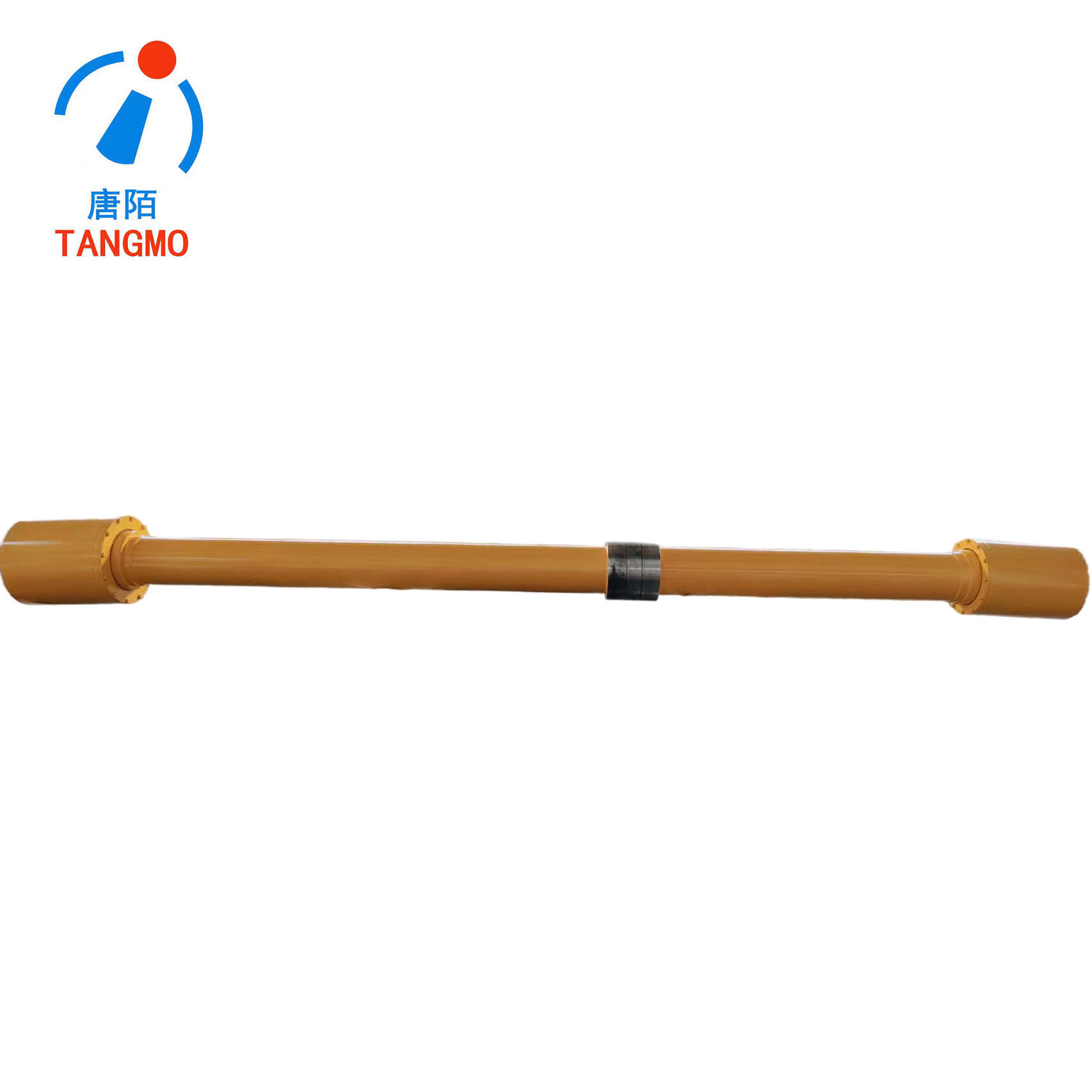

The gear spindle for structural steel section finishing mill applications is a precision-engineered assembly built to withstand the rigorous demands of finishing service. It consists of several key components working in concert:

  • External Gear Hub: The half-coupling mounted on the drive shaft (gearbox output or roll shaft), featuring externally cut teeth with a distinctive fully-crowned (drum-shaped) profile. The teeth are precision-ground to a spherical surface centered on the gear axis, which allows the hub to pivot relative to the outer sleeve while maintaining full load-carrying capacity . The external teeth are ground along the tooth length to an arc shape, with the tooth thickness gradually decreasing from the middle of the tooth length toward both ends .

  • Internal Gear Sleeve: The mating component with internally cut gear teeth that mesh with the external gear hub. The sleeve encloses the gear meshing area and contains the lubrication system. For heavy-duty finishing mill applications, this housing is typically fabricated from high-strength alloy steel. The internal gear teeth are generally straight (uncrowned), serving as the meshing partner to the curved hubs .

  • Telescopic Spline Assembly: For finishing mill configurations requiring axial compensation, a precision-matched spline pair enables smooth axial movement. This feature accommodates thermal expansion of the rolls and shafts, stand adjustments for different section sizes, and any misalignments between the drive motor and the roll stand during operation . Modern gear spindles are designed to telescope to accommodate stand changes for various roll configurations, depending on the product being rolled .

  • Flange or Key Connections: High-strength connections provide the interface to the gearbox and the roll stand. Power is transmitted through a combination of end-face keys and friction, secured by high-grade bolts.

  • Sealing and Lubrication System: High-performance seals at the ends of the sleeve protect the gear mesh from mill contaminants (scale, water, dust) and retain lubricant. Finishing mill gear spindles typically employ forced thin oil lubrication systems that circulate oil through the gear mesh, providing superior cooling and wear protection .

2.2 The Fully-Crowned (Drum-Shaped) Tooth Geometry

The defining characteristic of the gear spindle for section finishing mills is its drum-shaped gear (鼓形齿) design . This sophisticated engineering solution addresses the challenge of angular misalignment under high torque:

  • Spherical Tooth Surface: The external teeth are machined into a spherical shape. When the two shafts have an angular offset, the teeth maintain line or surface contact across the flank, completely avoiding edge contact . The tooth profile features an arc shape along the tooth length, creating a "waist-drum" configuration when viewed from the tooth tip.

  • Optimized Contact Pattern: Under load and angular misalignment—typically up to 1° to 3° during operation—the crowned geometry distributes contact stresses uniformly, eliminating the stress concentration at the tooth ends that plagues straight-tooth designs . For finishing stands, the maximum allowable inclination angle is generally 3°, with typical operation within 1°-3°.

  • Increased Torque Capacity: Drum-shaped gear teeth, after carburizing and quenching treatment, exhibit high load-bearing capacity . Based on bending strength calculations, the curved tooth design can transmit significantly higher torque than a traditional straight-tooth gear coupling of the same physical size.

  • Reduced Vibration: The optimized tooth geometry results in reduced system vibration, smoother roll operation, and lower shock loads, contributing to improved product quality . The self-centering property of the crowned teeth ensures load distribution evenly across the tooth surface, reducing vibration transmission to the rolls.

  • Wear Resistance: The primary failure mode of drum-shaped gear teeth is wear . With forced thin oil lubrication, tooth surface wear is substantially reduced to approximately 20% of that experienced with grease lubrication . The circulating oil also carries away rolling heat and frictional heat from the teeth, effectively preventing reduction of the tooth material's allowable contact stress .

2.3 Material Specifications and Heat Treatment

The demanding finishing mill environment requires exceptional material properties to ensure long service life under continuous operation. According to industry practice, gear spindle components are typically manufactured from high-strength alloy steels such as 42CrMo or 40CrMnMo, with torque capacities ranging from 22 to 4660 kN·m and 28 to 6000 kN·m respectively .

Component

Typical Material

Processing

Characteristics

External Gear Hub

42CrMo, 40CrMnMo Alloy Steel

Forging + Carburizing/Quenching

Surface hardness, tough core

Internal Gear Sleeve

High-strength Alloy Steel

Quenching and Tempering

Wear-resistant surface

Spline Components

Alloy Steel

Induction Hardening

Wear surfaces: high hardness

Fasteners

High-strength Alloy Steel

Heat-treated

Class 10.9 or higher

The gear teeth undergo surface hardening treatments—typically carburizing and quenching—to achieve optimal wear resistance and fatigue strength, with surface hardness typically exceeding HRC 55-60 for the gear tooth flanks . This treatment significantly enhances the load-bearing capacity of the drum-shaped gear teeth .

2.4 Lubrication Systems

Finishing mill gear spindles are available in two primary lubrication configurations:

  • Forced Thin Oil Lubrication: The preferred choice for modern high-speed, heavy-load finishing mills. The circulating oil system provides superior cooling, carries away frictional and radiant heat from the rolls, and substantially reduces tooth wear . Oil-lubricated gear spindles feature continuous oil circulation that delivers lubricant directly to the gear mesh, ensuring stable operation under extreme conditions. This design is specified in standards such as JB/T 13499-2018 for heavy-duty hot strip finishing mill gear spindles .

  • Grease Lubrication: Used in less demanding applications or where oil circulation systems are not practical. However, grease-lubricated spindles experience higher tooth wear rates and are generally limited to lower-speed, lower-temperature applications .

3. Why Gear Spindles Are Essential for Section Finishing Mills

3.1 Superior Torque Density and Load Capacity

Section finishing mills must transmit substantial torque to achieve precise final dimensions while operating at increasingly higher speeds. Drum-shaped gear spindles offer exceptional torque density—the ability to transmit very high torque within a relatively compact envelope. The carburized and quenched gear teeth provide high load-bearing capacity , enabling the spindle to handle the high alternating or pulsating rolling torques characteristic of finishing stands .

For specific finishing mill applications, gear spindles are available with nominal torques ranging from 31.5 kN·m to 1600 kN·m depending on size and heat treatment . In modern hot strip finishing mills, approximately 78% of new installations specify curved tooth gear couplings as the preferred drive connection , reflecting their proven performance in demanding finishing applications.

3.2 Comprehensive Misalignment Compensation

Section finishing mills experience significant and complex misalignment conditions during operation. The rolls deflect under high loads, the mill housing shifts during rolling, and the entire system undergoes thermal expansion. Gear spindles are engineered to simultaneously compensate for:

  • Angular Misalignment: Up to 1° to 3° during normal operation, with some designs accommodating up to 6° maximum

  • Parallel (Radial) Misalignment: Compensated through the tooth geometry as the hubs pivot

  • Axial Misalignment: Accommodated by the axial play within the gear mesh and the telescopic spline assembly

This comprehensive compensation capability eliminates the need for ultra-precise static alignment and reduces stress on bearings, gearboxes, and drive motors throughout the mill train .

3.3 High Transmission Efficiency and Energy Savings

In continuous finishing mill operations, where multiple stands operate simultaneously over extended production campaigns, transmission efficiency directly impacts operating costs. Gear spindles provide high transmission efficiency through their positive-locking, all-metallic construction, minimizing power losses compared to alternative coupling technologies. The rolling/sliding contact of the gears, with proper lubrication, provides very high mechanical efficiency (typically >99%), minimizing energy loss.

3.4 Smooth Operation and Product Quality

Drive system vibrations in finishing mills can directly affect product quality, leading to dimensional variations in web thickness, flange width, and overall section geometry, as well as surface defects. Gear spindles are designed for smooth operation with minimal vibration generation. Field application data shows that mills employing drum-shaped gear couplings experience 40-50% reduction in vibration caused by roll axial movement . The precision-engineered components provide:

  • Reduced torsional vibrations that could otherwise cause dimensional variations

  • Stable power transmission even under varying load conditions during section entry and exit

  • Improved section surface quality through consistent torque application

  • Enhanced dimensional accuracy by minimizing speed variations across multiple stands

3.5 Environmental Durability and Reliability

The structural steel finishing mill environment presents challenging conditions:

  • Radiant heat from the hot section

  • Cooling water sprays for roll cooling

  • Airborne scale and dust from the rolling process

  • Lubricants and hydraulic fluids from adjacent equipment

Gear spindles are engineered to withstand these conditions through robust housing designs, advanced sealing systems that ensure lubricant retention and prevent contaminant ingress, and high-strength materials with appropriate heat treatment. The forced oil lubrication system also carries away heat from the rolls and gear teeth, preventing reduction of the tooth material's allowable contact stress and ensuring continuous mill operation without shaft breakage .

3.6 Standardization and Interchangeability

Gear spindles for finishing mill applications are manufactured according to established industry standards. JB/T 13499-2018 "Heavy-duty drum-shaped gear spindles for hot strip finishing mill trains" provides comprehensive specifications for these critical components, covering:

  • Structure Types: Standardized configurations for different mill arrangements

  • Basic Parameters: Defined torque ranges, dimensional series, and performance characteristics

  • Technical Requirements: Material specifications, heat treatment, manufacturing tolerances

  • Inspection Rules: Procedures for quality verification and acceptance

  • Packaging and Storage: Standardized preservation requirements

This standardization facilitates high availability, ease of replacement, and cost-effective warehousing through standardized retrofit parts. The standard applies to spindles connecting the mill roll and the gearbox output shaft in plate and strip rolling mill drive trains .

4. Installation and Maintenance Considerations

4.1 Installation Requirements

Proper installation is critical for achieving design life and reliable operation in finishing mill service:

  • Ensure compatibility with shaft diameters and connection types

  • Clean all mounting faces thoroughly before assembly

  • Verify initial alignment within manufacturer-specified tolerances (typically ≤1/3 of the dynamic capacity)

  • Use only high-strength fasteners meeting appropriate specifications

  • Follow specified bolt tightening sequences and torque values

  • Verify proper lubrication before initial operation

  • For telescopic designs, ensure proper phasing (alignment of marks) for constant velocity rotation

4.2 Lubrication Strategy

Lubrication is the single most important maintenance factor for gear spindle longevity. For forced oil lubrication systems:

  • Oil Type: High-quality extreme-pressure (EP) gear oil suitable for high-temperature, high-load applications

  • Circulation System: Continuous oil circulation through the gear mesh carries away heat and contaminants

  • Filtration: Regular oil filtration to remove wear particles and maintain oil cleanliness

  • Oil Analysis: Periodic oil sampling to detect wear metals and monitor oil condition

For grease-lubricated systems:

  • Grease Type: High-quality EP grease suitable for high-temperature applications

  • Application Frequency: Regular intervals based on operating hours

4.3 Regular Inspection and Condition Monitoring

Periodic inspection helps detect early signs of wear or damage before catastrophic failure occurs:

  • Visual Inspection: Check seals for damage or leakage; inspect for any signs of distress, rust, or mechanical damage

  • Vibration Monitoring: Observe for abnormal vibration during operation, which may indicate gear tooth wear or misalignment

  • Temperature Monitoring: Monitor housing temperatures for signs of lubrication failure or incipient damage

  • Backlash Measurement: Monitor changes in gear mesh backlash, which may indicate tooth wear

  • Bolt Tightness: Verify that all flange bolts remain properly torqued

5. Applications in Structural Steel Section Finishing Mills

Gear spindles for section finishing mills are primarily used in the following drive configurations:

  • Finishing Stand Main Drives: Connecting the main drive motor or gearbox to the finishing mill rolls

  • Motor-to-Gearbox Connections: Spindles connecting the main drive motor output shaft to the reduction gearbox input shaft

  • Gearbox-to-Roll Stand Connections: Spindles transmitting power from the reduction gearbox output shaft to the roll stand

  • Universal Stand Drives: Power transmission for universal stands with both horizontal and vertical rolls

The gear spindle is the critical connection in the drive train, and the performance and uptime of rolling mills rely on these spindles as the most critical equipment of the drive system .

6. Conclusion

The gear spindle (curved tooth gear coupling) represents a proven, precision-engineered solution for the demanding requirements of structural steel section finishing mills. Its unique combination of fully-crowned tooth geometry for optimized load distribution, exceptional torque density for final section reduction, and comprehensive misalignment compensation (up to 1°-3° under load) makes it an indispensable component for modern section finishing operations.

The defining features of gear spindles—drum-shaped teeth that maintain contact under misalignment, carburized and quenched tooth surfaces for high load capacity, forced oil lubrication for superior cooling and wear reduction, and standardized configurations for ease of replacement—make them the preferred choice for finishing mill main drives where maximum torque capacity, smooth operation, and reliability are required.

As industry data confirms, in modern hot strip finishing mills, approximately 78% of new installations specify curved tooth gear couplings as the preferred drive connection . The proven vibration reduction of 40-50% and the substantial improvement in equipment reliability demonstrate the significant operational benefits of this technology .

By understanding the mechanical principles of the drum-shaped tooth design, proper selection criteria based on application requirements, and rigorous maintenance requirements including proper lubrication and seal integrity, mill operators can maximize equipment longevity, minimize costly unplanned downtime, and achieve the consistent section dimensional accuracy and surface quality essential for modern structural steel production. The gear spindle's proven reliability in metallurgical applications, combined with its ability to perform under continuous operation and dynamic misalignment conditions, makes it not merely a component, but a critical enabler of finishing mill productivity and product quality.
