An In-depth Explanation of Gear Spindles for Seamless Tube Continuous Rolling Mills

An In-depth Explanation of Gear Spindles for Seamless Tube Continuous Rolling Mills

1. Introduction: The Critical Power Transmission Component in High-Performance Tube Rolling

In the modern seamless tube manufacturing process, the continuous rolling mill (including MPM and PQF designs) represents a sophisticated operation where multiple closely spaced stands progressively reduce the diameter and wall thickness of a hollow shell to form a finished seamless tube. This equipment operates under extreme conditions characterized by high torque for plastic deformation at elevated temperatures, precise speed control across multiple stands to maintain tension-free rolling, and the accommodation of significant angular misalignments as stands are adjusted for different tube sizes.

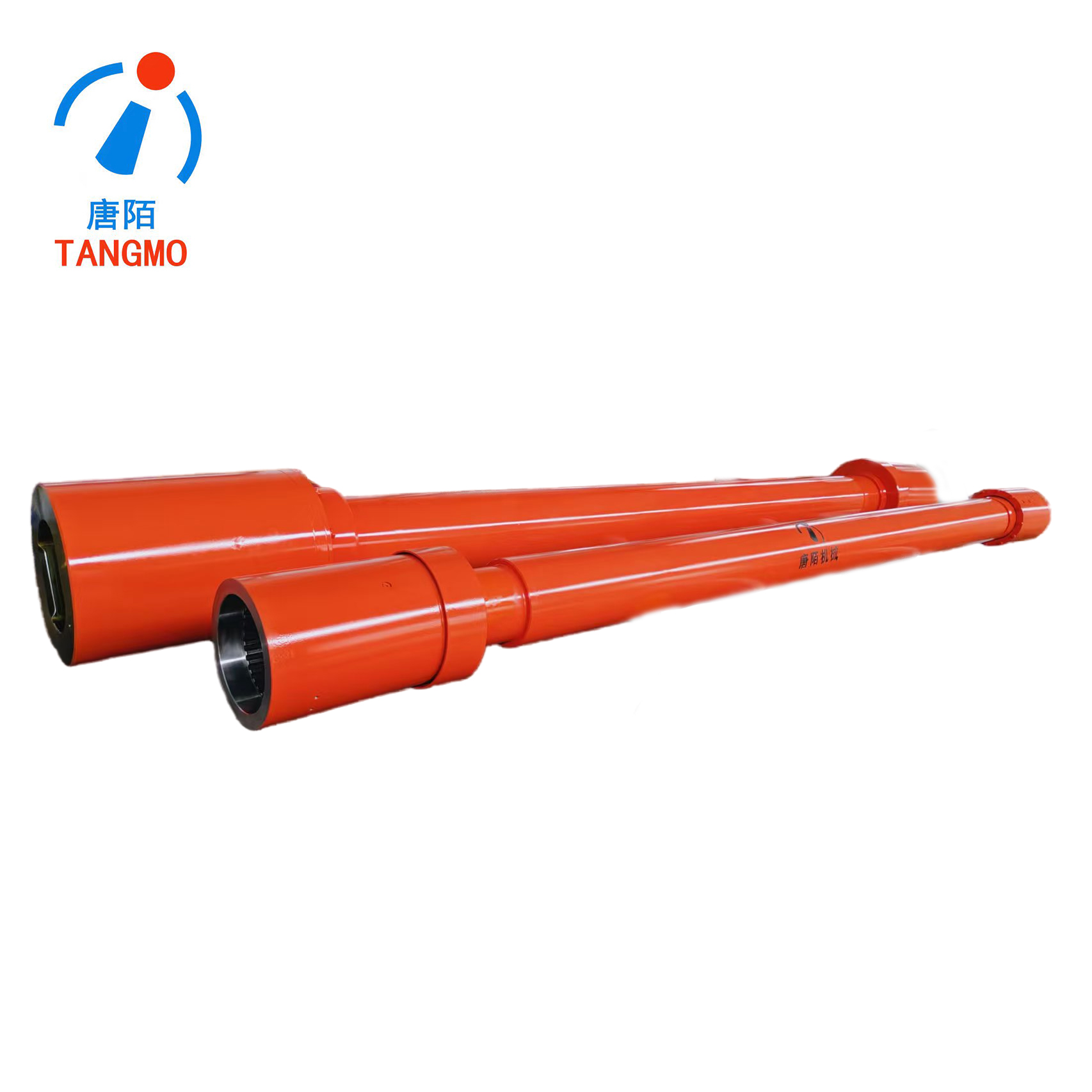

At the core of this demanding power transmission system lies the gear spindle—also known as a curved tooth gear coupling, drum gear coupling, or crowned tooth gear spindle. Unlike universal joints that rely on cross bearings, gear spindles utilize precision-machined, crowned gear teeth to transmit torque while simultaneously accommodating the comprehensive shaft displacements (axial, radial, and angular) inherent in the heavy-load, high-temperature environment of a continuous tube mill.

Gear spindles for seamless tube continuous rolling mills are specifically engineered for the unique combination of high torque, multi-stand synchronization, and reliable performance required in modern tube rolling applications. Their robust design and superior performance characteristics make them indispensable for the main drives of MPM (Multi-Stand Pipe Mill) and PQF (Premium Quality Finishing) mills, as well as sizing and reducing mills.

2. Mechanical Design and Construction for Continuous Tube Rolling Applications

2.1 Fundamental Structure and Key Components

The gear spindle for seamless tube continuous rolling mill applications is a precision-engineered assembly built to withstand the rigorous demands of tube rolling service. It consists of several key components working in concert:

• External Gear Hub: The half-coupling mounted on the drive shaft, featuring externally cut teeth with a distinctive fully-crowned (drum-shaped) profile. The teeth are precision-ground to a spherical surface centered on the gear axis, which allows the hub to pivot relative to the outer sleeve while maintaining full load-carrying capacity.

• Internal Gear Sleeve: The mating component with internally cut gear teeth that mesh with the external gear hub. The sleeve encloses the gear meshing area and contains the lubrication system. For heavy-duty rolling mill applications, this housing is typically fabricated from high-strength alloy steel.

• Telescopic Spline Assembly: For continuous mill configurations requiring axial compensation, a precision-matched spline pair enables smooth axial movement. This feature accommodates thermal expansion of the rolls and shafts, stand adjustments for different tube sizes, and any misalignments between the drive motor and the roll stand during operation. The long telescopic spline also enables rapid engagement and disengagement of the roll-end components, facilitating quick roll changes and reducing maintenance time.

• Flange or Key Connections: High-strength connections provide the interface to the gearbox and the roll stand. Power is transmitted through a combination of end-face keys and friction, secured by high-grade bolts.

2.2 The Fully-Crowned (Drum-Shaped) Tooth Geometry

The defining characteristic of the gear spindle for continuous tube rolling mills is its drum-shaped gear design. This is a sophisticated engineering solution to the challenge of angular misalignment under high torque. Unlike straight teeth that would experience dangerous edge loading when misaligned, the crowned profile provides several critical advantages:

• Spherical Tooth Surface: The external teeth are machined into a spherical shape. When the two shafts have an angular offset, the teeth maintain line or surface contact across the flank, completely avoiding edge contact. This significantly improves the load-bearing capacity and service life.

• Optimized Contact Pattern: Under load and angular misalignment—typically up to 1.5° to 2.5° during operation, with a maximum of 6°—the crowned geometry distributes contact stresses uniformly, eliminating the stress concentration at the tooth ends that plagues straight-tooth designs.

• Increased Torque Capacity: Based on bending strength calculations, under the same conditions, the curved tooth design can transmit 15-30% higher torque than a traditional straight-tooth gear coupling. For heavy tube rolling applications, torque transmission can reach the million Nm level.

• Reduced Vibration: The optimized tooth geometry results in reduced system vibration, smoother roll operation, and lower shock loads, contributing to improved product quality.

2.3 Material Specifications and Heat Treatment

The demanding continuous tube rolling environment requires exceptional material properties to ensure long service life under continuous operation:

The gear teeth undergo surface hardening treatments to achieve optimal wear resistance and fatigue strength, with surface hardness typically exceeding HRC 55-60 for the gear tooth flanks. The use of high-quality forged alloy steel ensures the structural integrity required for the extreme loads encountered in tube rolling applications.

3. Technical Specifications and Performance Characteristics

3.1 Dimensional and Performance Range

Gear spindles for seamless tube continuous rolling mills are manufactured according to established industry standards. The Chinese mechanical industry standard JB/T 12473-2015 "Crowned gear spindles for tube-rolling mill" provides comprehensive specifications for these critical components. According to this standard, gear spindles for continuous tube rolling mills are available with the following specifications:

• Permissible Torque Range: 53 kN·m to 585 kN·m

• Maximum Working Angle (under load): < 1.5°

• Maximum Angle (no load): < 5°

• Applicable Equipment: Connecting the roll shaft and the reducer shaft in coaxial drive systems of continuous tube rolling mills

For specific PQF mill applications, gear spindles are available with rotational diameters from 250mm to 550mm, nominal torques from 63 kN·m to 710 kN·m, and fatigue torques from 31.5 kN·m to 355 kN·m.

3.2 Standardized Configurations

JB/T 12473-2015 specifies two primary types of crowned gear spindles for continuous tube rolling mills:

• ZGL I Type: A standardized configuration for specific mill arrangements

• ZGL II Type: An alternative configuration for different installation requirements

Both types are designed to meet the rigorous demands of continuous tube rolling operations, with standardized dimensions, technical requirements, and inspection rules ensuring consistent quality and interchangeability.

4. Why Gear Spindles Are Essential for Continuous Tube Rolling Mills

4.1 Comprehensive Misalignment Compensation

Continuous tube rolling mills experience significant and complex misalignment conditions. The rolls deflect under high loads, the mill housing shifts during operation, and the entire system undergoes thermal expansion. Gear spindles are engineered to simultaneously compensate for:

• Angular Misalignment: Up to 1.5°-2.5° during normal operation

• Parallel (Radial) Misalignment: Compensated through the tooth geometry as the hubs pivot

• Axial Misalignment: Accommodated by the axial play within the gear mesh and the telescopic spline assembly

This comprehensive compensation capability eliminates the need for ultra-precise static alignment and reduces stress on bearings, gearboxes, and drive motors throughout the mill train.

4.2 High Torque Density and Impact Resistance

Continuous tube rolling mills must transmit enormous torque to plastically deform steel at high temperatures. Gear spindles are designed for these heavy-load scenarios, offering compact structure with extremely high torque transmission relative to their volume. This high "torque density" is crucial for space-constrained narrow rolling mill stands. Furthermore, the all-metallic construction and optimized tooth profile provide excellent resistance to the severe impact loads experienced during tube entry and rolling.

4.3 High Transmission Efficiency

In energy-intensive continuous tube rolling operations, where multiple stands operate simultaneously over extended production campaigns, transmission efficiency directly impacts operating costs. Gear spindles provide high transmission efficiency through their positive-locking, all-metallic construction, minimizing power losses compared to alternative coupling technologies. Curved tooth gear couplings are recognized for their high efficiency, low noise, and long maintenance intervals.

4.4 Environmental Durability

The seamless tube continuous rolling environment is characterized by:

• High temperatures from the hot tube

• Cooling water sprays for roll cooling

• Airborne scale and dust from the rolling process

• Lubricants and hydraulic fluids from adjacent equipment

Gear spindles are engineered to withstand these conditions through robust housing designs and advanced sealing systems that ensure lubricant retention and prevent contaminant ingress.

4.5 Smooth Operation and Product Quality

Drive system vibrations in continuous tube rolling mills can directly affect tube quality, leading to wall thickness variations, surface defects, or dimensional inaccuracies. Gear spindles are designed for smooth operation with minimal vibration generation. The precision-engineered components provide:

• Reduced torsional vibrations that could otherwise cause dimensional variations

• Stable power transmission even under varying load conditions during tube entry and exit

• Improved tube surface quality through consistent torque application

• Enhanced dimensional accuracy by minimizing speed variations across multiple stands

4.6 Reliability and Service Life

The combination of robust design, quality materials, and proper maintenance results in exceptional service life. With appropriate care, gear spindles can provide years of reliable operation in continuous tube rolling service. However, common failure modes in continuous mill gear spindles include:

• Water ingress causing corrosion of springs and spline pairs, resulting in excessive runout and spline seizure

• Spring failure causing inability to retract, preventing proper engagement of roll-side internal and external teeth

• Poor sealing leading to lubricant leakage and rapid tooth wear

Advanced designs address these issues through improved sealing structures, corrosion-resistant materials, and enhanced spring mechanisms to achieve continuous in-service life of no less than 12 months.

5. Installation and Maintenance Considerations

5.1 Installation Requirements

Proper installation is critical for achieving design life and reliable operation in continuous tube rolling service:

• Ensure compatibility with shaft diameters and connection types

• Clean all mounting faces thoroughly before assembly

• Verify initial alignment within manufacturer-specified tolerances (typically ≤1/3 of the dynamic capacity)

• Use only high-strength fasteners meeting appropriate specifications

• Follow specified bolt tightening sequences and torque values

• Verify proper lubrication before initial operation

5.2 Lubrication Strategy

Lubrication is the single most important maintenance factor for gear spindle longevity, particularly in continuous tube rolling applications where continuous operation and environmental contamination pose challenges:

• Lubricant Type: High-quality extreme-pressure (EP) grease or oil suitable for high-temperature, high-load applications. Options include grease lubrication or forced thin oil lubrication systems.

• Application Frequency: Regular intervals based on operating hours, with more frequent lubrication in severe duty applications

• Seal Inspection: Regularly check seal integrity; replace damaged or aged seals immediately to prevent lubricant loss and contaminant ingress.

5.3 Regular Inspection and Condition Monitoring

Periodic inspection helps detect early signs of wear or damage before catastrophic failure occurs:

• Visual Inspection: Check seals for damage or leakage; inspect for any signs of distress, rust, or mechanical damage

• Vibration Monitoring: Observe for abnormal vibration during operation, which may indicate gear tooth wear or misalignment.

• Temperature Monitoring: Monitor housing temperatures for signs of lubrication failure or incipient damage

• Backlash Measurement: Monitor changes in gear mesh backlash, which may indicate tooth wear.

5.4 Advanced Design Improvements

Industry experience has identified several design improvements for continuous tube mill gear spindles:

• Integral Construction: Replacing separate components with integral designs to eliminate bolted connections and improve overall strength.

• Improved Sealing: Enhanced sealing structures to prevent water ingress and lubricant leakage.

• Enhanced Bearing Selection: Upgraded internal bearing specifications in safety couplings.

• Boss-Flange Structure Optimization: Improved flange designs to reduce vibration and axial movement.

6. Applications in Seamless Tube Continuous Rolling Mills

6.1 Main Drive Configurations

In seamless tube continuous rolling mills, gear spindles are primarily used in the following drive configurations:

• Motor-to-Gearbox Connections: Connecting the main drive motor to the reduction gearbox

• Gearbox-to-Roll Stand Connections: Transmitting power from the gearbox output to the roll stand, where most dynamic misalignment occurs

• Multi-Stand Synchronization: Ensuring coordinated power delivery across multiple closely spaced stands

6.2 Mill Types and Applications

Gear spindles find application across the full spectrum of continuous tube rolling equipment:

• MPM (Multi-Stand Pipe Mill): Continuous mandrel mills with multiple stands

• PQF (Premium Quality Finishing) Mill: Advanced three-roll continuous mills with retained mandrel technology

• Sizing and Reducing Mills: Final dimension control applications

• Stretch-Reducing Mills: Combined sizing and reducing applications

7. Conclusion

The gear spindle (curved tooth gear coupling) represents a proven, precision-engineered solution for the demanding requirements of seamless tube continuous rolling mills. Its unique combination of fully-crowned tooth geometry for optimized load distribution, exceptional torque density for heavy reduction, and comprehensive misalignment compensation (up to 1.5°-2.5° under load) makes it an indispensable component for the main drives of MPM, PQF, and sizing mills.

The defining features of gear spindles—fully-crowned teeth that maintain contact under misalignment, high torque capacity (15-30% higher than straight-tooth designs), robust construction for impact resistance, and environmental durability—make them the preferred choice for continuous tube rolling applications where maximum torque capacity and reliability are required.

According to industry standards such as JB/T 12473-2015, gear spindles for continuous tube rolling mills are available with permissible torques from 53 kN·m to 585 kN·m, making them suitable for a wide range of tube sizes and rolling conditions.

By understanding the mechanical principles of the curved tooth design, proper selection criteria based on application requirements, and rigorous maintenance requirements including proper sealing and lubrication, mill operators can maximize equipment longevity, minimize costly unplanned downtime, and achieve the consistent tube quality essential for modern seamless tube production. The gear spindle's proven reliability in metallurgical applications, combined with its ability to perform under continuous operation and dynamic misalignment conditions, makes it not merely a component, but a critical enabler of continuous tube mill productivity and product quality.
