An In-depth Explanation of Gear Spindles for Hot Rolled Strip Finishing Mills

An In-depth Explanation of Gear Spindles for Hot Rolled Strip Finishing Mills

1. Introduction: The Critical Power Transmission Component in Hot Strip Finishing

In the hot strip rolling process, the finishing mill represents the pinnacle of precision and complexity. This multi-stand train (typically F1 to F7) progressively reduces the transfer bar to final gauge with exacting thickness tolerances and superior surface quality. Operating at high speeds (up to 20 m/s) and elevated temperatures, the finishing mill demands a drive system capable of transmitting high power while accommodating dynamic misalignments and maintaining precise speed control across multiple stands.

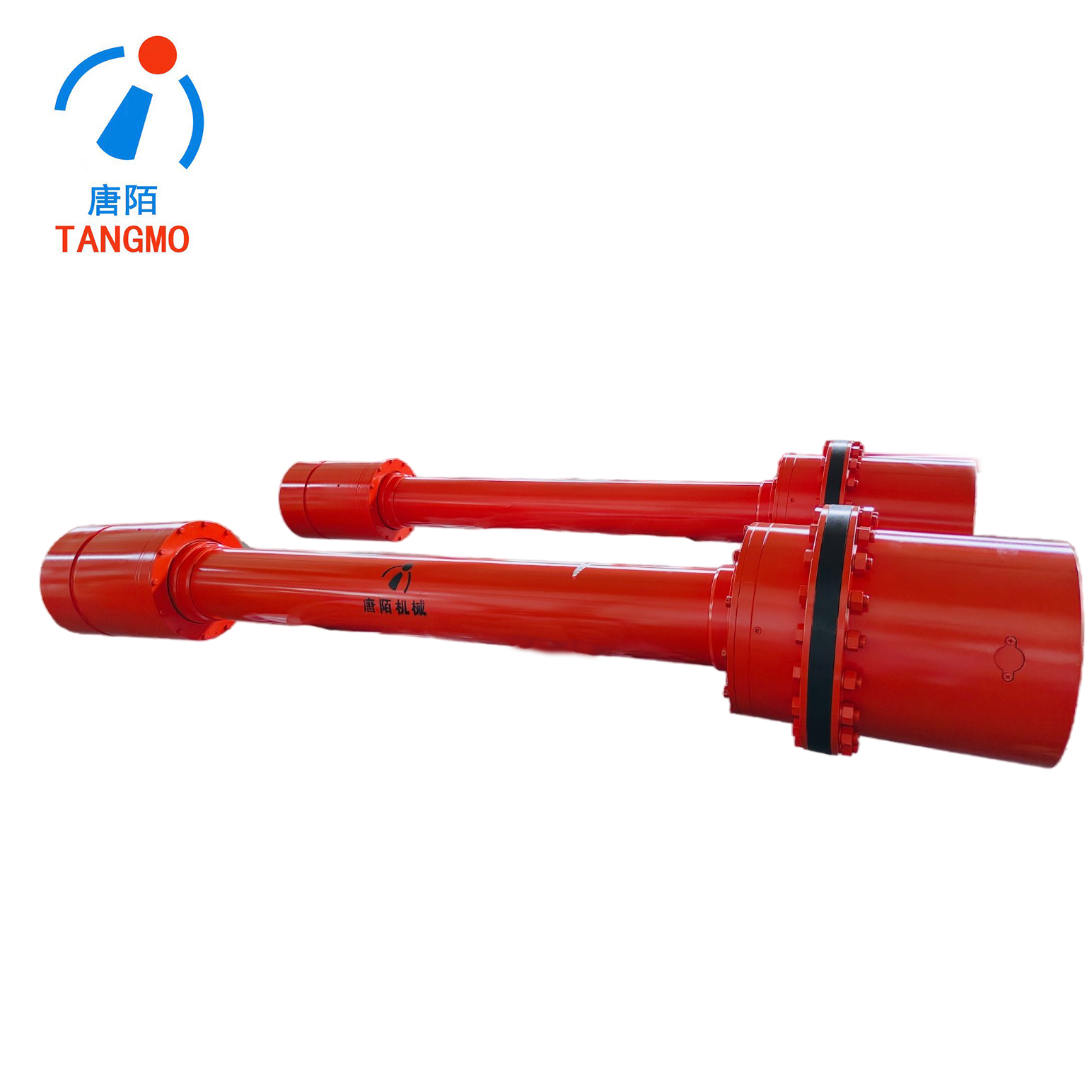

At the heart of this sophisticated power transmission system lies the gear spindle—a specialized gear coupling assembly engineered specifically for the unique challenges of modern hot strip finishing mill applications. The gear spindle, also known as a drum gear coupling or curved tooth gear spindle, represents an advanced power transmission solution that has become the preferred choice for finishing mill main drives where high torque capacity, angular flexibility, and reliable performance are essential. Unlike universal joint shafts that rely on cross bearings, gear spindles utilize precision-machined gear teeth to transmit torque while accommodating misalignment through the unique geometry of curved tooth profiles.

In modern high-speed, heavy-load finishing mills, drum gear spindles are widely used as key torque transmission components in the main drive system due to their high torque capacity, excellent multi-directional displacement compensation characteristics, and high transmission efficiency. According to industry statistics, in modern hot strip rolling mills constructed in 2022, approximately 78% of drive connections adopted drum gear couplings.

2. Mechanical Design and Construction for Hot Strip Finishing Mill Applications

2.1 Fundamental Structure and Key Components

The gear spindle for hot strip finishing mill applications consists of several precision-engineered components working in concert to transmit power reliably under demanding conditions:

• External Gear Hub (Inner Race): The half-coupling mounted on the drive shaft (motor output, gearbox output, or roll shaft) featuring externally cut teeth with a distinctive fully-crowned profile. The teeth are precision-ground to a spherical surface centered on the gear axis, creating the characteristic curved shape that enables angular misalignment compensation while maintaining full load-carrying capacity. For heavy-duty finishing mill applications, the external gear hub is typically manufactured from high-strength alloy steel such as 42CrMo with appropriate heat treatment.

• Internal Gear Sleeve (Outer Race): The mating component with internally cut gear teeth that mesh with the external gear hub. The sleeve encloses the gear meshing area and contains the lubrication system. The internal gear sleeve is also manufactured from high-quality alloy steel with heat treatment to ensure wear resistance and dimensional stability.

• Flange Connections: High-strength flanges with precision-machined mounting faces provide the interface to the motor shaft, gearbox, and mill roll shaft. Power is transmitted through a combination of end-face keys and friction between mating surfaces, secured by high-grade bolts.

• Shaft Assembly: The complete spindle includes the shaft body connecting the drive-side and roll-side couplings, often incorporating telescopic sections for axial compensation.

• Advanced Sealing Systems: Multi-barrier sealing arrangements protect the internal gear teeth from the hostile environment of the hot strip finishing mill, including cooling water, scale, and airborne particulates. Effective sealing is essential for maintaining lubricant retention and preventing contaminant ingress.

• Lubrication System: Integrated lubrication pathways deliver high-quality extreme-pressure lubricant to the gear meshing interfaces. Modern gear spindles for hot strip finishing mills typically employ forced thin oil lubrication systems that circulate oil through the gear mesh, providing superior cooling and wear protection.

2.2 The Fully-Crowned (Drum-Shaped) Tooth Geometry

The defining characteristic of the gear spindle for hot strip finishing mills is its drum-shaped gear design. This sophisticated engineering solution addresses the challenge of angular misalignment under high torque:

• Spherical Tooth Surface: The external teeth are machined into a spherical shape. When the two shafts have an angular offset, the teeth maintain line or surface contact across the flank, completely avoiding edge contact. The tooth profile features an arc shape along the tooth length, creating a "barrel" configuration when viewed from the tooth tip.

• Optimized Contact Pattern: Under load and angular misalignment—typically up to 0.5° to 1° during operation for hot strip finishing mill applications—the crowned geometry distributes contact stresses uniformly, eliminating the stress concentration at the tooth ends that plagues straight-tooth designs. The optimized drum-shaped design can reduce stress concentration factors by 30-40%.

• Increased Torque Capacity: Advanced fully-crowned tooth designs can increase torque capacity by 20% to 300% compared to conventionally designed gear teeth.

• Reduced Vibration: The optimized tooth geometry results in reduced system vibration, smoother roll operation, and lower shock loads, contributing to improved product quality. Field application data shows that mills employing drum-shaped gear couplings experience 40-50% reduction in vibration caused by roll axial movement.

• Wear Resistance: With forced thin oil lubrication, tooth surface wear is substantially reduced compared to grease lubrication. The circulating oil also carries away rolling heat and frictional heat from the teeth, effectively preventing reduction of the tooth material's allowable contact stress.

2.3 Material Specifications and Heat Treatment

The demanding finishing mill environment requires exceptional material properties to ensure long service life under continuous operation:

The gear teeth undergo surface hardening treatments—typically carburizing and quenching—to achieve optimal wear resistance and fatigue strength, with surface hardness typically exceeding HRC 58-62 for the gear tooth flanks and case depth of 1.2-2.0 mm.

2.4 Standardization: JB/T 13499-2018

Gear spindles for hot strip finishing mills are manufactured according to established industry standards. JB/T 13499-2018 "Heavy-duty drum-shaped gear spindles for hot strip finishing mill trains" provides comprehensive specifications for these critical components:

• Structure Types: Standardized configurations for different mill arrangements

• Basic Parameters: Defined torque ranges, dimensional series, and performance characteristics

• Technical Requirements: Material specifications, heat treatment, manufacturing tolerances

• Inspection Rules: Procedures for quality verification and acceptance

• Packaging and Storage: Standardized preservation requirements

This standard applies to internal circulation type heavy-duty drum-shaped gear spindles connecting the mill rolls and the gearbox output shaft in plate and strip rolling mill drive trains.

3. Why Gear Spindles Are Essential for Hot Strip Finishing Mills

3.1 Precision Angular Misalignment Compensation

Hot strip finishing mills experience significant misalignment conditions due to multiple closely spaced stands, thermal expansion of rolls and shafts, and structural deflection under load. Gear spindles are engineered to accommodate angular misalignment typically up to 0.5° to 1° during operation, with some designs capable of ±1° to ±3° per end.

This angular compensation capability is essential for finishing mill applications where:

• Rolls must be adjusted for different strip thicknesses

• Components undergo thermal expansion during continuous operation

• The mill housing deflects under rolling loads

• Multiple stands must maintain precise alignment for tension-free rolling

The drum-shaped gear coupling provides multi-directional compensation capability, simultaneously accommodating radial displacement typically of 0.5-1.5mm, angular deviation up to 0.5°-1°, and axial displacement.

3.2 Extreme Torque Capacity for Final Reduction

Hot strip finishing mills must transmit substantial torque for final reduction to achieve precise strip thickness. Gear spindles offer exceptional torque density, with advanced fully-crowned designs increasing torque capacity by 20% to 300% compared to conventional designs. For the most demanding applications, torque capacity can reach up to 65,000,000 in·lbs (approximately 7,350 kN·m).

This characteristic is particularly advantageous for finishing mill applications where:

• The drive must handle continuous rolling forces for final strip reduction

• Torque requirements vary significantly across the finishing train (early stands F1-F3 requiring higher torque)

• Space constraints around the mill stand limit available envelope for drive components

• Synchronization across multiple stands demands minimal torsional windup

3.3 High Transmission Efficiency and Energy Savings

In continuous hot strip mill operations, where multiple stands operate simultaneously over extended production campaigns, energy efficiency directly impacts operating costs. Optimized drum-shaped gear couplings achieve transmission efficiencies of 99.2% to 99.5% at speeds of 800-1200 rpm, with power losses reduced by over 30% compared to traditional couplings.

3.4 Smooth Operation and Product Quality

Drive system vibrations in finishing mills can directly affect strip quality, leading to thickness variations, surface defects, or flatness issues. Gear spindles are designed for smooth operation, with precision-ground teeth ensuring minimal backlash and consistent torque transmission. Field application data shows that mills employing drum-shaped gear couplings experience 40-50% reduction in vibration caused by roll axial movement, effectively improving strip thickness accuracy.

The optimized tooth geometry reduces vibration levels, contributing to:

• Improved strip surface quality through reduced chatter marks

• Enhanced thickness accuracy by minimizing speed variations

• Better flatness control through consistent power delivery

• Higher operating speeds enabled by smoother drive train dynamics

3.5 Superior Impact Resistance

Finishing mills experience significant impact loads during strip entry and transient conditions. The drum-shaped gear coupling's multi-tooth simultaneous meshing characteristic effectively buffers the impact from sudden rolling force fluctuations. Under identical impact loads, the instantaneous peak stress of drum-shaped gear couplings is 15-20% lower than that of straight-tooth couplings.

3.6 Environmental Durability and High-Temperature Operation

The hot strip finishing mill environment presents challenging conditions:

• Radiant heat from the hot strip (temperatures up to 900-1100°C)

• Cooling water sprays for roll cooling

• Airborne scale and dust from the rolling process

• Lubricants and hydraulic fluids from adjacent equipment

Gear spindles are engineered to withstand these conditions through robust housing designs, advanced sealing systems, and high-strength materials with appropriate heat treatment. Special material treatments enable stable operation at ambient temperatures of 150-200°C, fully meeting the working temperature requirements of finishing mills.

3.7 Standardized Configurations and Maintainability

The standardization of gear spindles through JB/T 13499-2018 facilitates high availability, ease of replacement, and cost-effective warehousing through standardized retrofit parts. Modular designs enable replacement times as short as 4-6 hours, significantly reducing maintenance downtime.

4. Installation and Maintenance Considerations

4.1 Installation Requirements

Proper installation is critical for achieving design life and reliable operation in finishing mill service:

• Ensure compatibility with shaft diameters and connection types

• Clean all mounting faces thoroughly before assembly

• Verify initial alignment within manufacturer-specified tolerances (typically ≤1/3 of allowable misalignment)

• Use only high-strength fasteners meeting appropriate specifications

• Follow specified bolt tightening sequences and torque values

• Verify proper lubrication before initial operation

• For telescopic designs, ensure proper phasing (alignment of marks) for constant velocity rotation

4.2 Lubrication Strategy

Lubrication is the single most important maintenance factor for gear spindle longevity. For forced oil lubrication systems:

• Oil Type: High-quality extreme-pressure (EP) gear oil suitable for high-temperature, high-load applications

• Circulation System: Internal circulation oil lubrication provides superior cooling and wear protection

• Filtration: Regular oil filtration to remove wear particles and maintain oil cleanliness

• Oil Analysis: Periodic oil sampling to detect wear metals and monitor oil condition

The forced oil circulation system also carries away heat from the rolls and gear teeth, preventing reduction of the tooth material's allowable contact stress and ensuring continuous mill operation without shaft failure.

4.3 Regular Inspection and Condition Monitoring

Periodic inspection helps detect early signs of wear or damage before catastrophic failure occurs:

• Visual Inspection: Check seals for damage or leakage; inspect for any signs of distress, rust, or mechanical damage

• Vibration Monitoring: Observe for abnormal vibration during operation, which may indicate gear tooth wear or misalignment

• Temperature Monitoring: Monitor housing temperatures for signs of lubrication failure or incipient damage

• Backlash Measurement: Monitor changes in gear mesh backlash, which may indicate tooth wear

• Bolt Tightness: Verify that all flange bolts remain properly torqued

4.4 Common Failure Modes and Prevention

Industry analysis has identified several common failure modes for finishing mill gear spindles:

• Oil Leakage: Caused by seal failure; prevention through regular seal inspection and replacement

• Bearing Seizure: Caused by inadequate lubrication or contamination; prevention through proper lubrication and filtration

• Gear Tooth Wear: Caused by excessive misalignment or overload; prevention through maintaining alignment within specified limits and avoiding overload conditions

• Spline Wear: Caused by inadequate lubrication or fretting; prevention through regular spline lubrication

5. Applications in Hot Strip Finishing Mills

Gear spindles for hot strip finishing mills are primarily used in the following drive configurations:

• Motor-to-Gearbox Connections: Spindles connecting the main drive motor output shaft to the reduction gearbox input shaft

• Gearbox-to-Roll Stand Connections: Spindles transmitting power from the reduction gearbox output shaft to the roll stand

• Multi-Stand Synchronization: Ensuring coordinated power delivery across the entire finishing train (F1 to F7)

The gear spindle is the critical connection in the drive train, and the performance and uptime of rolling mills rely on these spindles as the most critical equipment of the drive system.

6. Conclusion

The gear spindle (drum-shaped gear coupling) represents a proven, precision-engineered solution for the demanding requirements of hot strip finishing mills. Its unique combination of fully-crowned tooth geometry for optimized load distribution, exceptional torque capacity for final reduction, and robust construction for reliable operation makes it an indispensable component for modern hot strip rolling applications.

The defining features of gear spindles—fully-crowned teeth that maintain contact under misalignment (0.5°-1°), high transmission efficiency (99.2%-99.5%), advanced forced oil lubrication for superior cooling and wear reduction, and standardized configurations for ease of replacement—make them the preferred choice for finishing mill main drives where maximum torque capacity, smooth operation, and reliability are required.

As industry data confirms, in modern hot strip rolling mills, approximately 78% of new installations specify drum-shaped gear couplings as the preferred drive connection. The proven vibration reduction of 40-50% and the substantial improvement in equipment reliability demonstrate the significant operational benefits of this technology.

By understanding the mechanical principles of the drum-shaped tooth design, proper selection criteria based on application requirements (JB/T 13499-2018), and rigorous maintenance requirements including proper lubrication and seal integrity, mill operators can maximize equipment longevity, minimize costly unplanned downtime, and achieve the consistent strip quality essential for modern hot strip production. The gear spindle's proven reliability in metallurgical applications, combined with its ability to perform under continuous operation and dynamic misalignment conditions, makes it not merely a component, but a critical enabler of finishing mill productivity and product quality.
